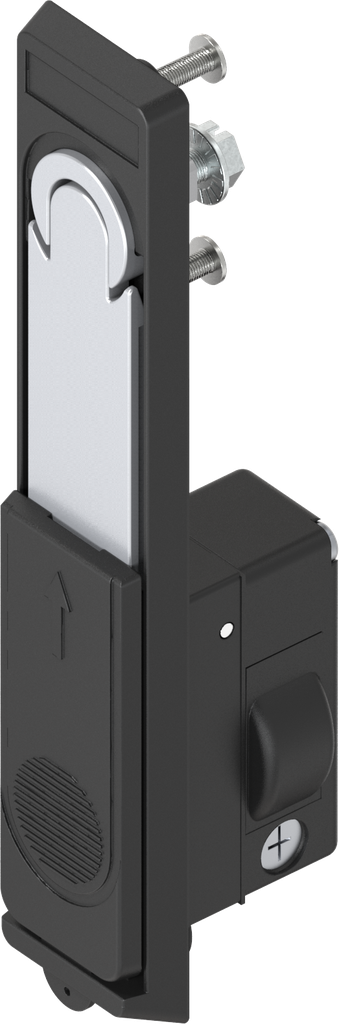

Locking set with insert double bit 5, Polyamide GF black

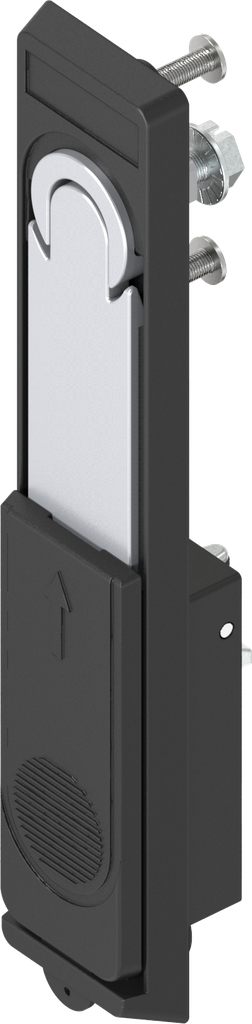

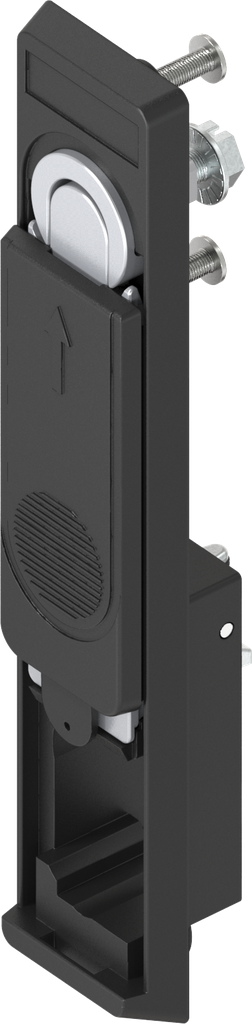

Swinghandle for locking set, Zinc die and polyamide black
Product information:
Logo recess: 27 x 8 x 0.5
Multicolour pad print possible
Swinghandle without locking set
Internal Reference:
2100-U1
Product Type:
Swinghandle, Lifthandle
Program:
2100
Catalog sheet:
3H-320
Material of the module :
Zinc die and polyamide
Surface of the module:
black

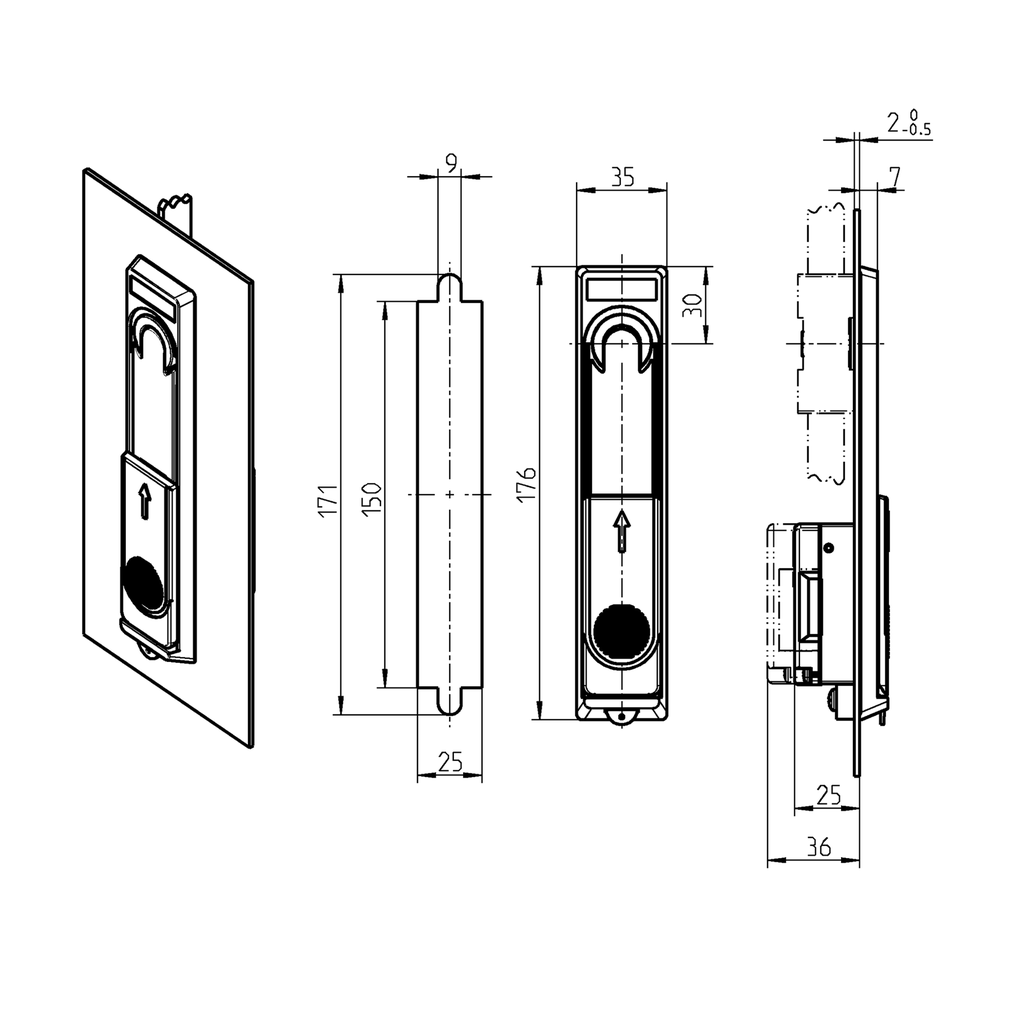

Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Article with property rights:
Yes
Mounting Positions :
Inside the sealing,Outside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2 mm
Sealable:
Yes
Locking set modular technology:

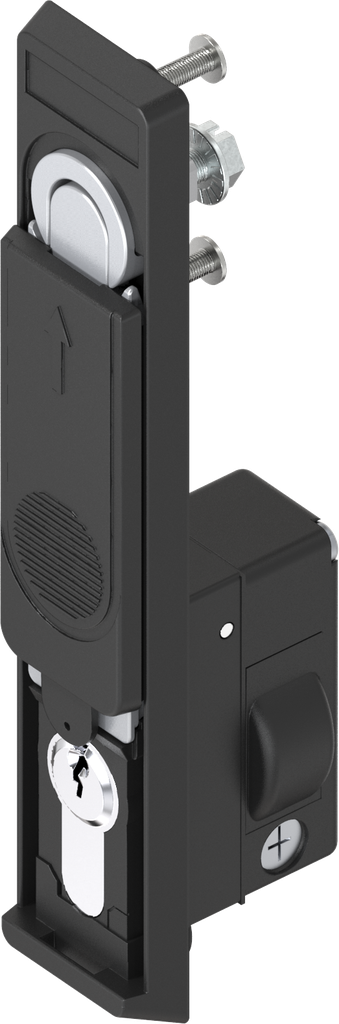

Profile half cylinder with cap, A = 30, mounted at the dish,ASSA cylinder with cap, mounted at the dish,KABA cylinder with cap, mounted at the dish,Round cylinder with cap, mounted at the dish,Insert with cap, mounted at the dish,Push button with cap, mounted at the dish
locking set cover:
Yes
Swivel Handle:
7 mm
Pan Handle Length:
176 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Rod control,Bearing bush with cam
