Locking set with insert triangular 8, Polyamide GF black
Locking set with insert triangular 8, Polyamide GF black
Locking set with insert hexagon female SW 10, Polyamide GF black
Locking set with insert hexagon female SW 10, Polyamide GF black

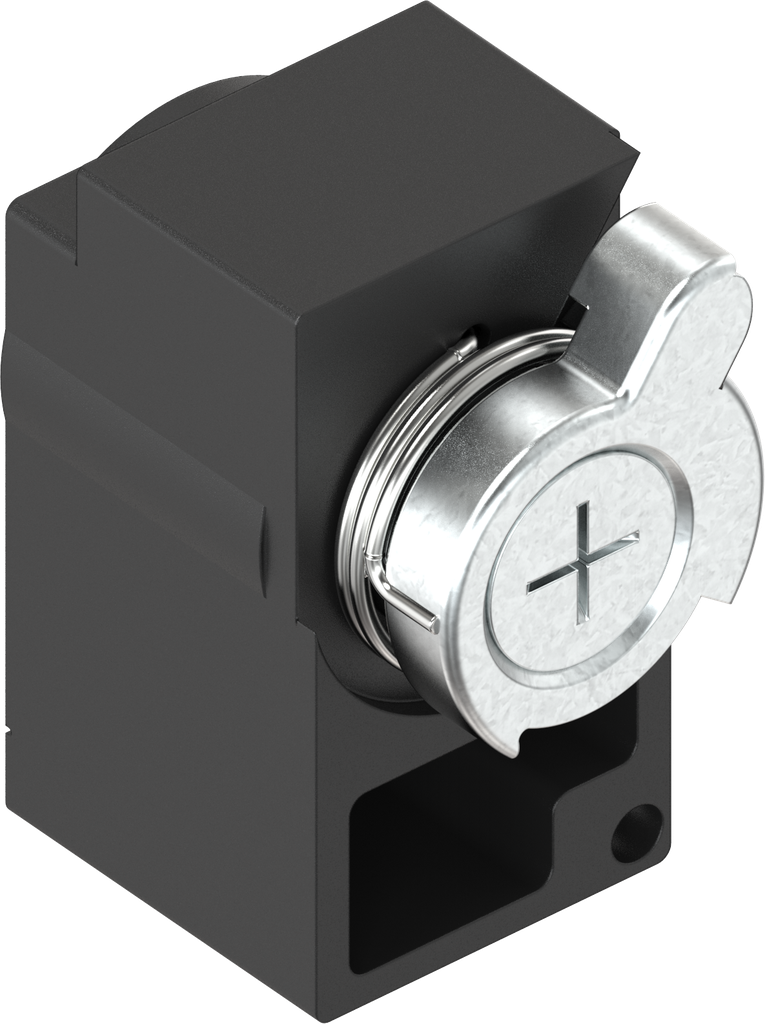

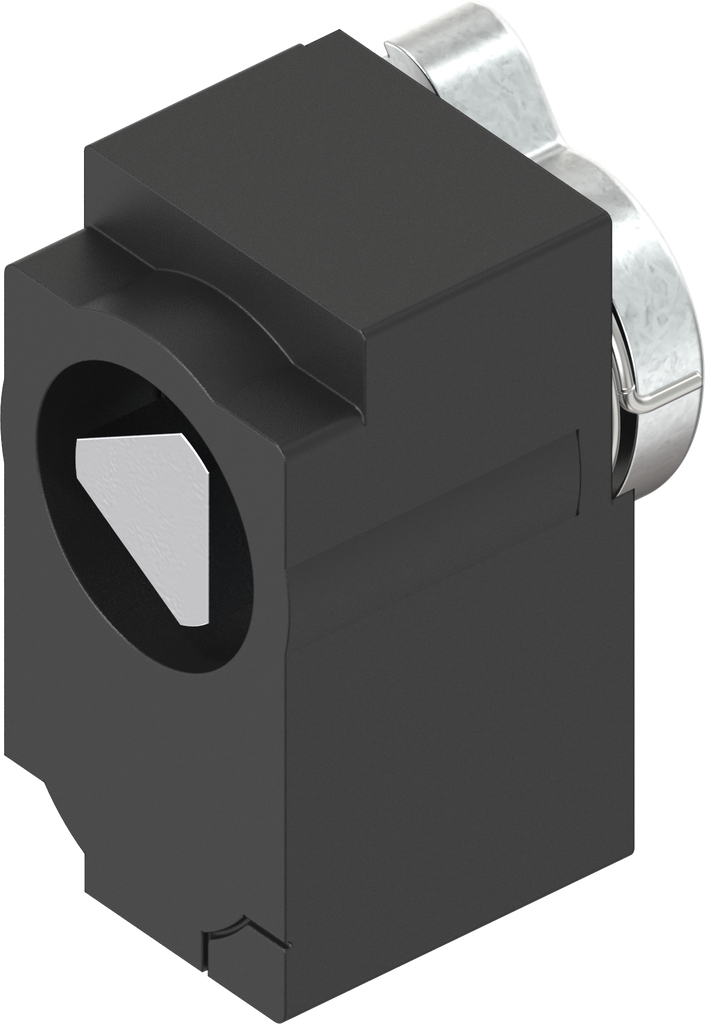

Locking set with insert triangular 10, Polyamide GF black; 2100-B22

https://www.emka.com/products/2100-b22 https://www.emka.com/web/image/product.template/234028/image_1920?unique=e8209a7

    This combination does not exist.

    Contact Us

    Function:

    Insert is spring loaded
    Internal Reference: 2100-B22
    Product Type: Locking set
    Program: 2100
    Catalog sheet: 3XA-240
    Material of the module : Polyamide GF
    Surface of the module: black
    Article with property rights: Yes
    Type of actuation: Triangular 10
    Installation Position of Block: Dish

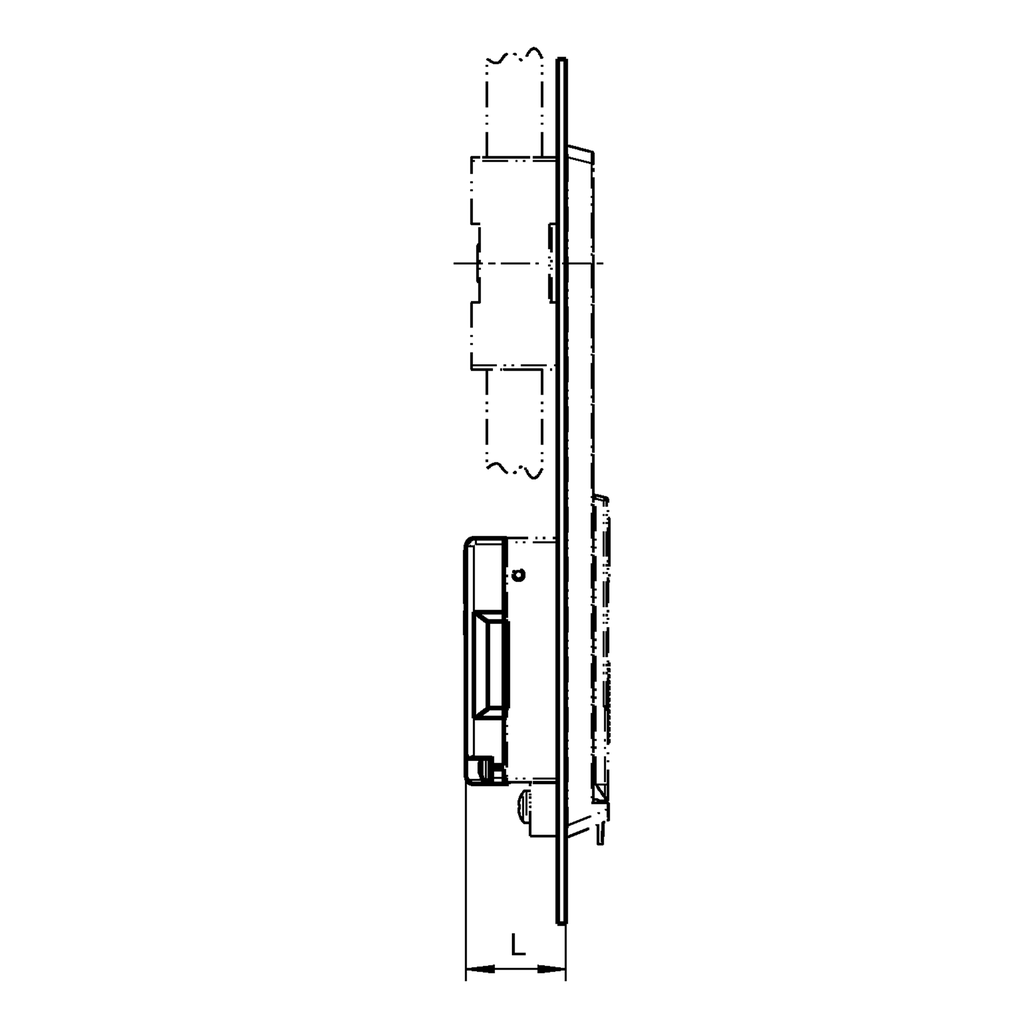

    Cap dimension L: Program 2400 = 20,Program 1180 = 21.5,Program 1190 = 29.5
    Locking set: Insert
    No Specifications
    View All Products
    Keys
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
