Compression latch left with optical opening indicator, Stainless steel AISI 316
Compression latch left with optical opening indicator and cover with red pad printing, Stainless steel AISI 316

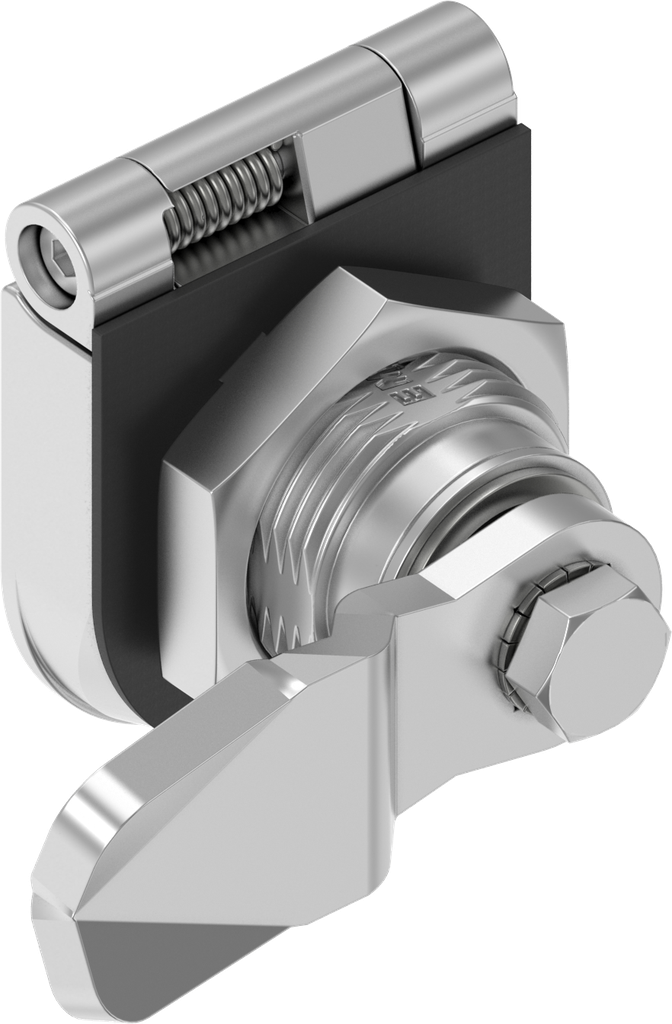

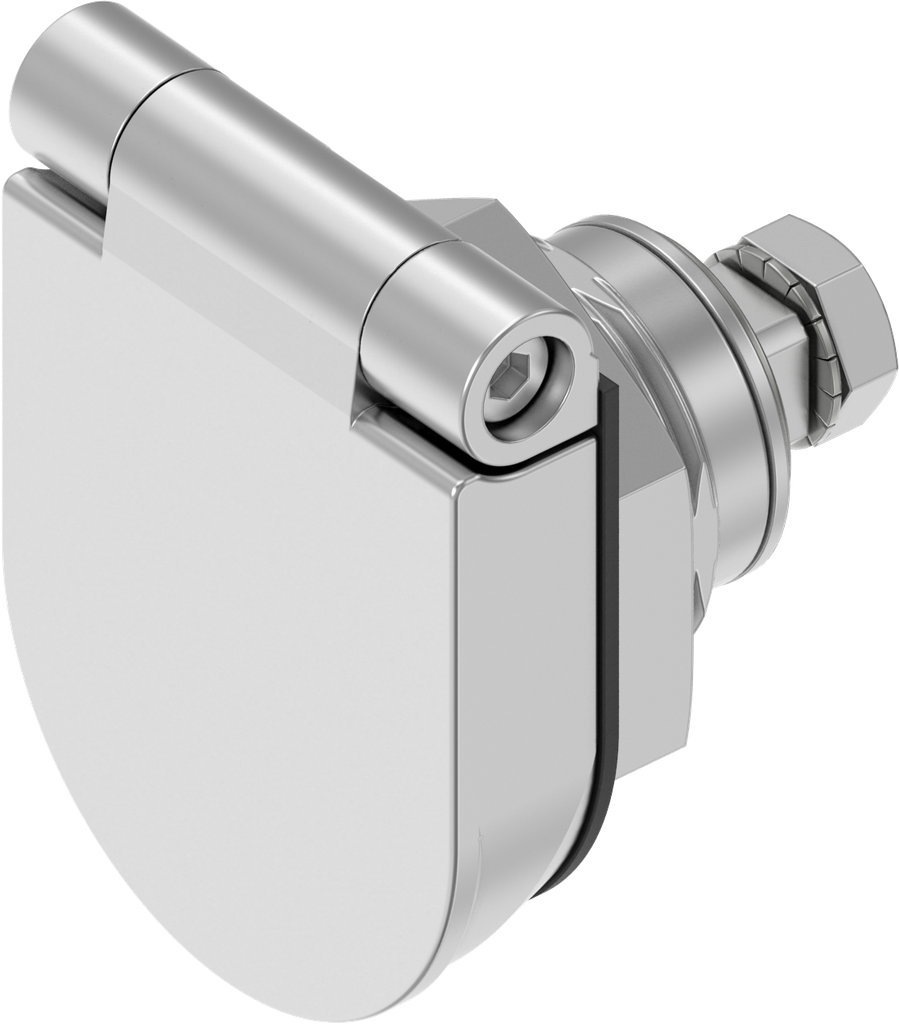

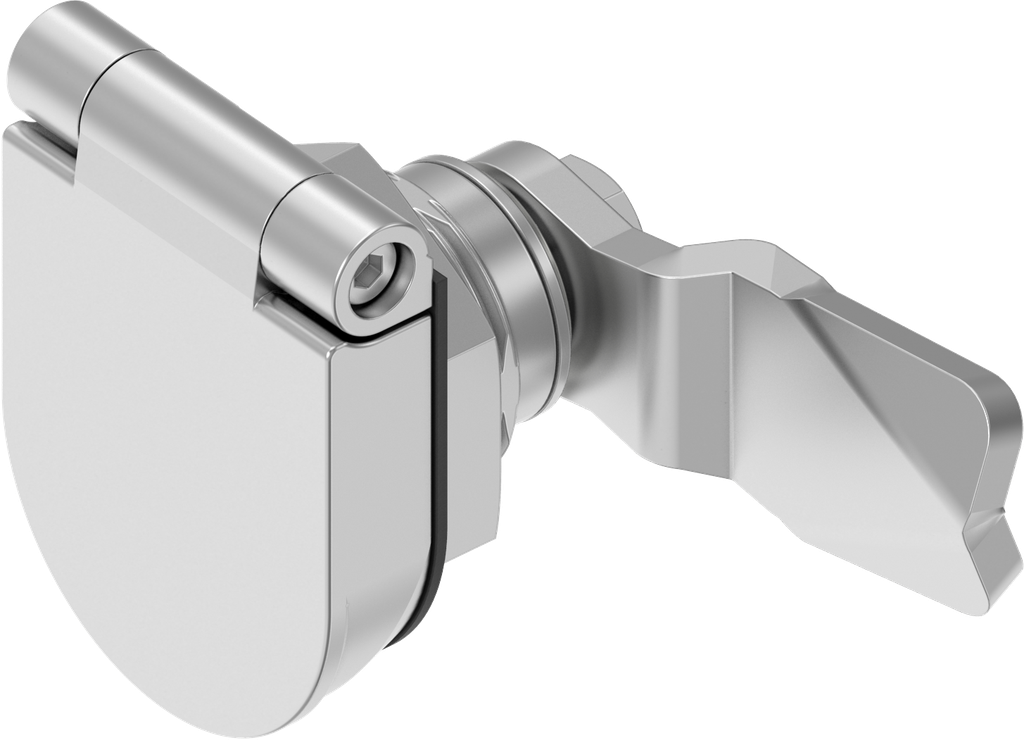

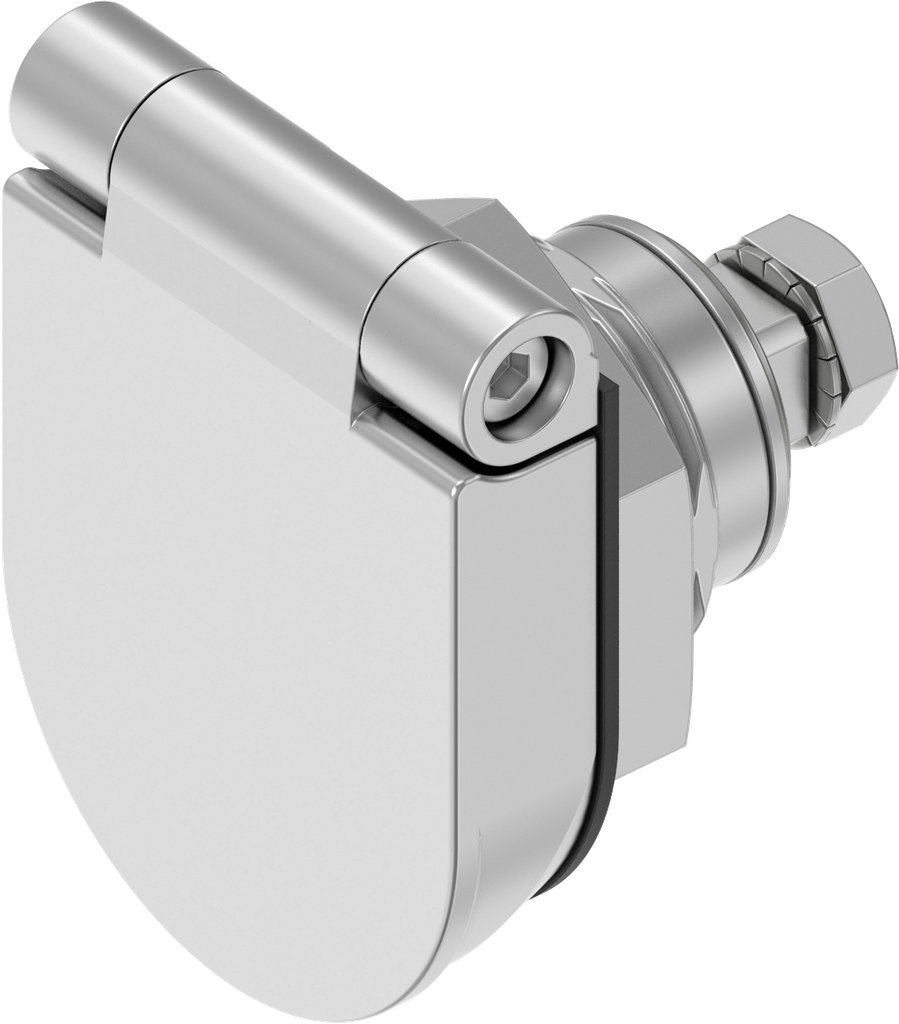

Compression latch with optical opening indicator and cover, right version, Stainless steel AISI 316; 1500-U776-REPH
with stainless steel nut
Product Benefits:

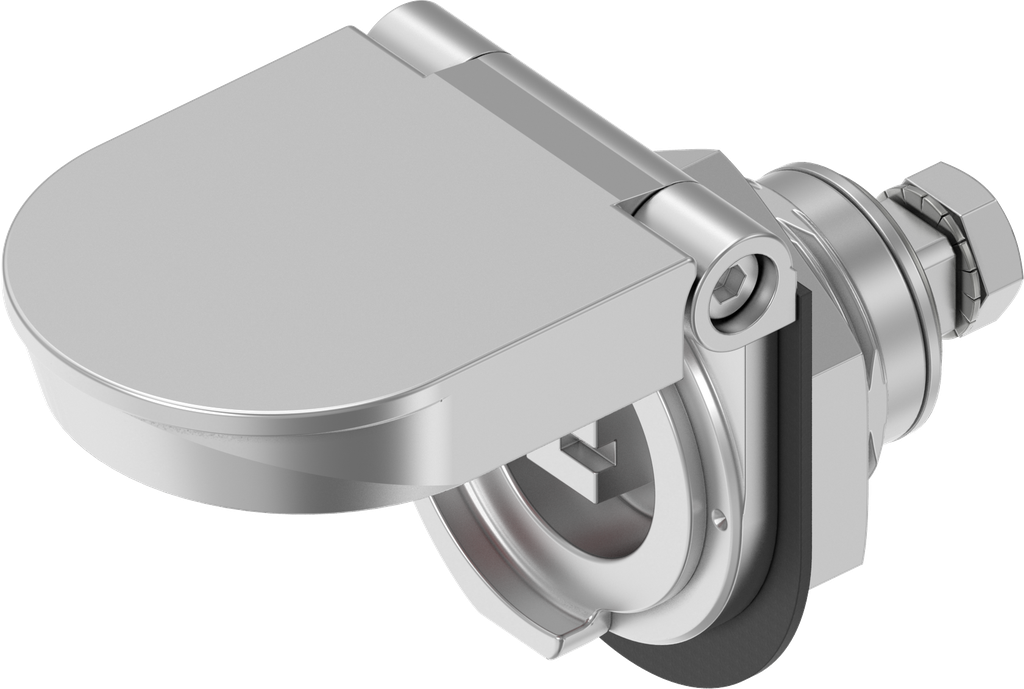

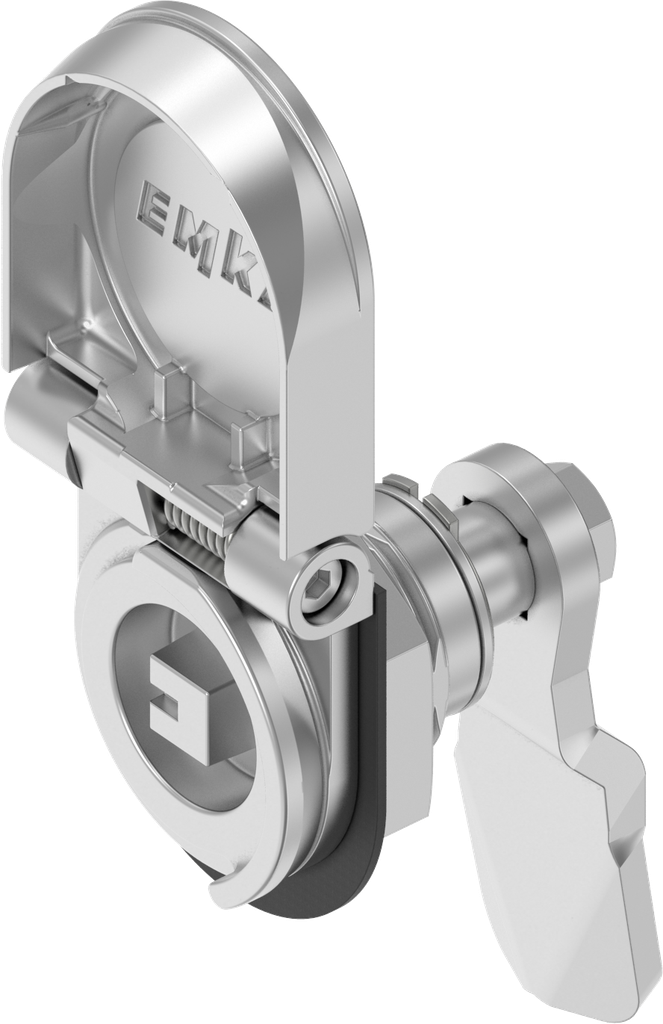

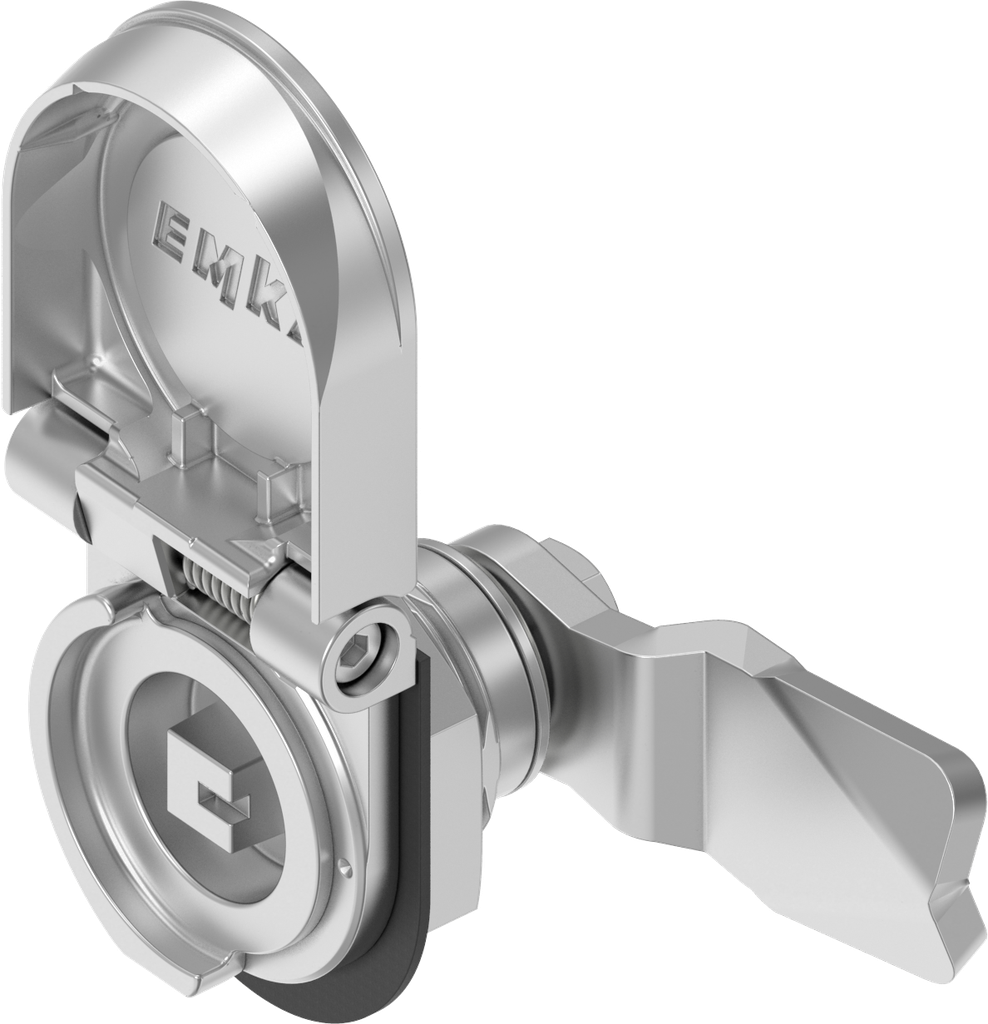

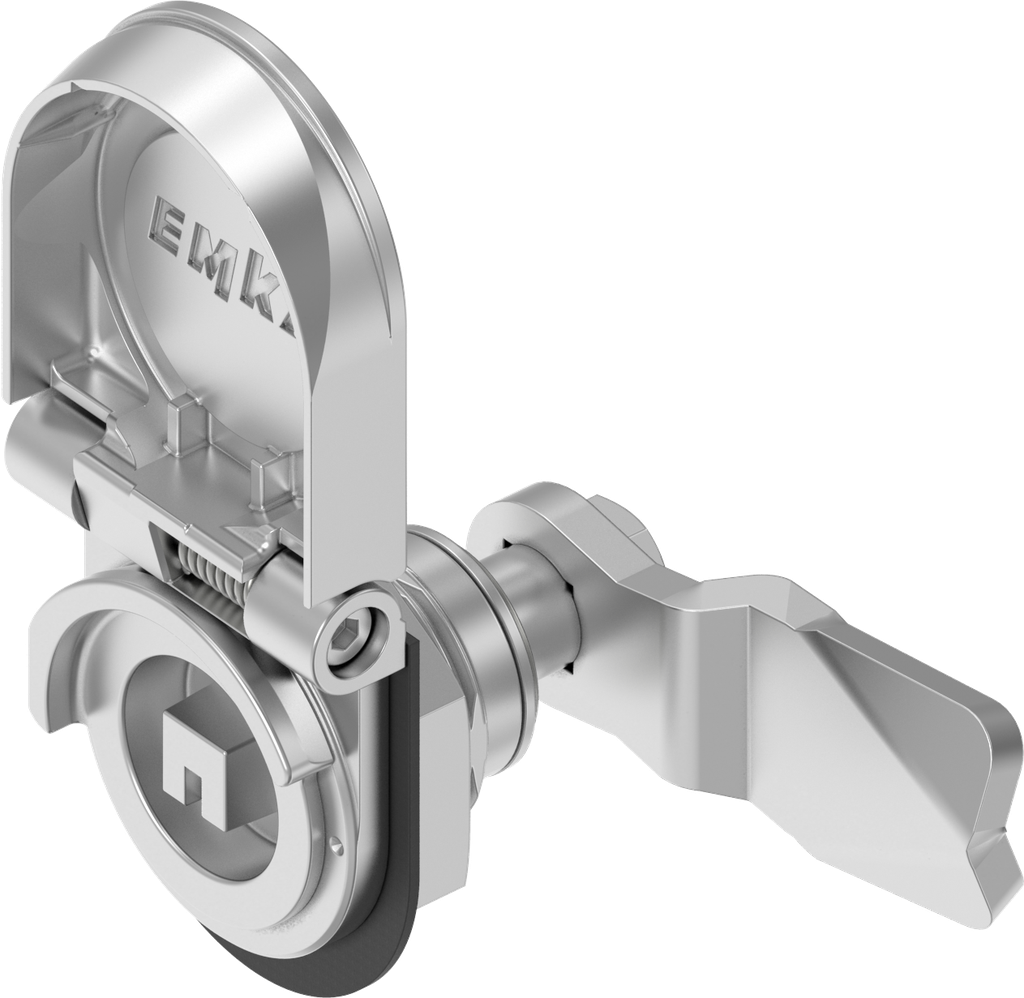

- Visual opening indicator, clearly visible due to 90° open flap when uncompressed
- The flap closes automatically when compressed
- Integrated dust cap
- The flat seal cushions the flap and prevents damage to the door
- Standard cut out Program 1500
- Patent pending
Product information:
The compression latch is designed to be vibration-proof as such.
Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1500-U776-REPH
Product Type:
Quarter turn
Program:
1500
Catalog sheet:
1D-420
Material of the module :
Stainless steel AISI 316
Number of Possible Locking Points:
1 point
Article with property rights:
Yes
Fixing type of housing :
nut fixing
Type of actuation:
Square 8 with marking
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Housing Head Shape:
Special form

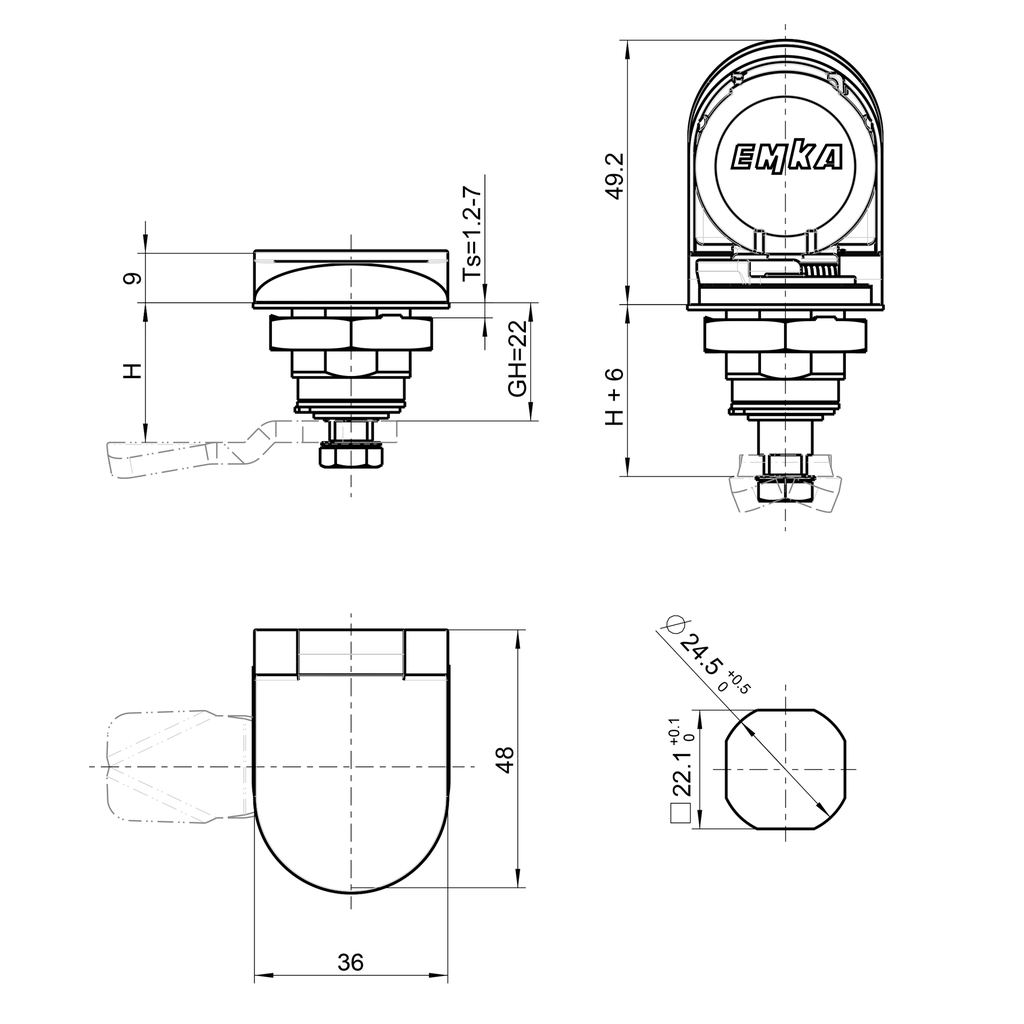

Housing Head Size:
48 x 36 x 9 mm
GH Mass:
22 mm
Compression Value :
6 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
7 mm
Locking set:
Insert
Door Version :
Right
Locking components:
Cam
Quarter turn types:
Compression latch with insert
No Specifications
