Flat rod with notch for small bending area bottom, Steel zinc-plated

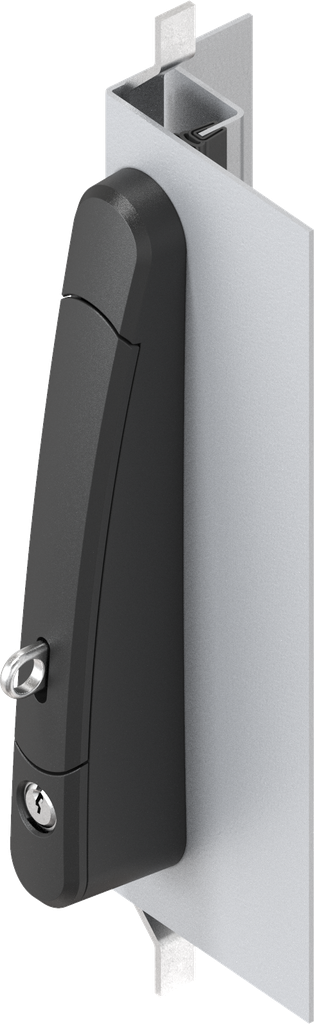

Lifthandle for small bending area, Polyamide GF black

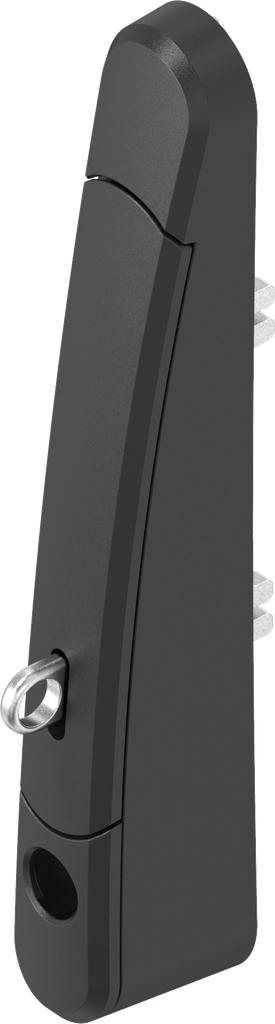

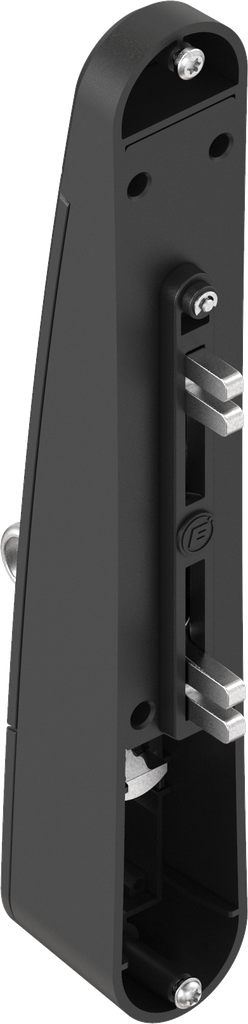

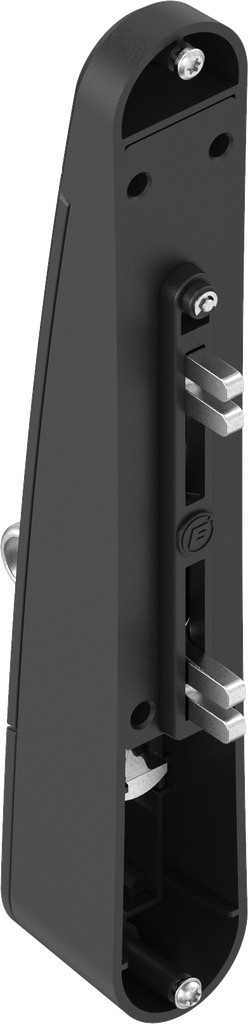

Lifthandle for padlock for small bending area, Polyamide GF black; 1390-U2
for locking sets with profile half cylinder, round cylinder and inserts
Product Benefits:
- Bi-directional lifthandle
- Variable positioning of the rods depending on hinge fixing
- Small cut out due to outside handle mechanism
- Innovative new and well-priced technology
- Attractive design
- Larger clearance due to narrow bending 33 x 25 mm or 37 x 25 mm
- Patented
Product information:
Rod movement is bi-directional

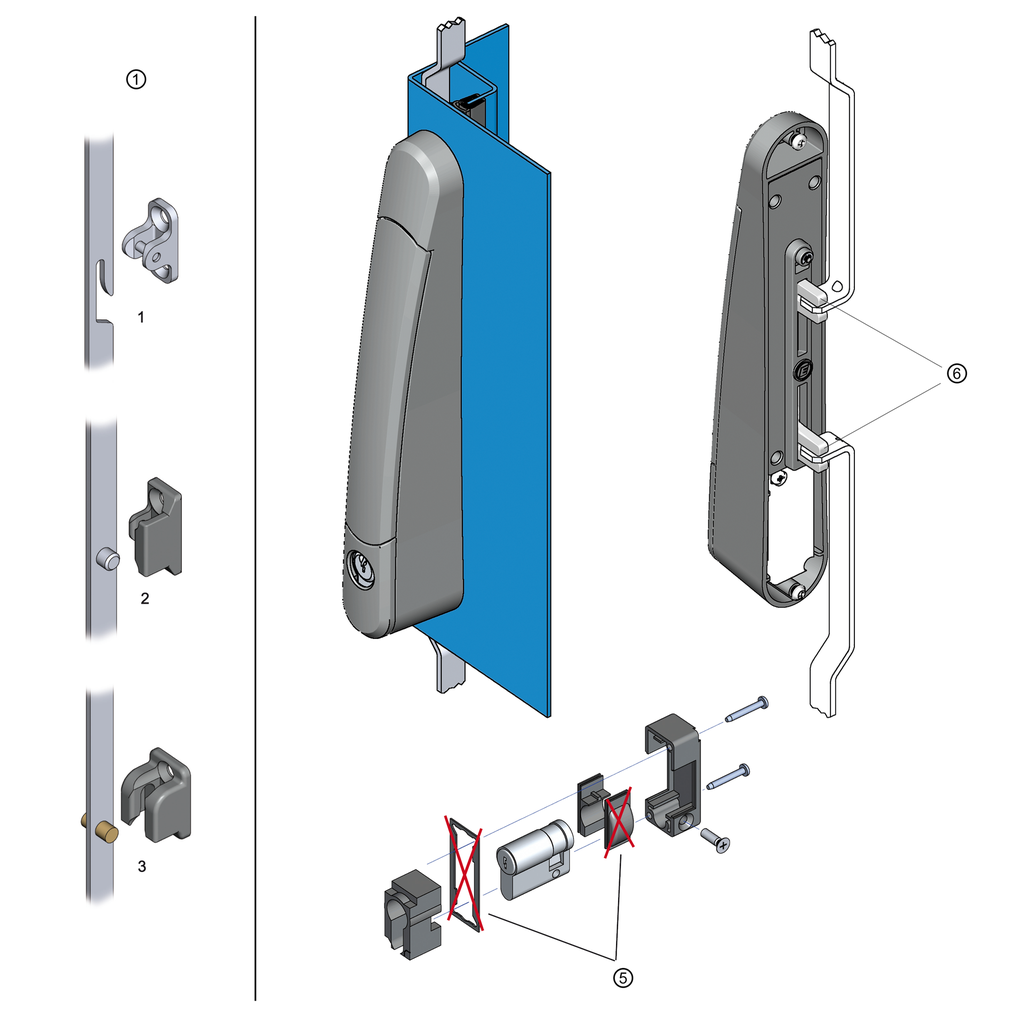

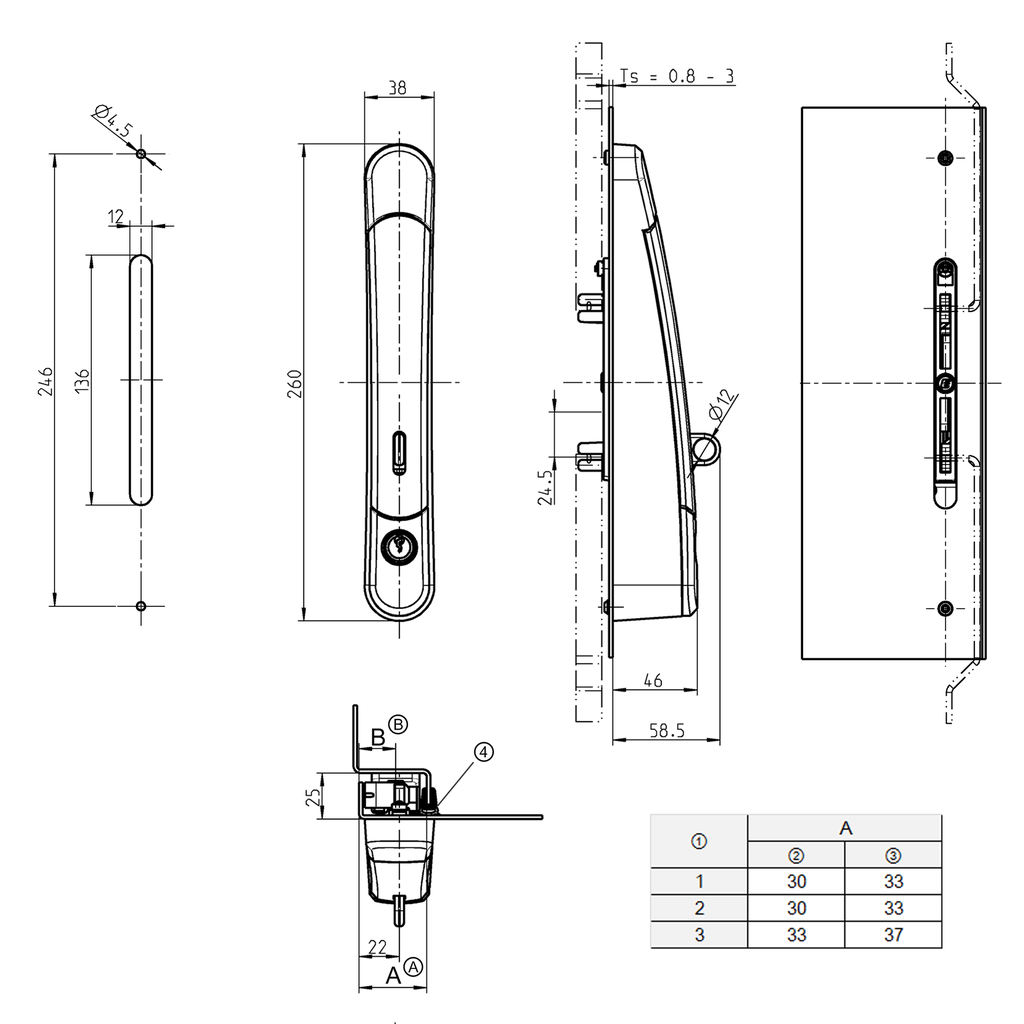

Ⓐ = The values in the table for dimension A with seal refer to the seal 1011-10 The values for dimension A are different for other seals.
Ⓑ = Dimension B should have the same value as the fixing dimension of the hinge bracket if the door is to be used right or left. Dimension B depends on the hinge to be used.
① = Locking type
② = Without seal
③ = With seal
④ = Seal example: 1011-10
⑤ = Seal and seal piece with "bulge" are not used for this assembly
⑥ = Variable rod control
Assembly instruction:
Attention:
Locking set for ASSA cylinder, KABA cylinder and push button cannot be installed!
Internal Reference:
1390-U2
Product Type:
Swinghandle, Lifthandle
Program:
1390
Catalog sheet:
3FA-150
Material of the module :
Polyamide GF
Surface of the module:
black
Dimension A, Variable:
25 mm
Number of Possible Locking Points:
2 points, 4 point, More than 4 points available on request
Number of Locking:
One locking set and for padlock
Article with property rights:
Yes
Mounting Positions :
Outside the sealing
For small bending area:
Yes
Handle Art(1):
Lifthandle
With integrated rod control / 3-point cam:
Yes
Suitable for door thickness from:
0.80 mm
Suitable for door thicknesses up to:
3 mm
Locking set modular technology:
Profile half cylinder with cap, A = 30, mounted at the dish,Round cylinder with cap, mounted at the dish,Insert with cap, mounted at the dish
Swivel Handle:
58.5 mm
Pan Handle Length:
260 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Integrated rod control
Padlock Art:
Padlock with shackle dimension Ø 12
No Specifications
