Flat rod with single roller for small bending area, Steel zinc-plated
Flat rod with single roller for small bending area, Steel zinc-plated
Flat rod with double roller for small bending area, Steel zinc-plated
Flat rod with double roller for small bending area, Steel zinc-plated

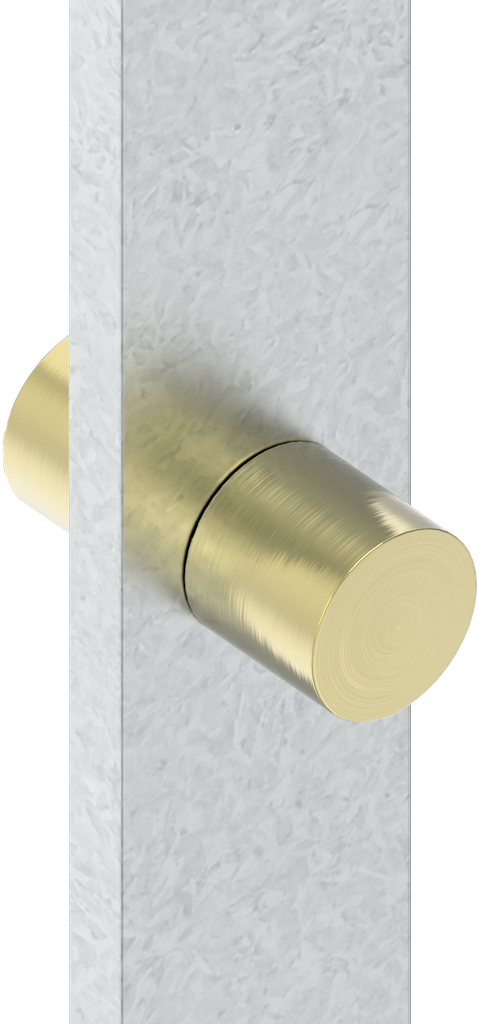

Flat rod with double roller for small bending area, Steel zinc-plated; 1390-U11-03

https://www.emka.com/products/1390-u11-03 https://www.emka.com/web/image/product.template/232383/image_1920?unique=f86255a


    This combination does not exist.

    Outside the sealing

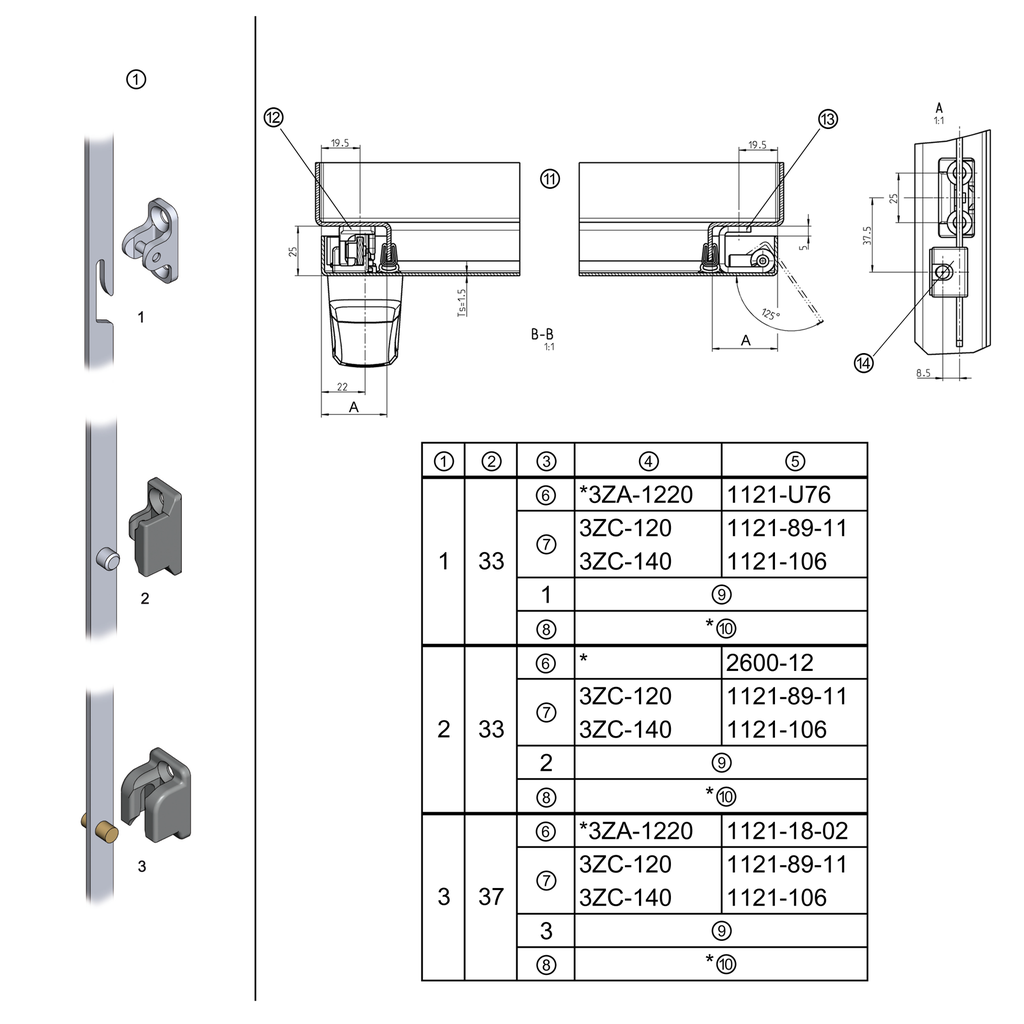

    Product information:

    ① = Locking type
    ② = Dimension A
    ③ = Part
    ④ = Catalogue page
    ⑤ = Part no.
    ⑥ = Catch
    ⑦ = Rod guide
    ⑧ = Hinge
    ⑨ = See flat rod
    ⑩ = Hinge suitable for locking types 1, 2 and 3
    - 125° Hinge 4A-136
    - 180° Hinge (bottom) 4A-140
    - 180° Hinge 4A-145
    - 180° Hinge (bottom) 4A-170
    - 180° Hinge (26 mm door return) 4A-210
    - 180° Hinge 4A-215
    ⑪ = Combination example
    ⑫ = Locking type 2
    ⑬ = e.g. 120° Hinge 1031-U12 see catalogue page 4A-136
    ⑭ = e.g. Rod guide 1121-106

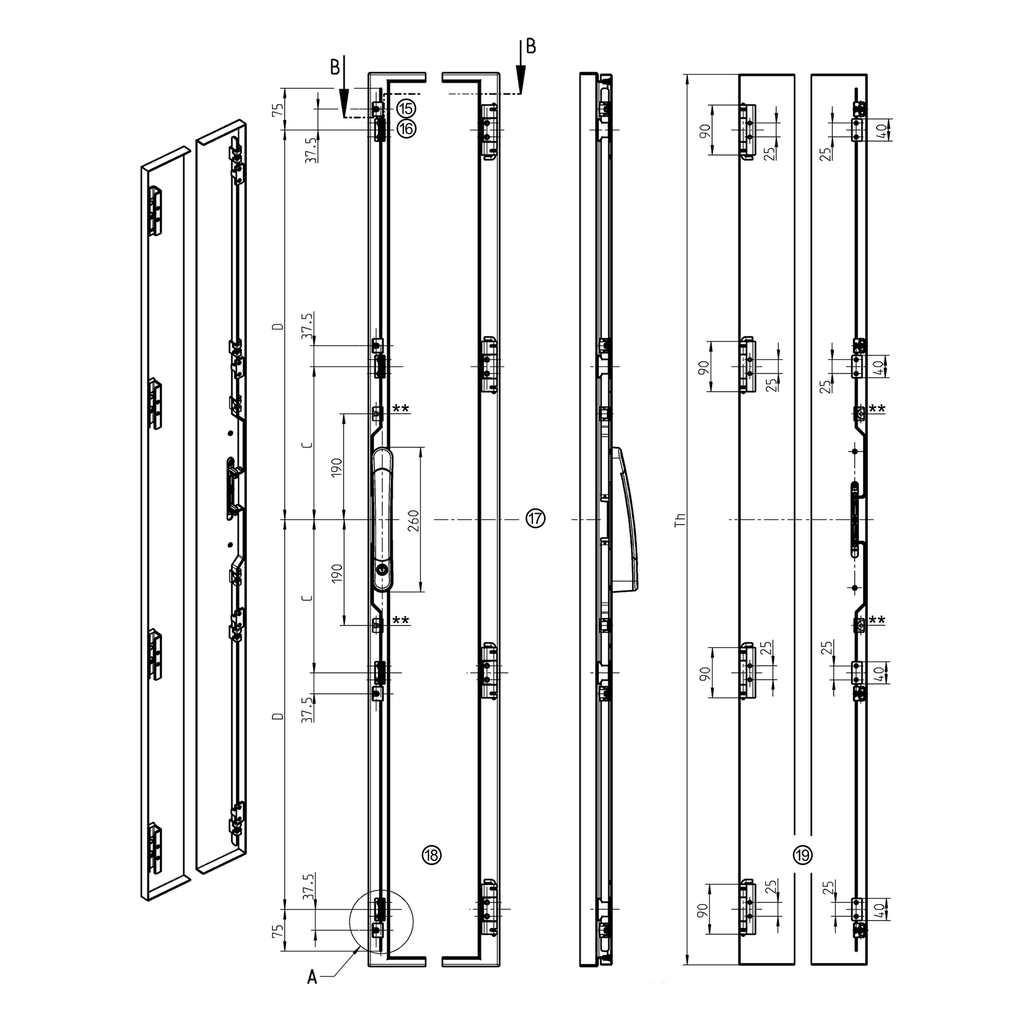

    ⑮ = Rod guide centre
    ⑯ = Catch centre
    ⑰ = Door centre
    ⑱ = Depicted without door
    ⑲ = Door depicted from inside

    * Fixing with countersunk screws according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047

    ** Additional rod guides required for door height up to 1600 mm

    Stroke of rod is bi-directional

    Internal Reference: 1390-U11-03
    Product Type: Rod
    Program: 1390
    Catalog sheet: 3ZA-610
    Material of the module : Steel
    Surface of the module: zinc-plated
    Connecting rod position: Outside the sealing, top or bottom
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    C Dimension:
    D Dimension: 450
    Mounting Positions : Outside the sealing
    Flat Bar Outside: Flat rod with double roller
    For Door Height: 1200-1600
