Flat rod with single roller for small bending area, Steel zinc-plated
Flat rod with single roller for small bending area, Steel zinc-plated
Flat rod with double roller for small bending area, Steel zinc-plated
Flat rod with double roller for small bending area, Steel zinc-plated

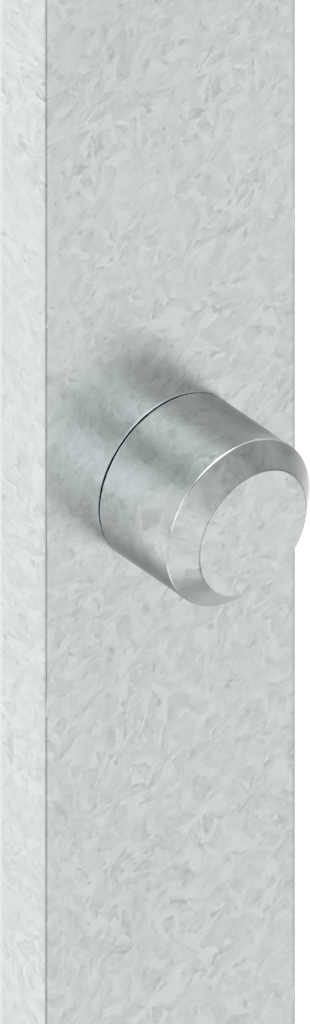

Flat rod with single roller for small bending area, Steel zinc-plated; 1390-U10-05

https://www.emka.com/products/1390-u10-05 https://www.emka.com/web/image/product.template/232380/image_1920?unique=f86255a

    This combination does not exist.

    Outside the sealing
    Contact Us
    Internal Reference: 1390-U10-05
    Product Type: Rod
    Program: 1390
    Catalog sheet: 3ZA-610
    Material of the module : Steel
    Surface of the module: zinc-plated
    Connecting rod position: Outside the sealing, top or bottom
    Number of Possible Locking Points: 2 points

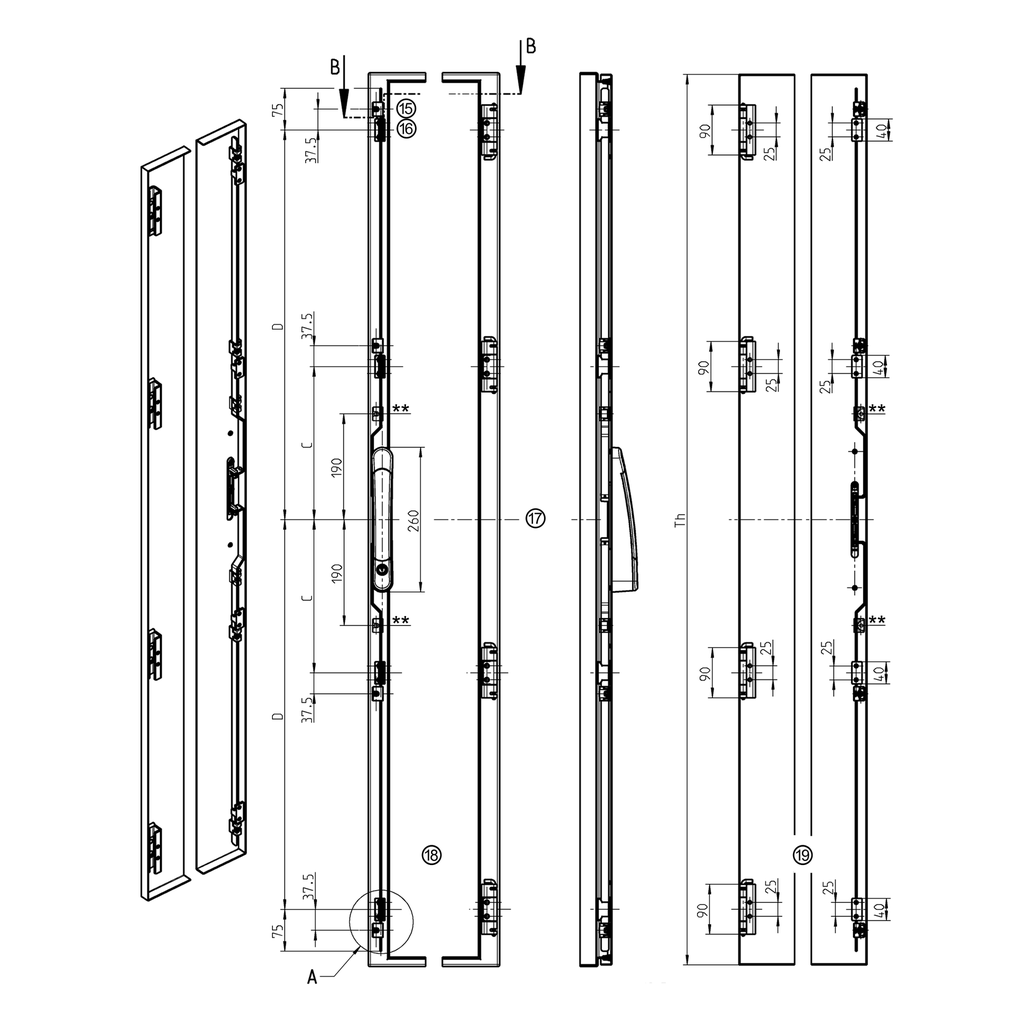

    C Dimension: 275
    D Dimension: 700
    Mounting Positions : Outside the sealing
    Flat Bar Outside: Flat rod with double roller
    For Door Height: 1600-1900
    No Specifications
    View All Products
    Rod guide
    Catch
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
