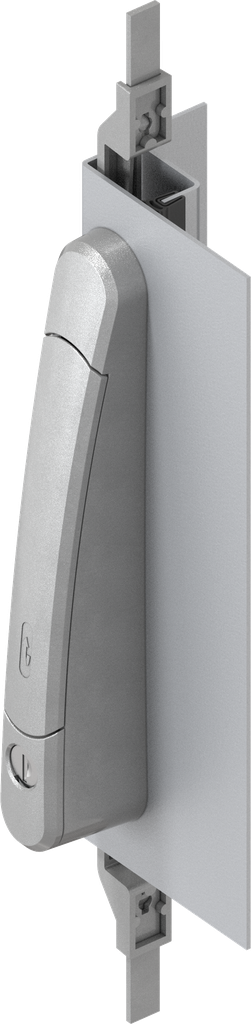

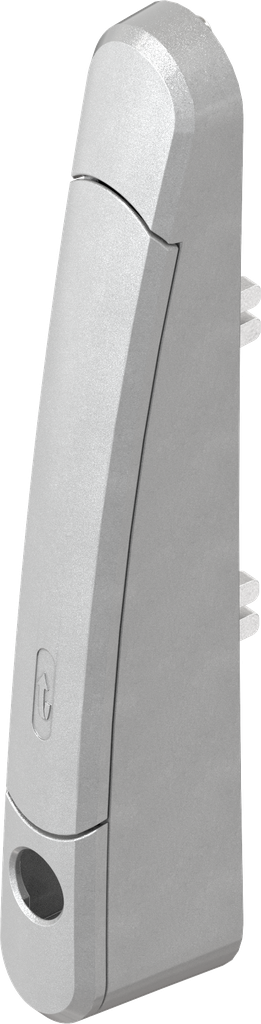

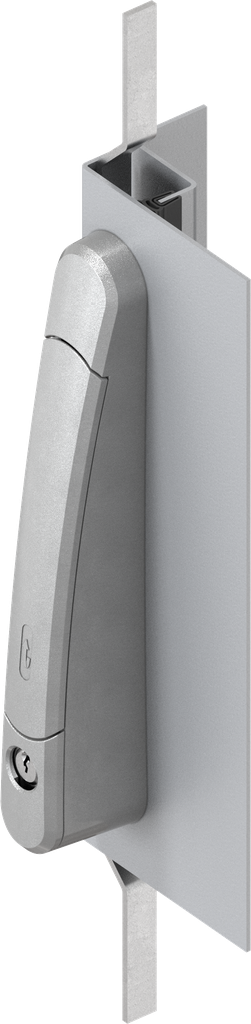

Lifthandle for small bending area, Polyamide GF silver grey metallic; 1390-U1-CX

https://www.emka.com/products/1390-u1-cx https://www.emka.com/web/image/product.template/65293/image_1920?unique=770ef6d

for locking sets with profile half cylinder, round cylinder and inserts


    This combination does not exist.

    Outside the sealing Left Right


    Product Benefits:

    • Bi-directional lifthandle Variable positioning of the rods depending on hinge fixing Small cut out due to outside handle mechanism Innovative new and well-priced technology Attractive design Larger clearance due to narrow bending 33 x 25 mm or 37 x 25 mm Patented
    • Variable positioning of the rods depending on hinge fixing
    • Small cut out due to outside handle mechanism
    • Innovative new and well-priced technology
    • Attractive design
    • Larger clearance due to narrow bending 33 x 25 mm or 37 x 25 mm
    • Patented

    Product information:

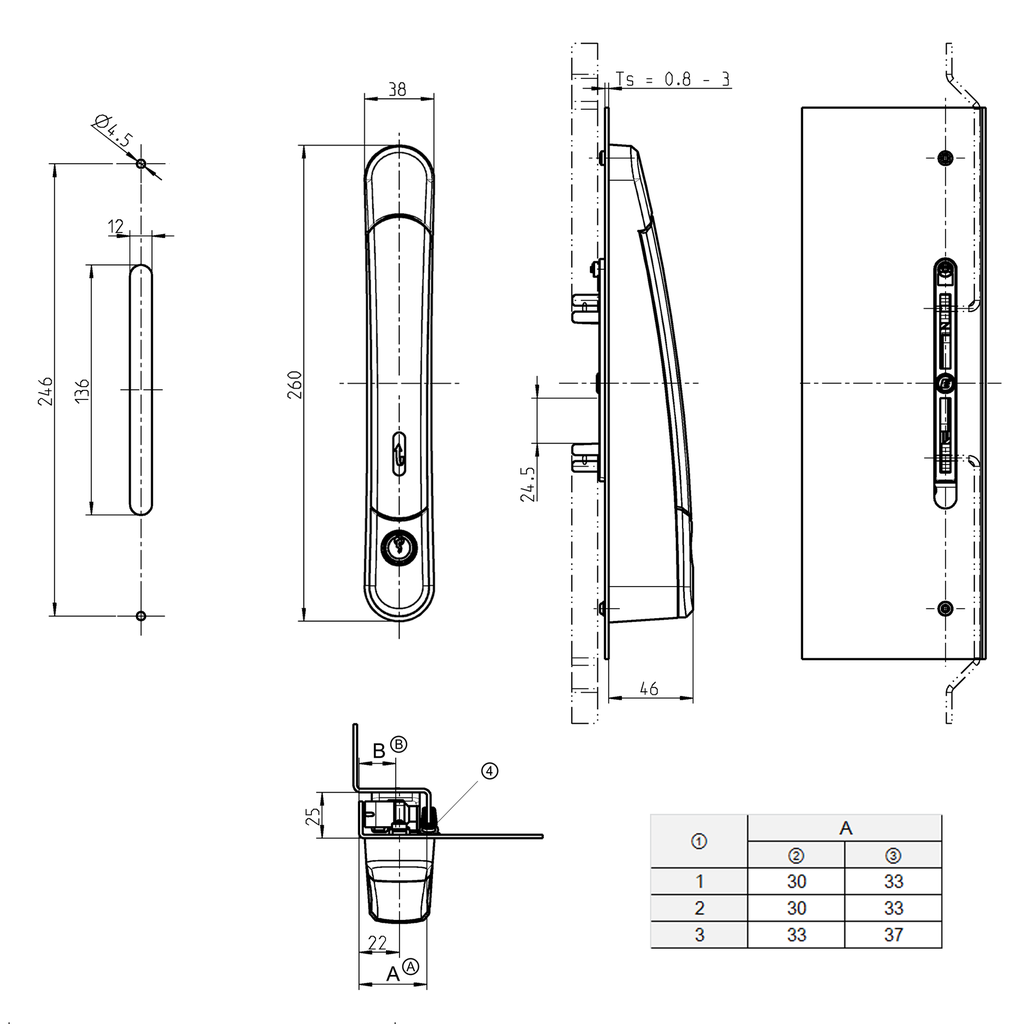

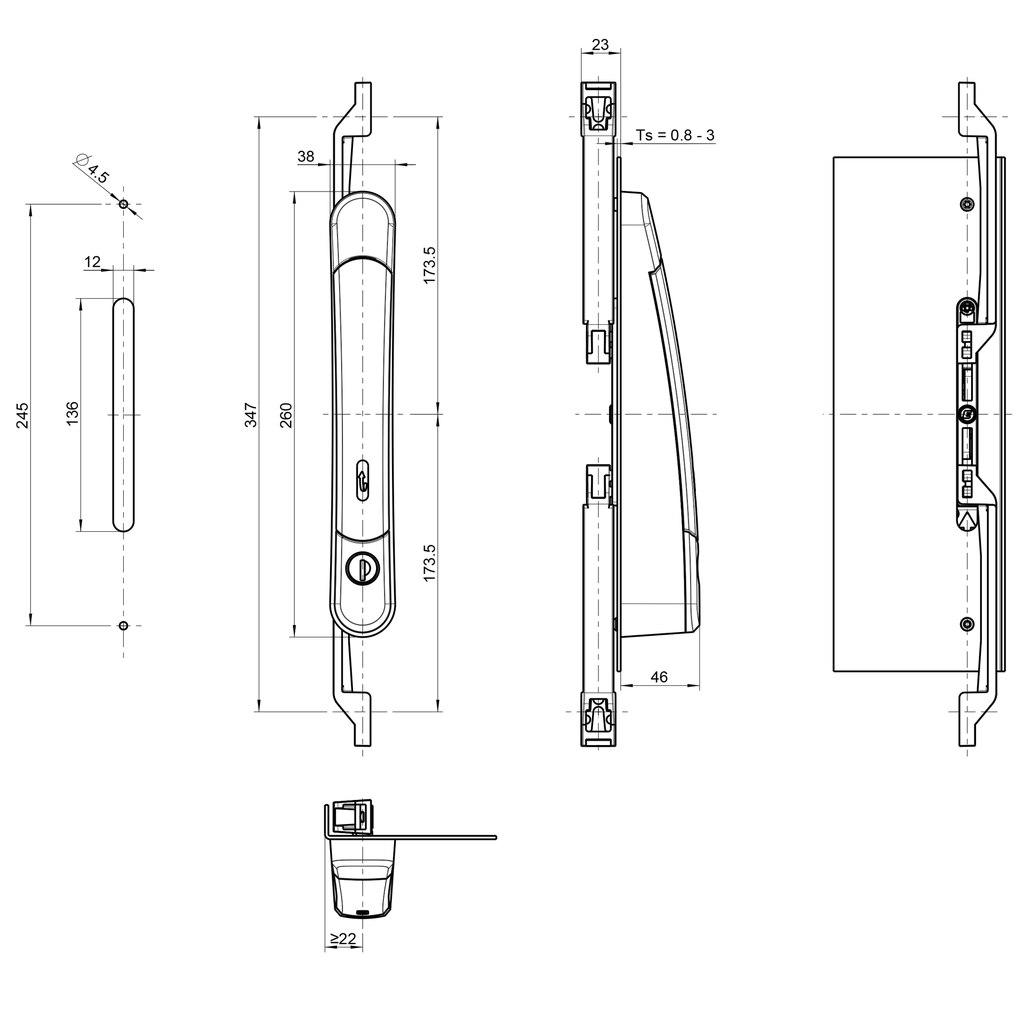

    Two different rod systems are available Rod movement is bi-directional Ⓐ = The values in the table for dimension A with seal refer to seal 1011-10. The values for dimension A are different for other seals. Ⓑ = Dimension B should have the same value as the fixing dimension of the hinge bracket if the door is to be used right or left. Dimension B depends on the hinge to be used. ① = Locking type ② = Without seal ③ = With seal ④ = Seal example: 1011-10 ⑤ = Seal and seal piece with "bulge" are not used for this assembly ⑥ = Variable rod control

    Rod movement is bi-directional

    Ⓐ = The values in the table for dimension A with seal refer to seal 1011-10. The values for dimension A are different for other seals.

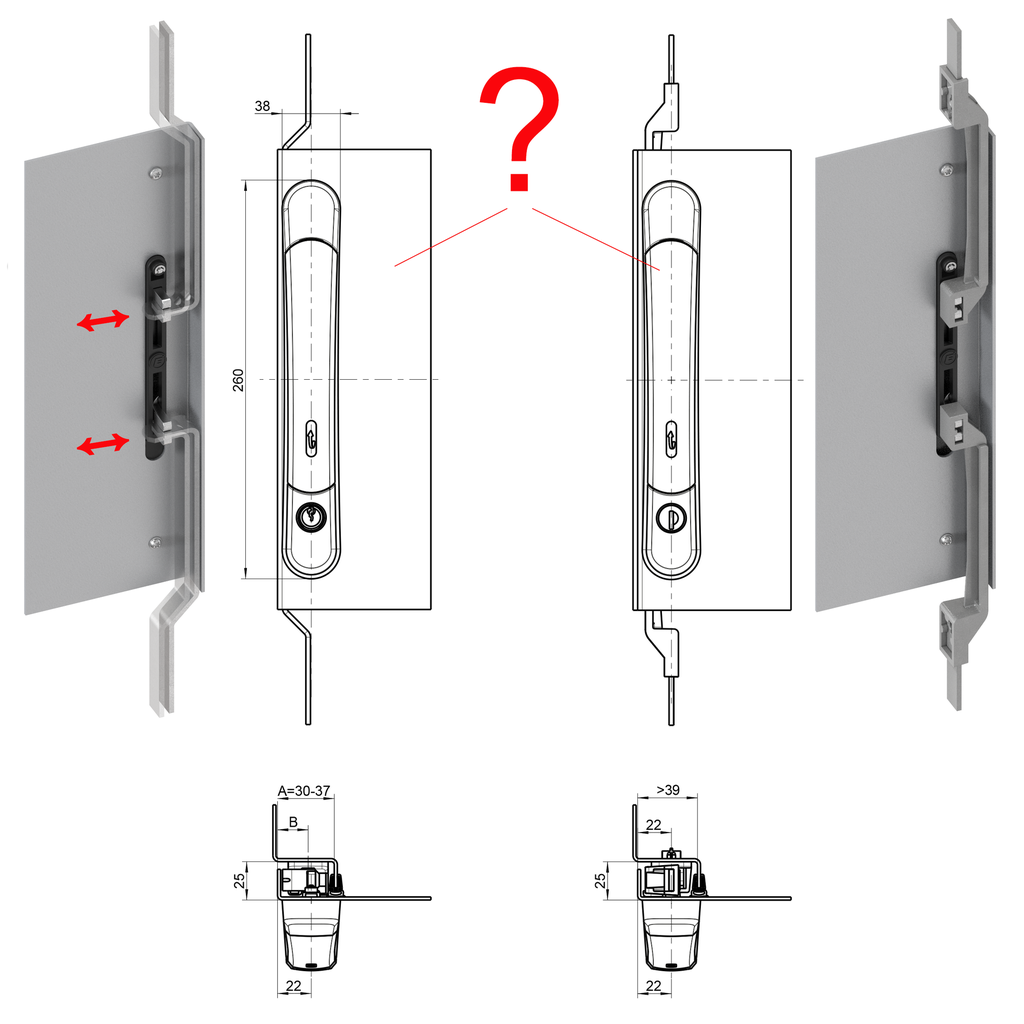

    Ⓑ = Dimension B should have the same value as the fixing dimension of the hinge bracket if the door is to be used right or left. Dimension B depends on the hinge to be used.

    ① = Locking type
    ② = Without seal
    ③ = With seal
    ④ = Seal example: 1011-10
    ⑤ = Seal and seal piece with "bulge" are not used for this assembly
    ⑥ = Variable rod control

    Assembly instruction:

    Attention: Locking set for ASSA cylinder, KABA cylinder and push button cannot be installed!

    Internal Reference: 1390-U1-CX
    Product Type: Swinghandle, Lifthandle
    Program: 1390
    Catalog sheet: 3FA-150
    Material of the module : Polyamide GF
    Surface of the module: silver grey metallic
    Dimension A, Variable: 25 mm
    Number of Possible Locking Points: 2 points, 4 point, More than 4 points available on request
    Number of Locking: One locking set
    Article with property rights: Yes
    Mounting Positions : Outside the sealing
    For small bending area: Yes
    Handle Art(1): Lifthandle

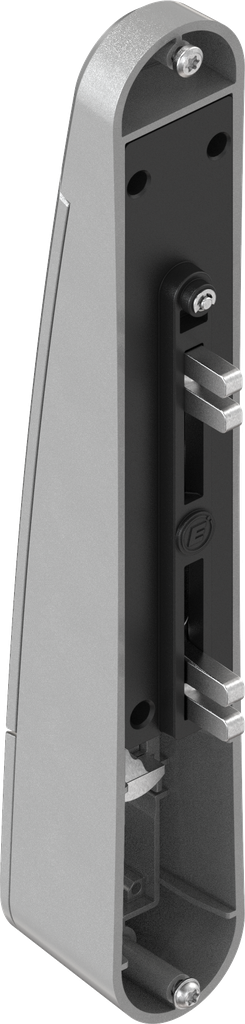

    With integrated rod control / 3-point cam: Yes
    Suitable for door thickness from: 0.80 mm
    Suitable for door thicknesses up to: 3 mm
    Locking set modular technology: Profile half cylinder with cap, A = 30, mounted at the dish,Round cylinder with cap, mounted at the dish,Insert with cap, mounted at the dish
    Swivel Handle: 46 mm
    Pan Handle Length: 260 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Integrated rod control
