Flat rod 14 x 3 with notch for small bending area bottom, Steel zinc-plated
Lifthandle for small bending area, Polyamide GF black

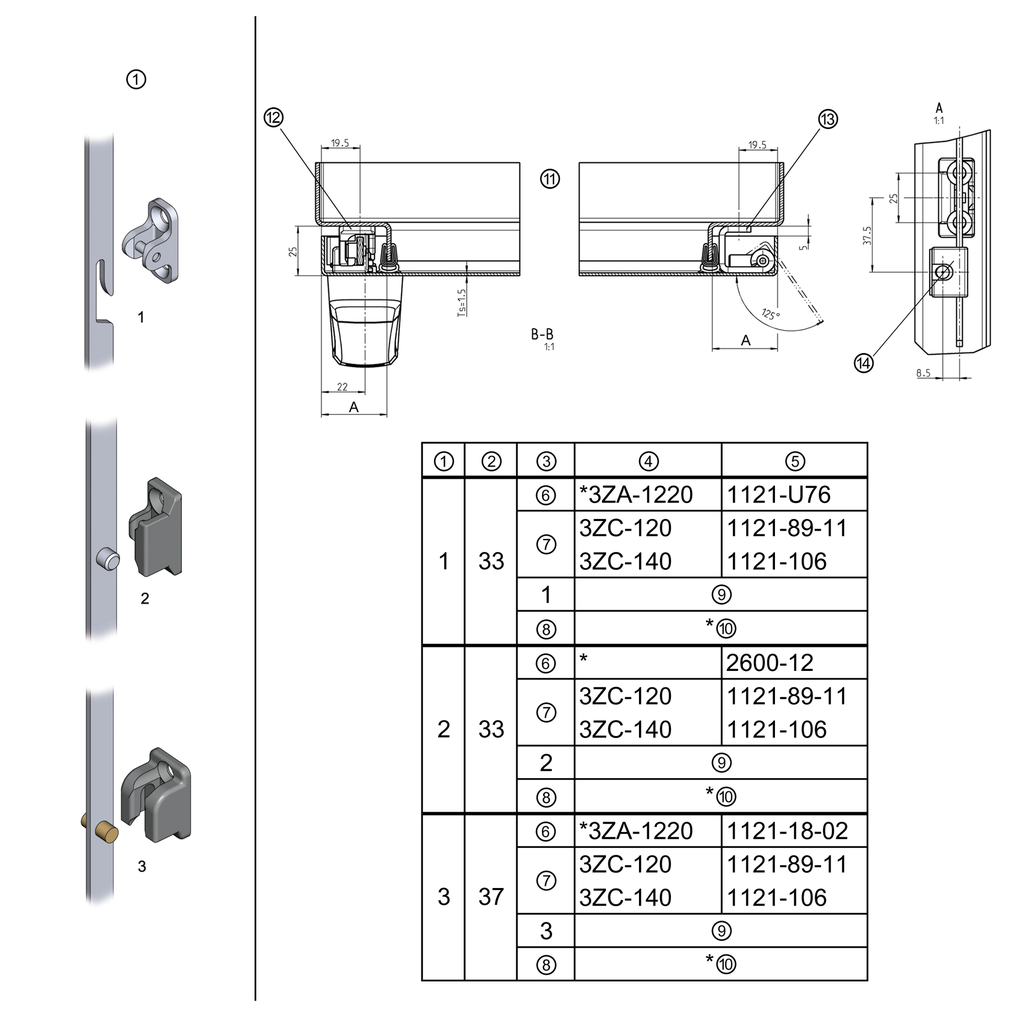

Product information:
① = Locking type
② = Dimension A
③ = Part
④ = Catalogue page
⑤ = Part no.
⑥ = Catch
⑦ = Rod guide
⑧ = Hinge
⑨ = See flat rod
⑩ = Hinge suitable for locking types 1, 2 and 3
- 125° Hinge 4A-136
- 180° Hinge (bottom) 4A-140
- 180° Hinge 4A-145
- 180° Hinge (bottom) 4A-170
- 180° Hinge (26 mm door return) 4A-210
- 180° Hinge 4A-215
⑪ = Combination example
⑫ = Locking type 2
⑬ = e.g. 120° Hinge 1031-U12 see catalogue page 4A-136
⑭ = e.g. Rod guide 1121-106
⑮ = Rod guide centre
⑯ = Catch centre
⑰ = Door centre

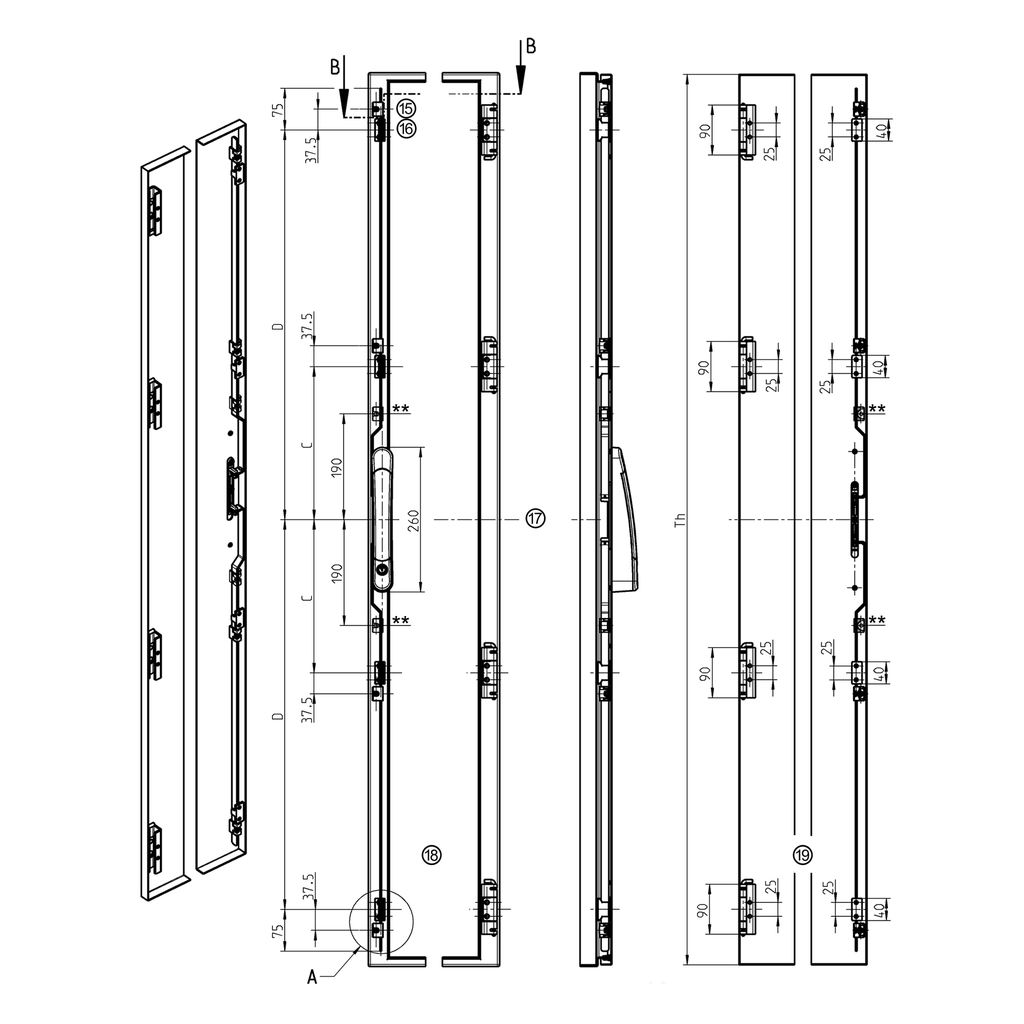

⑱ = Depicted without door
⑲ = Door depicted from inside
* Fixing with countersunk screws according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
** Additional rod guides required for door height up to 1600 mm
Stroke of rod is bi-directional
Internal Reference:
1390-12-07JB
Product Type:
Rod
Material:
Steel
Program:
1390
Surface:
zinc-plated
Catalog sheet:
3ZA-610
Connecting rod position:
Outside the sealing, bottom
Number of Possible Locking Points:
2 points
Article with property rights:
Yes
C Dimension:
275
D Dimension:
850
Mounting Positions :
Outside the sealing
Flat Bar Outside:
Flat rod with notch
For Door Height:
1900-2200
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
