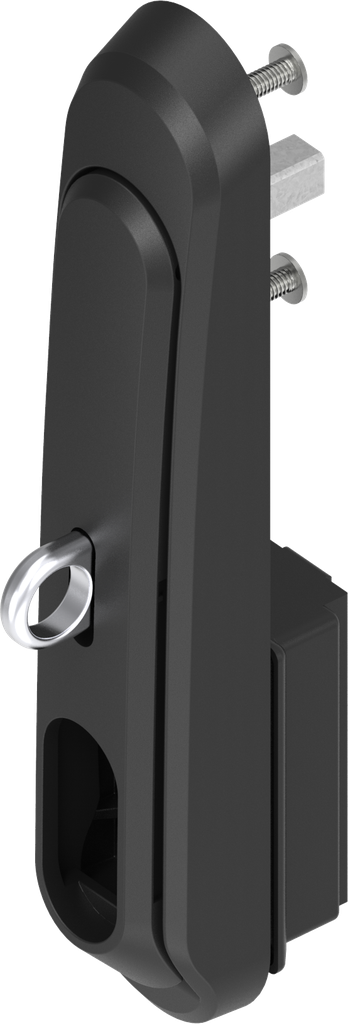

Swinghandle with hook and locking set for profile half cylinder 40 mm (A = 30 mm) and for padlock, Polyamide GF black
Swinghandle with cap and locking set for profile half cylinder 40 mm (A = 30 mm) and for padlock, Polyamide GF black
Key features:
- Optionally available with polyamide or steel cam suitable for many standard cams
- Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
- Smooth operation (no inner rotation due to design)
- Self-sealing design for highest protection requirements (design immanent)
- Increased safeguarding against overwinding
- Standard cut out
- Patented
Assembly instruction:
When cam is used, adapter for cam 1325-U101 is required.
Internal Reference:
1325-U4
Product Type:
Swinghandle, Lifthandle
Program:
1325
Catalog sheet:
3BA-220
Material of the module :
Polyamide GF
Surface of the module:
black
Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set and for padlock
Article with property rights:
Yes
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing,Outside the sealing
Foamed gasket:
Yes
Consistent convenient swinging:
Yes
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes
Suitable for door thickness from:
0.80 mm
Suitable for door thicknesses up to:
2 mm
Locking set:
Padlock
Locking set modular technology:
Profile half cylinder, A = 30, handle assembly,Round cylinder, handle assembly,Insert, handle assembly
Swivel Handle:
23 mm
Pan Handle Length:
179 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam,Rod control
Padlock Art:
Padlock with shackle dimension Ø 13
