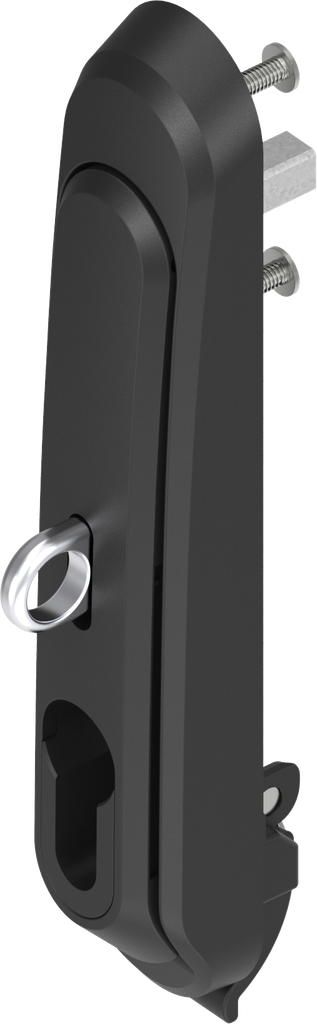

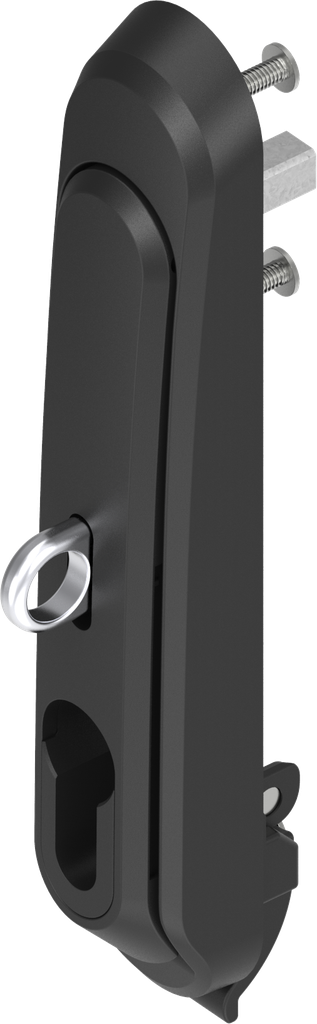

Swinghandle with hook and locking set for profile half cylinder 40 mm (A = 30 mm) and for padlock, Polyamide GF black; 1325-U3-01

https://www.emka.com/products/1325-u3-01 https://www.emka.com/web/image/product.template/65253/image_1920?unique=e8209a7


    This combination does not exist.

    Inside the sealing Outside the sealing Foamed seal Protection class IP 40 Left Right


    Key features:

    • Optionally available with polyamide or steel cam suitable for many standard cams
    • Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
    • Smooth operation (no inner rotation due to design)
    • Self-sealing design for highest protection requirements (design immanent)
    • Increased safeguarding against overwinding
    • Standard cut out
    • Patented

    Assembly instruction:

    When cam is used, adapter for cam 1325-U101 is required.

    Internal Reference: 1325-U3-01
    Product Type: Swinghandle, Lifthandle
    Program: 1325
    Catalog sheet: 3BA-220
    Material of the module : Polyamide GF
    Surface of the module: black
    Dimension A, Variable: 25 mm
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Number of Locking: One locking set and for padlock
    Article with property rights: Yes
    Attachment of the trough: Hook IP 40
    Mounting Positions : Inside the sealing,Outside the sealing
    Foamed gasket: Yes
    Consistent convenient swinging: Yes
    Handle Art(1): Swinghandle
    Integrated scratch protection: Yes
    Without locking set: Profily half cylinder blind plug with spring-loaded ball

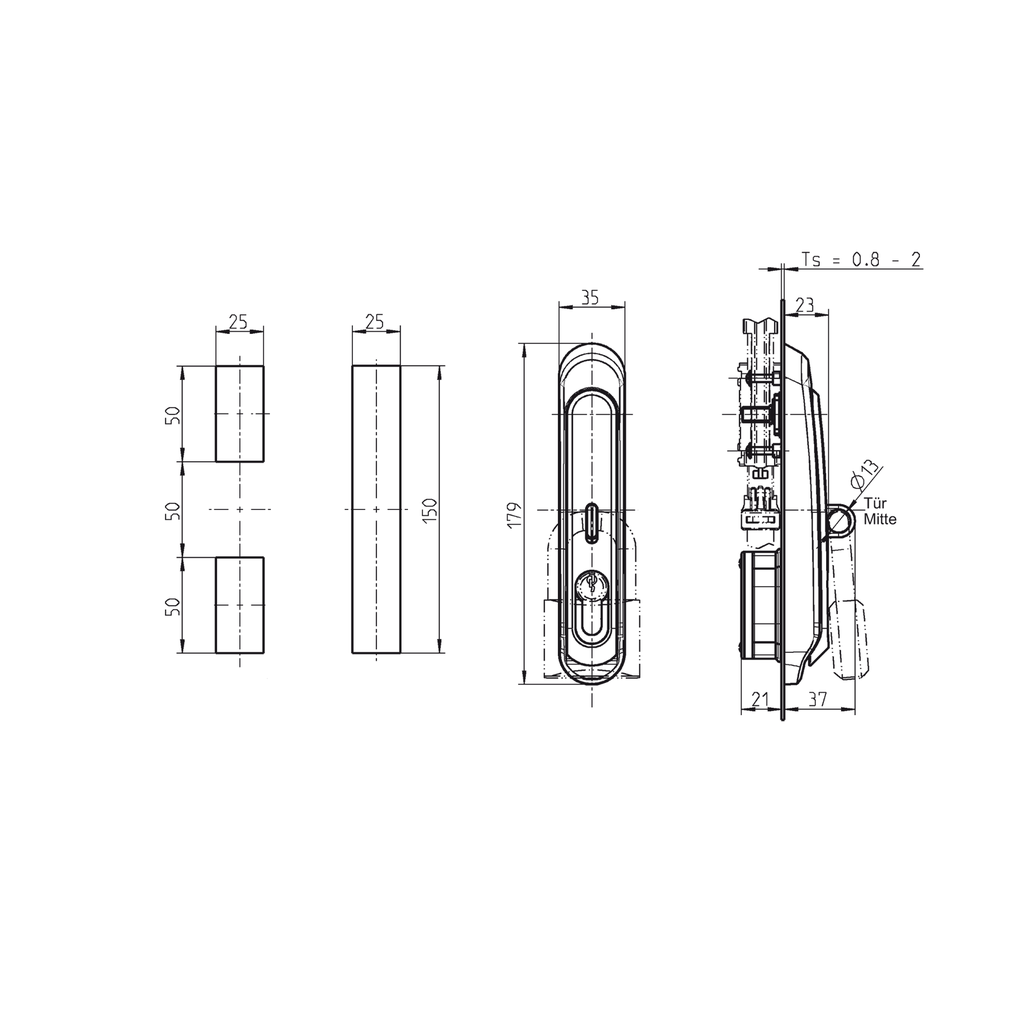

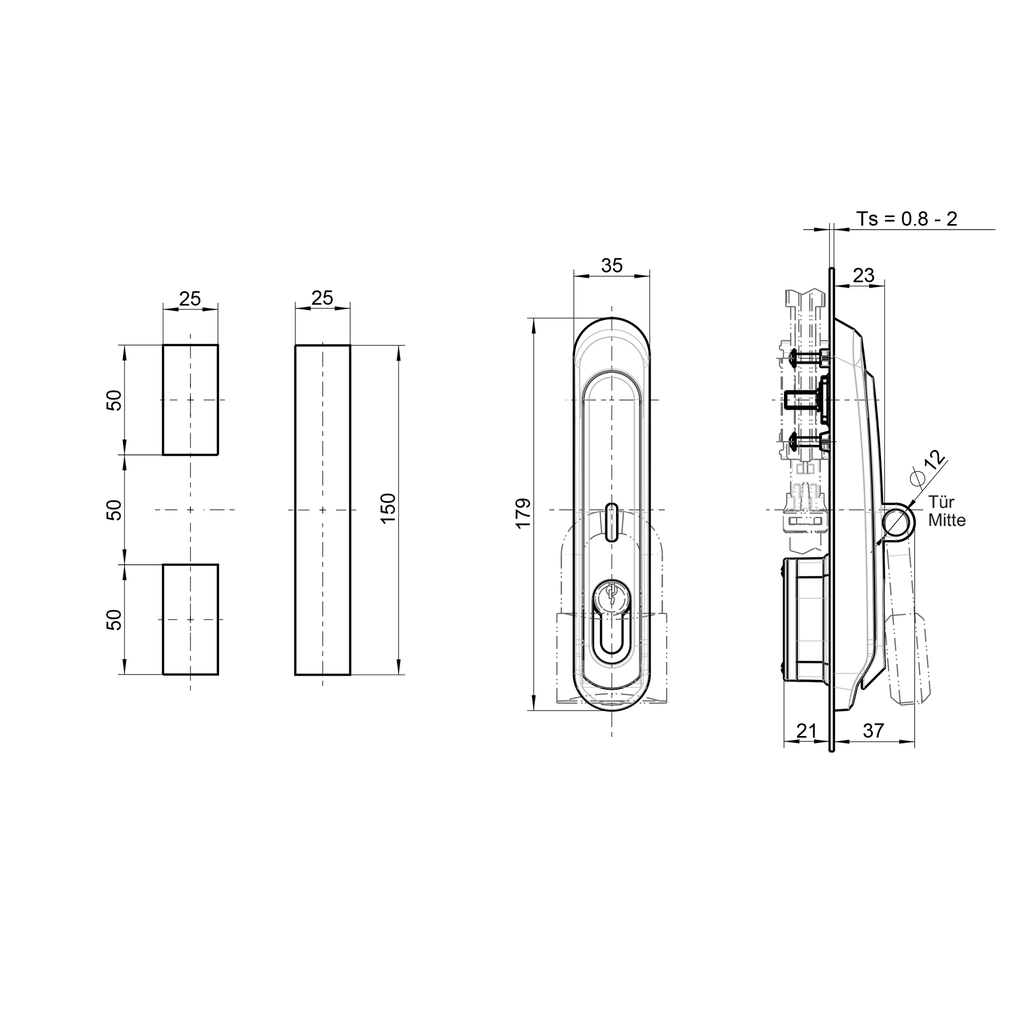

    Suitable for door thickness from: 0.80 mm
    Suitable for door thicknesses up to: 2 mm
    Locking set: Profile half cylinder A = 30,Padlock
    Swivel Handle: 23 mm
    Pan Handle Length: 179 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Cam,Rod control
    Padlock Art: Padlock with shackle dimension Ø 13
