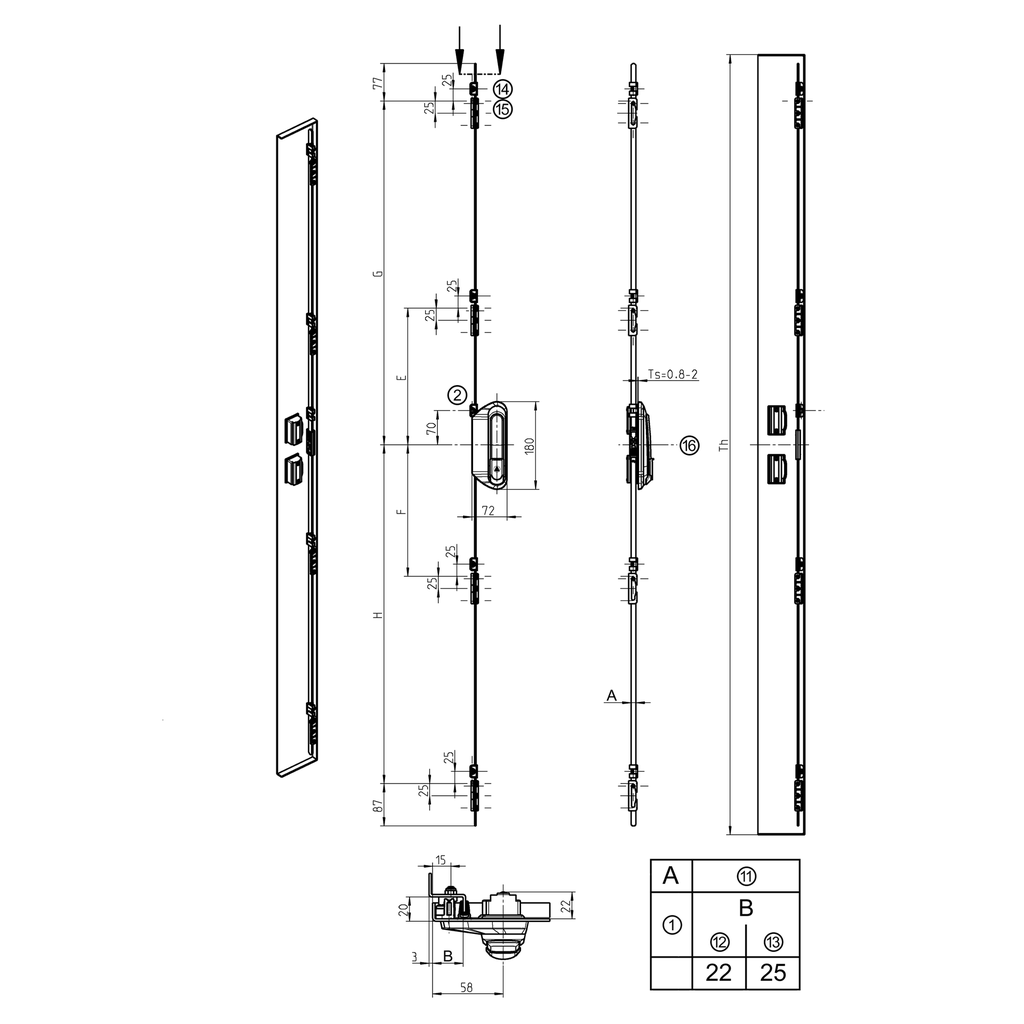

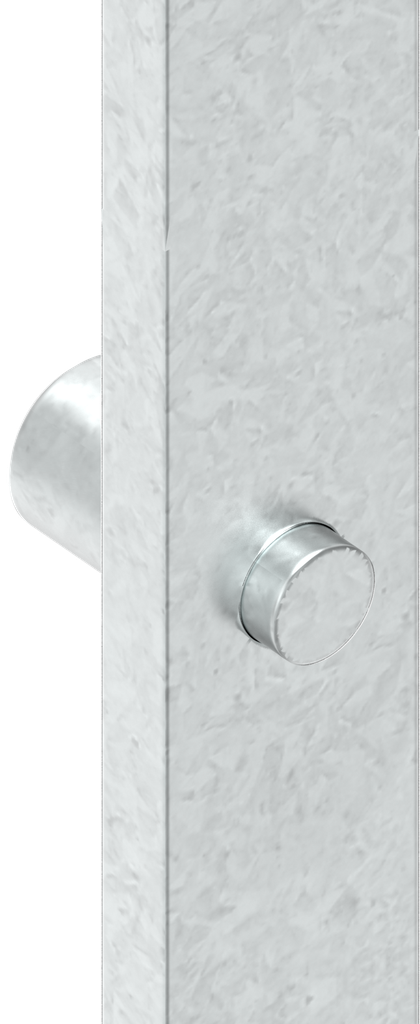

Flat rod 10 x 3 with single roller for small bending area, Steel zinc-plated; 1325-U220-05

https://www.emka.com/products/1325-u220-05 https://www.emka.com/web/image/product.template/77081/image_1920?unique=26047d6

    This combination does not exist.

    Outside the sealing
    Contact Us
    Internal Reference: 1325-U220-05
    Product Type: Rod
    Program: 1325
    Surface: zinc-plated
    Catalog sheet: 3ZA-605
    Material of the module : Steel
    Surface of the module: zinc-plated
    Connecting rod position: Outside the sealing, top or bottom
    Number of Possible Locking Points: 2 points
    Article with property rights: Yes
    Mounting Positions : Outside the sealing
    F dimension: 270
    Flat Bar Outside: Flat rod with single roller
    For Door Height: 1600-1900
    H Dimension: 695
    No Specifications
    View All Products

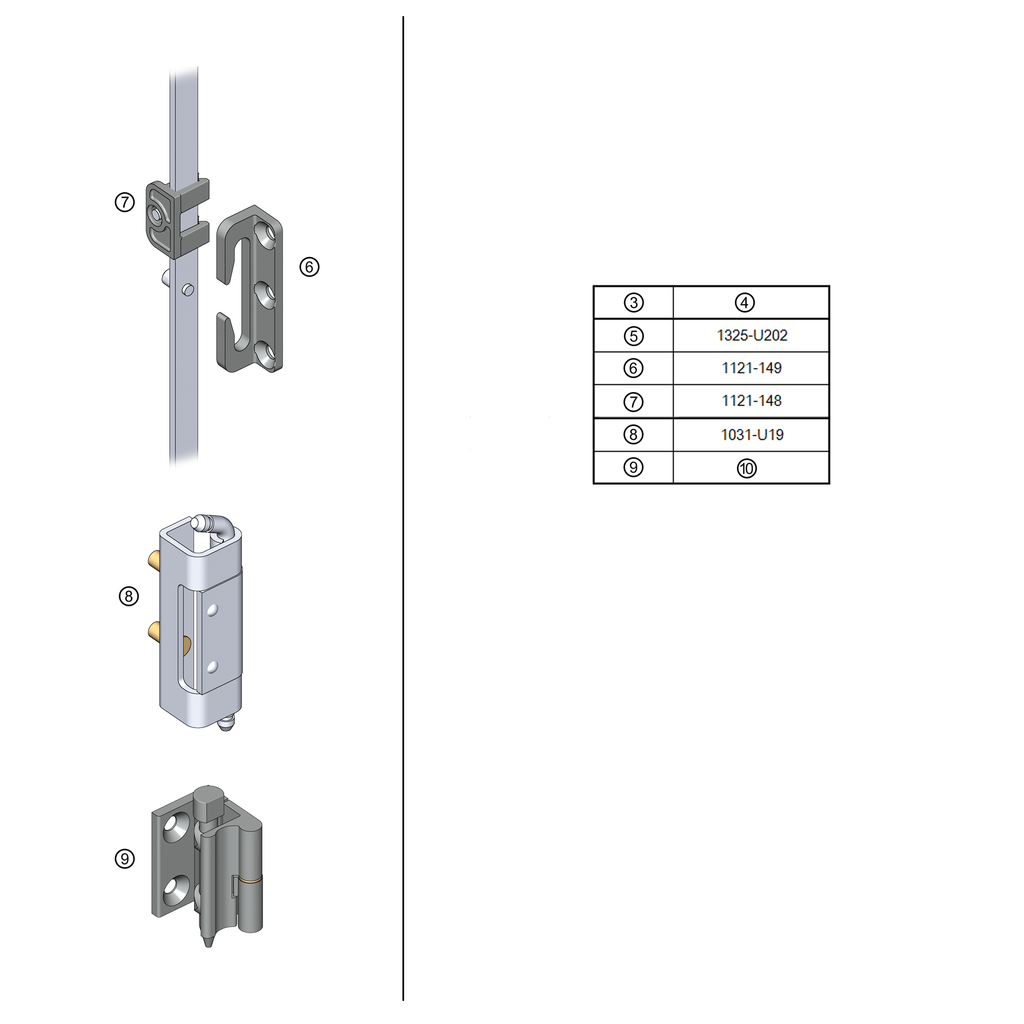

    Rod guide
    Catch
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3ZA-605
    Product data sheet
    CAD file | 1325-U220-05_igs
    CAD file | 1325-U220-05_stp
