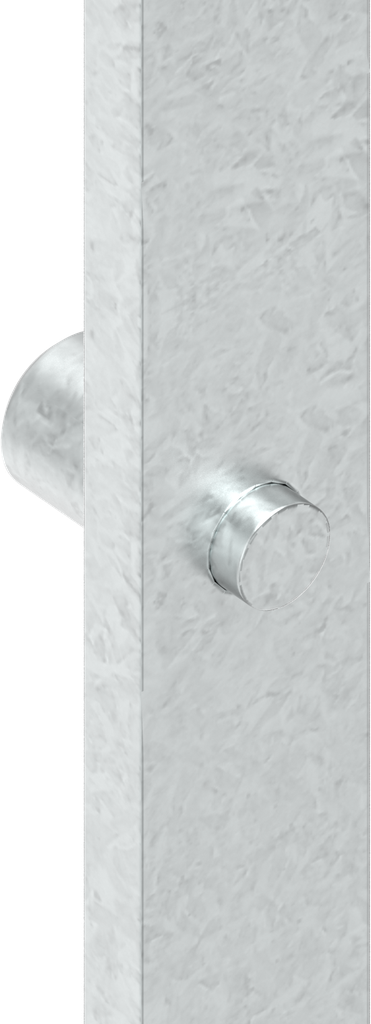

Flat rod 10 x 3 with single roller for small bending area, Steel zinc-plated
Flat rod 10 x 3 with single roller for small bending area, Steel zinc-plated
Product information:

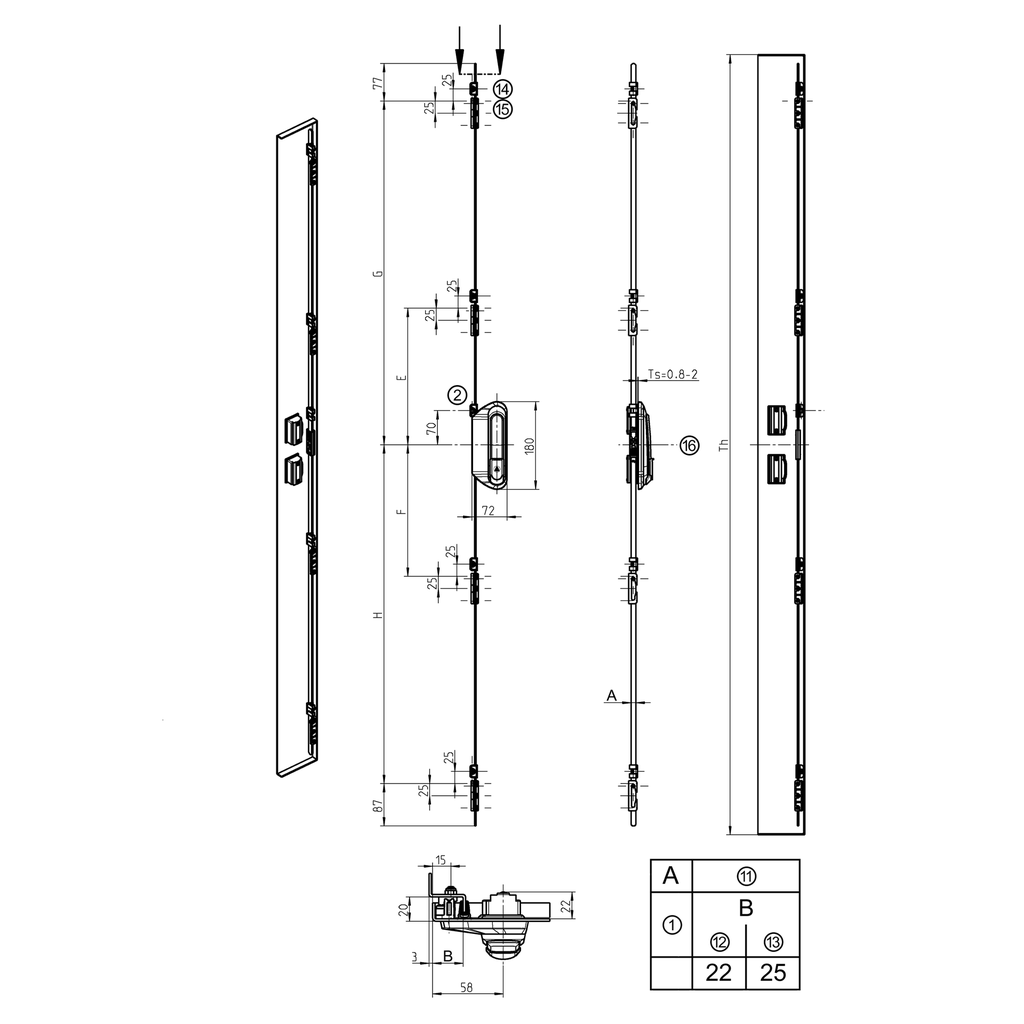

* = The values in the table for dimension B with seal refer to the seal 1011-10. With other seals, the values for dimension B differ.
Internal Reference:
1325-U220-03
Product Type:
Rod
Program:
1325
Surface:
zinc-plated
Catalog sheet:
3ZA-605
Material of the module :
Steel
Surface of the module:
zinc-plated
Connecting rod position:
Outside the sealing, top or bottom
Number of Possible Locking Points:
1 point
Article with property rights:
Yes
Mounting Positions :
Outside the sealing
F dimension:
Flat Bar Outside:
Flat rod with single roller
For Door Height:
1200-1600
H Dimension:
445
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
