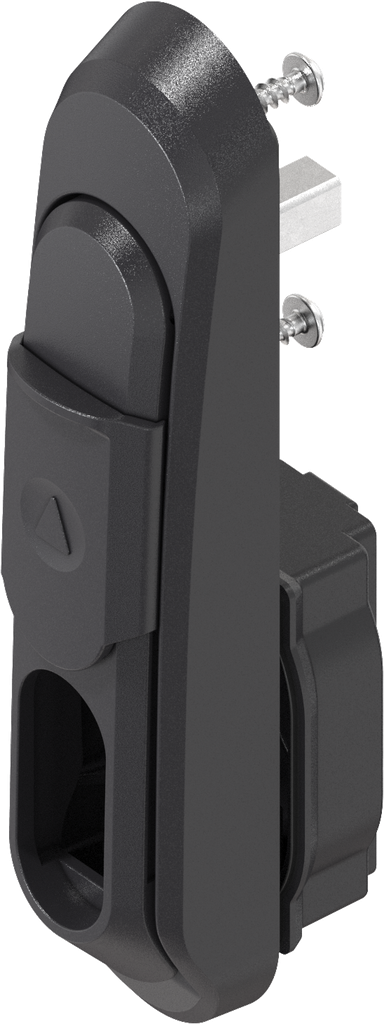

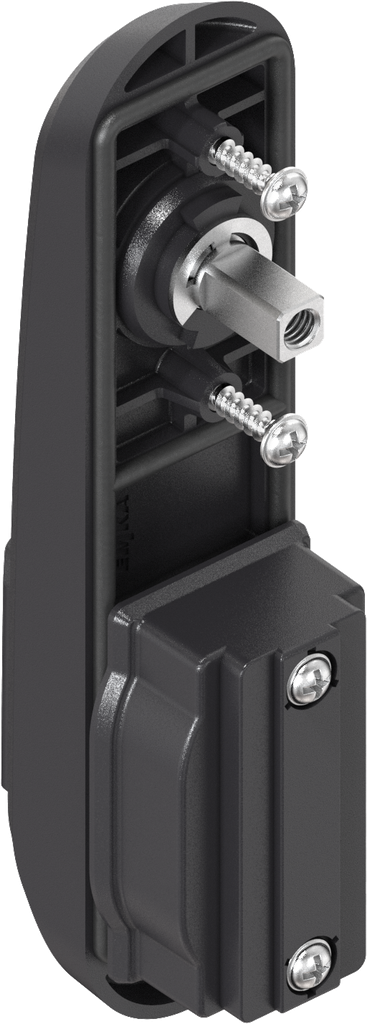

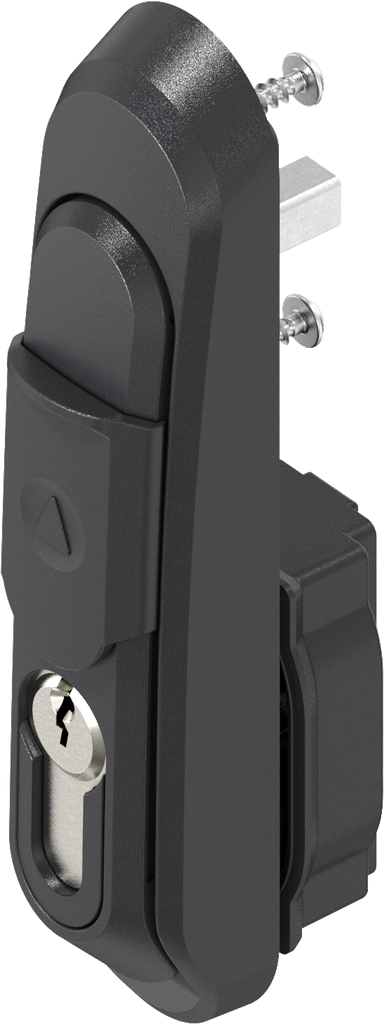

Swinghandle with cap and locking set for profile half cylinder 40 mm (A = 30 mm) and for padlock, Polyamide GF black
Adapter for cam and bridge, PBT GF and polyamide GF black
Product Benefits:
- Flat housing (23 mm + 5 mm dust protection slider)
- Swinghandle and dish preassembled
- Locking set inserts can be exchanged easily
- Spring-mounted handle
- Plastic parts protruding into the cabinet are flame resistant (PA 6 GF30 V0)
- Patented
Product information:
Rod control on request
Assembly instruction:

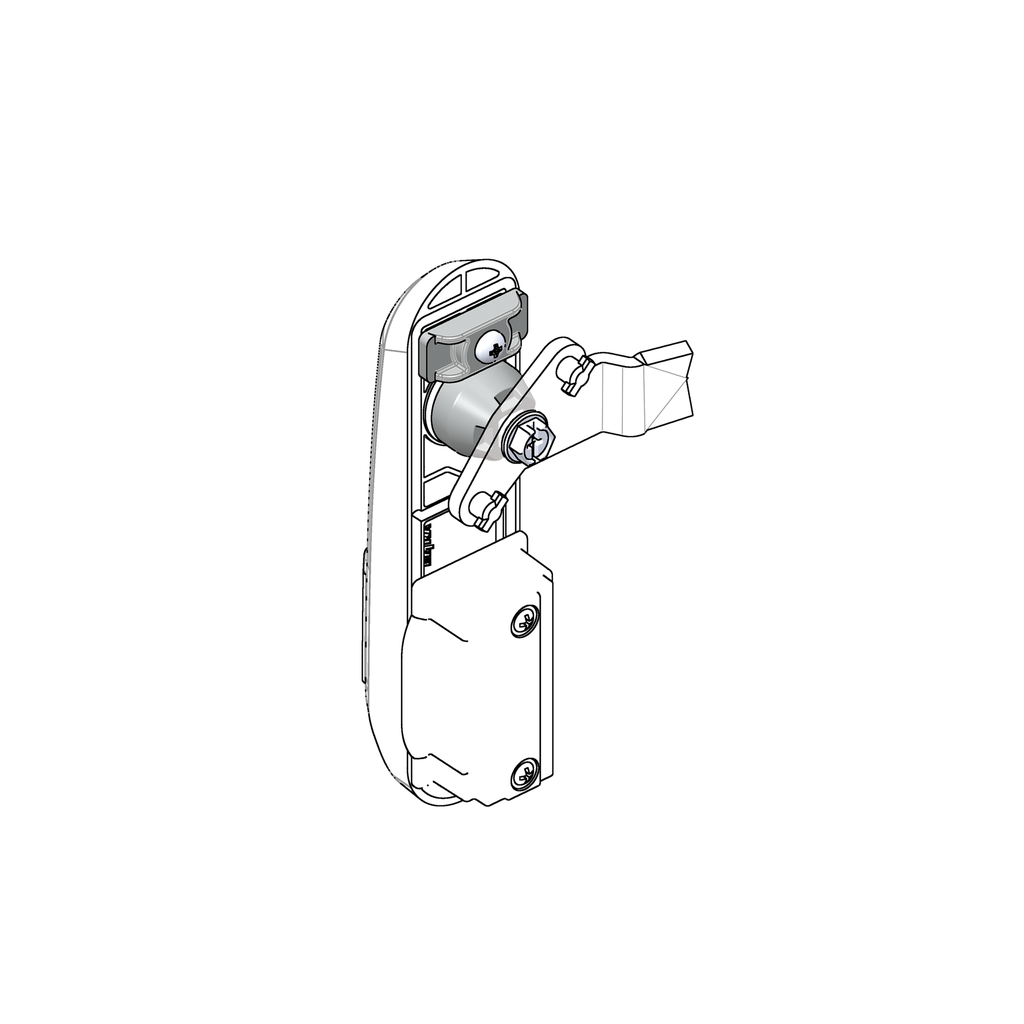

When cam is used, adapter for cam 1325-U101 is required.
Internal Reference:
1325-U22
Product Type:
Swinghandle, Lifthandle
Program:
1325
Catalog sheet:
3BA-210
Material of the module :
Polyamide GF
Surface of the module:
black
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point
Number of Locking:
One locking set
Article with property rights:
Yes
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing,Outside the sealing
Foamed gasket:
Yes
Consistent convenient swinging:
Yes
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes

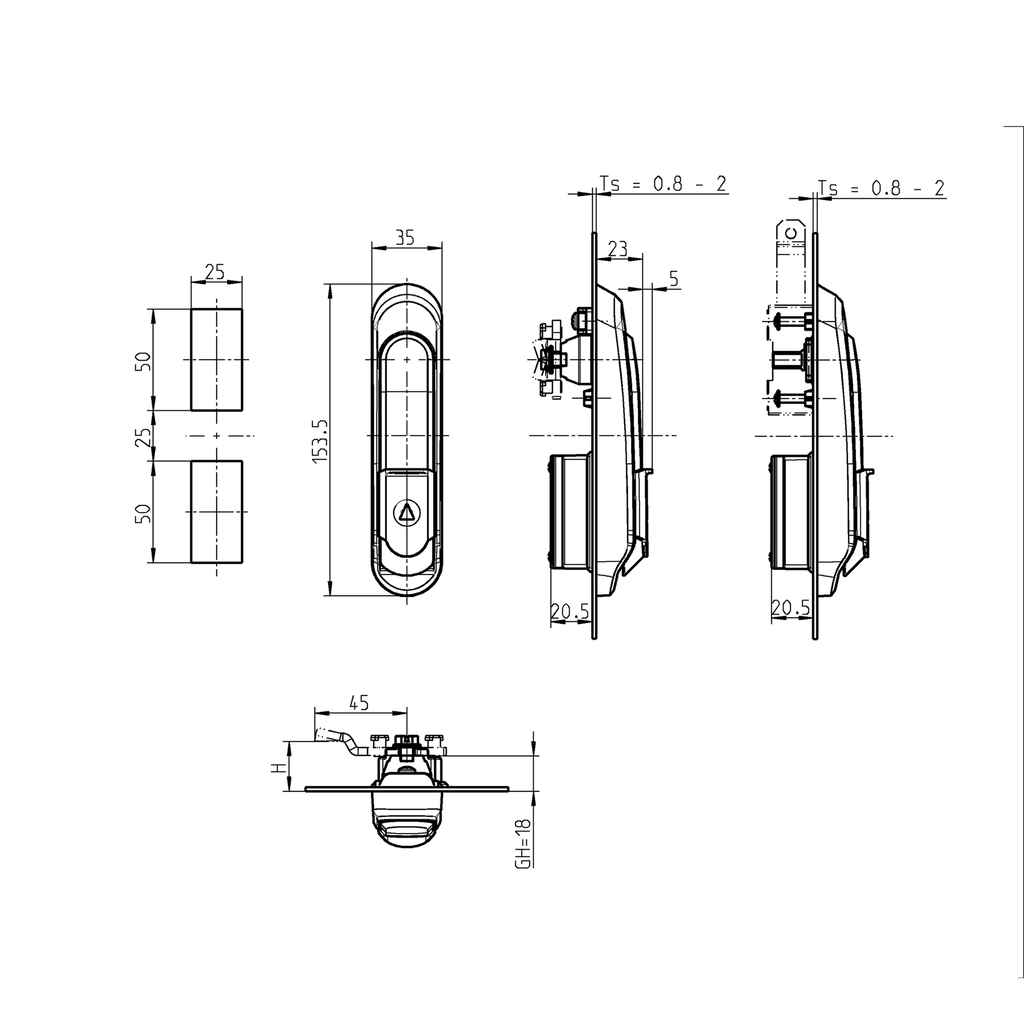

Suitable for door thickness from:
0.80 mm
Suitable for door thicknesses up to:
2 mm
Locking set modular technology:
Profile half cylinder, A = 30, handle assembly,Round cylinder, handle assembly,Insert, handle assembly
locking set cover:
Yes
Key Removable:
Key can be withdrawn in any handle position
Swivel Handle:
23 mm
Pan Handle Length:
153.5 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam,Rod control
