Swinghandle with cap and variable use of locking sets, Polyamide GF black
Swinghandle with hook and variable use of locking sets and for padlock, Polyamide GF black

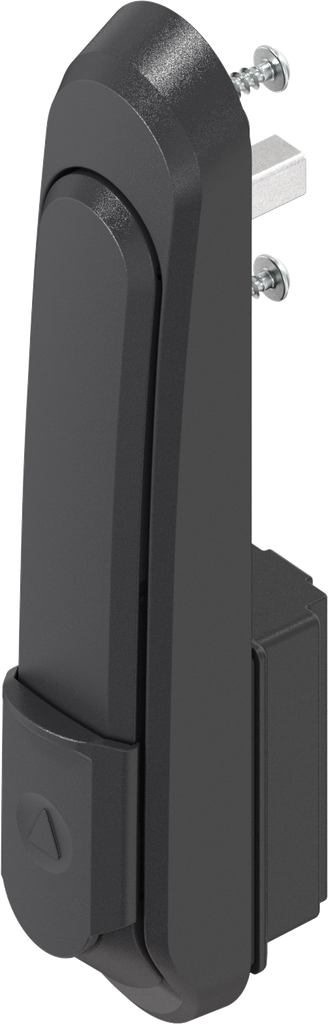

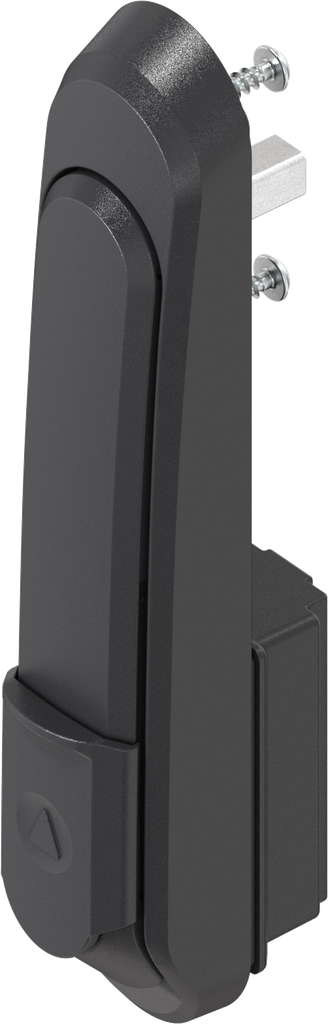

Swinghandle with cap and locking set for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black; 1325-U2-01
Key features:
- Optionally available with polyamide or steel cam suitable for many standard cams Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast Smooth operation (no inner rotation due to design) Self-sealing design for highest protection requirements (design immanent) Increased safeguarding against overwinding Standard cut out Patented
- Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
- Smooth operation (no inner rotation due to design)
- Self-sealing design for highest protection requirements (design immanent)
- Increased safeguarding against overwinding
- Standard cut out
- Patented
Assembly instruction:
When cam is used, adapter for cam 1325-U101 is required.
Internal Reference:
1325-U2-01
Product Type:
Swinghandle, Lifthandle
Program:
1325
Catalog sheet:
3BA-220
Material of the module :
Polyamide GF
Surface of the module:
black
Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Article with property rights:
Yes
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing,Outside the sealing
Foamed gasket:
Yes
Consistent convenient swinging:
Yes
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes
Without locking set:
Profily half cylinder blind plug with spring-loaded ball
Suitable for door thickness from:
0.80 mm
Suitable for door thicknesses up to:
2 mm
Locking set:
Profile half cylinder A = 30
locking set cover:
Yes
Swivel Handle:
23 mm
Pan Handle Length:
179 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam,Rod control
