Swinghandle with hook and variable use of locking sets, Polyamide GF black
Swinghandle with cap and variable use of locking sets, Polyamide GF black

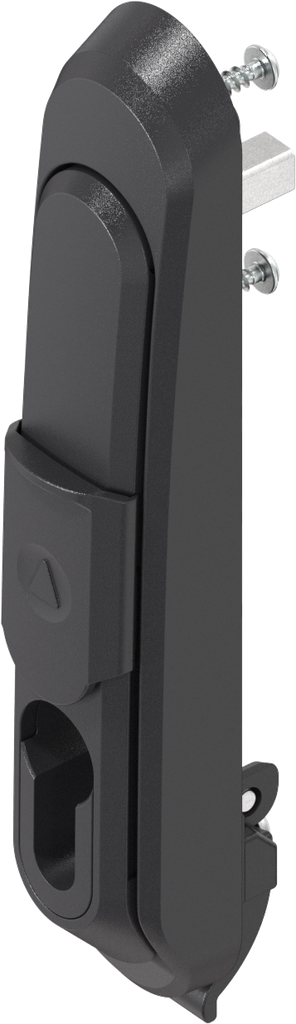

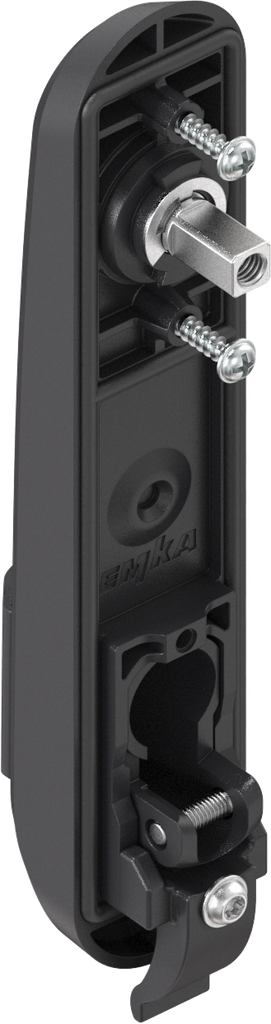

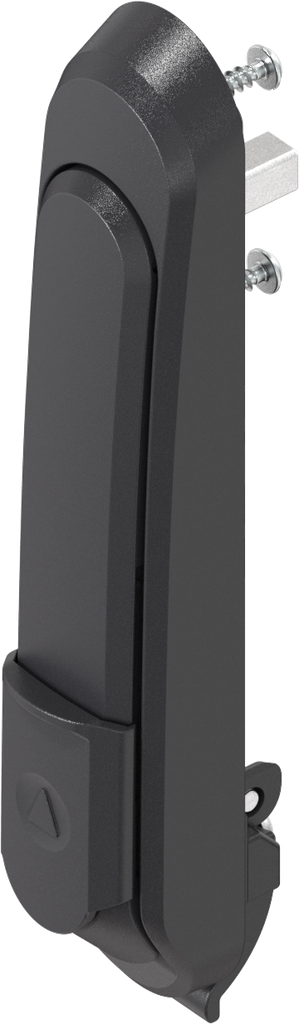

Swinghandle with hook and locking set for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black; 1325-U1-01
Key features:
- Optionally available with polyamide or steel cam suitable for many standard cams
- Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
- Smooth operation (no inner rotation due to design)
- Self-sealing design for highest protection requirements (design immanent)
- Increased safeguarding against overwinding
- Standard cut out
- Patented
Assembly instruction:

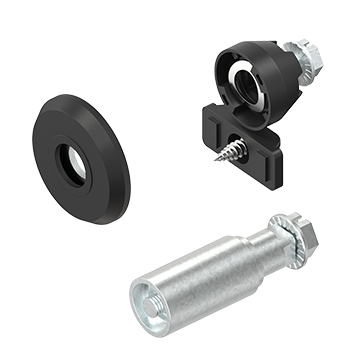

When cam is used, adapter for cam 1325-U1-01 is required.
Internal Reference:
1325-U1-01
Product Type:
Program:
Catalog sheet:
3BA-220
Material of the module :
Surface of the module:
Dimension A, Variable:
False
Door return variable:
Yes
Number of Possible Locking Points:
False
Number of Locking:
Article with property rights:
Yes
Attachment of the trough:
Mounting Positions :
False
Foamed gasket:
Yes
Consistent convenient swinging:
Yes
Handle Art(1):
Integrated scratch protection:
Yes
Without locking set:
False
Suitable for door thickness from:
0.80 mm
Suitable for door thicknesses up to:
2 mm
Locking set:
False
locking set cover:
Yes
Swivel Handle:
Pan Handle Length:
Door revolvable / reversible:
Yes
Door Version :
False
Locking components:
False
No Specifications
