Escutcheon 1321 with hook, Polyamide GF black
Escutcheon 1321 with hook, Polyamide GF black
Escutcheon 1321 with cap, Polyamide GF black
Escutcheon 1321 with cap, Polyamide GF black

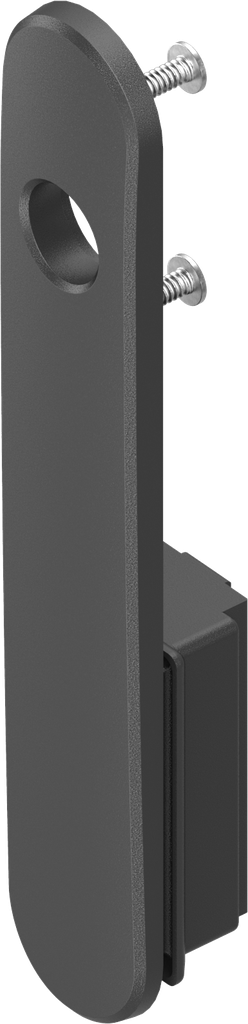

Escutcheon 1321 with cap, Polyamide GF black; 1321-U3

https://www.emka.com/products/1321-u3 https://www.emka.com/web/image/product.template/232136/image_1920?unique=f86255a

    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Foamed seal Protection class IP 65
    Contact Us
    Internal Reference: 1321-U3
    Product Type: Escutcheon
    Program: 1321
    Catalog sheet: 3BA-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Suitable for door thickness from: 1 mm
    Suitable for door thicknesses up to: 2 mm
    Locking means key tag: Insert square, triangular, Daimler Benz, slot, etc.
    Key Tag Size: long
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Insert
    Rod control
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
