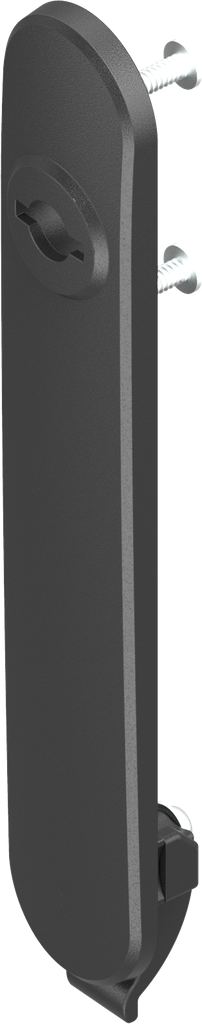

Escutcheon 1321 with hook, Polyamide GF black
Escutcheon 1321 with hook, Polyamide GF black
Escutcheon 1321 with cap, Polyamide GF black
Escutcheon 1321 with cap, Polyamide GF black

Escutcheon 1321 with hook, Polyamide GF black; 1321-U2

https://www.emka.com/products/1321-u2 https://www.emka.com/web/image/product.template/232135/image_1920?unique=e8209a7

    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Foamed seal Protection class IP 40
    Contact Us
    Internal Reference: 1321-U2
    Product Type: Escutcheon
    Program: 1321
    Catalog sheet: 3BA-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Suitable for door thickness from: 1 mm
    Suitable for door thicknesses up to: 2 mm
    Locking means key tag: Insert double bit
    Key Tag Size: long
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Rod control

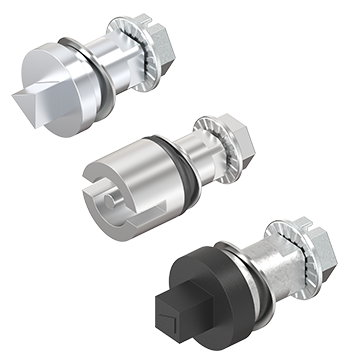

    Insert
    Bearing bush

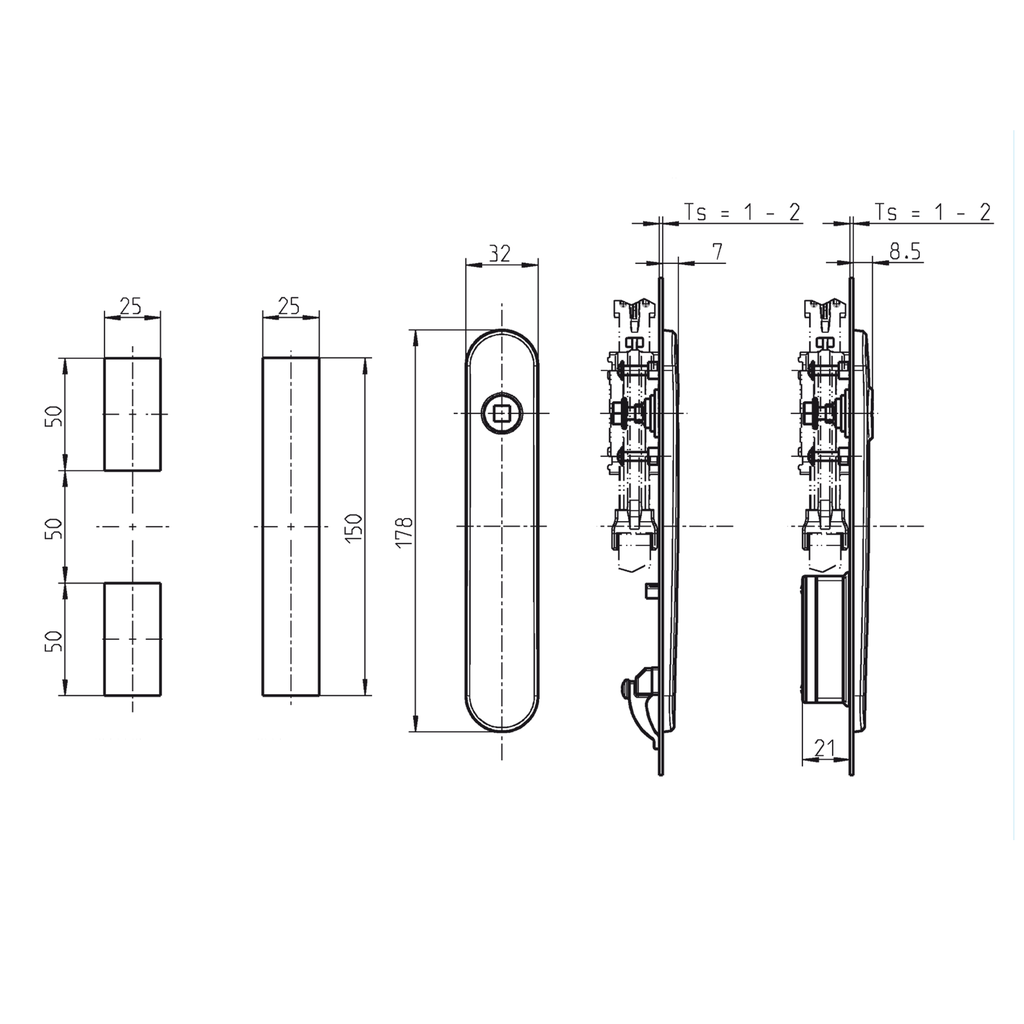

    Here you can find the product data sheets and CAD files of this product
