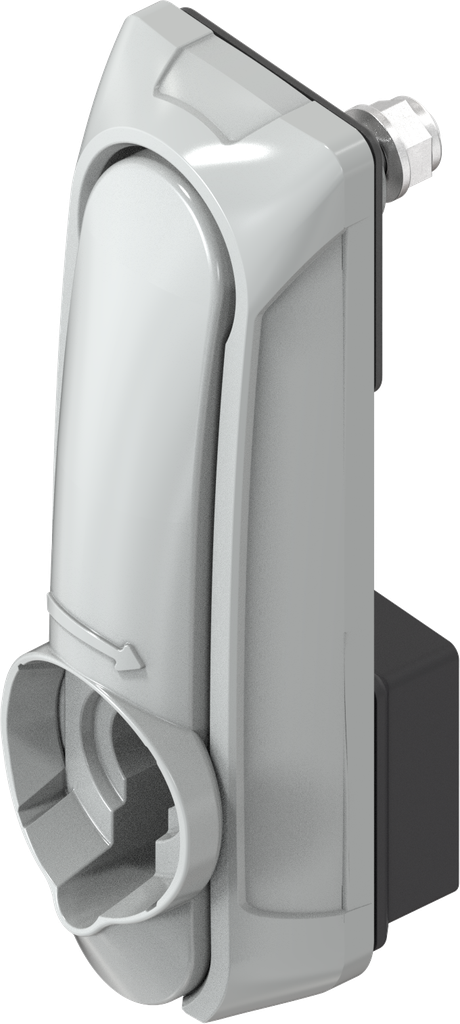

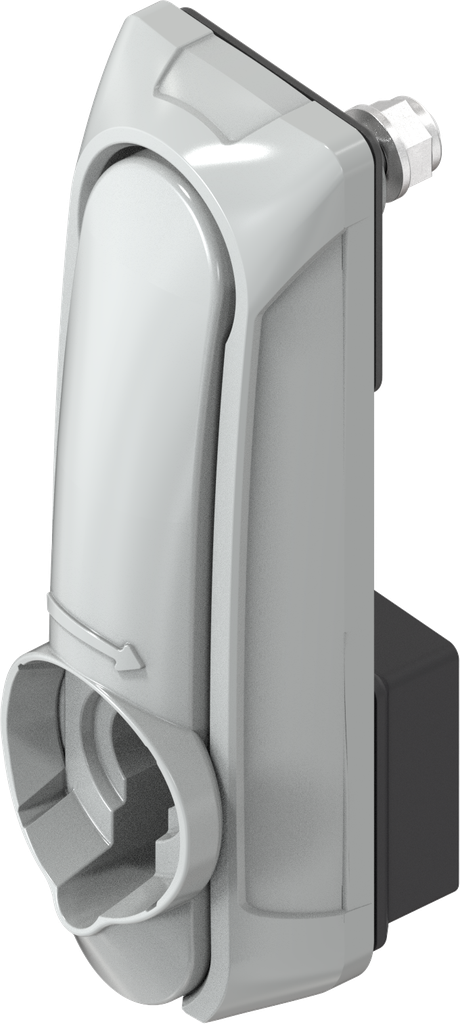

Swinghandle "short" with RC2 for iLOQ profile half cylinder, Zinc die grey powder-coated RAL 7038; 1317-U33
for cam
Product Benefits:
Zinc die version meets RC2 requirements (protection against vandalism) according to DIN V ENV 1630
Product information:
Ts > 6-12 on request
Order / Calculation example:
Resistance class: RC2 DIN EN 1630, achieved by profile half cylinder according to DIN EN 18252-BZ or DIN EN 1303 with resistance class 2 with protection against drilling and pulling. The profile half cylinder should be certified and monitored by PIV CERT or alternatively by a certifying body according to DIN EN ISO/IEC 17065.
Internal Reference:
1317-U33
Product Type:
Swinghandle, Lifthandle
Program:
1317
Material of the module :
Zinc die
Surface of the module:
grey powder-coated RAL 7038
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
GH Mass:
18 mm
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes
Cloak:
Yes
Suitable for door thickness from:
2 mm
Suitable for door thicknesses up to:
12 mm
Test according to RC2 DIN EN 1630 (WK2 DIN V ENV 1630):
Yes
Test rating IK 10 following DIN EN 50102:
Yes
Locking set:
iLOQ No. D50S.511.SD (recommended) or D50S.111.SD
Shock and vibration testing according to DIN EN 61373:
Yes
Swivel Handle:
44 mm
Pan Handle Length:
165 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam
