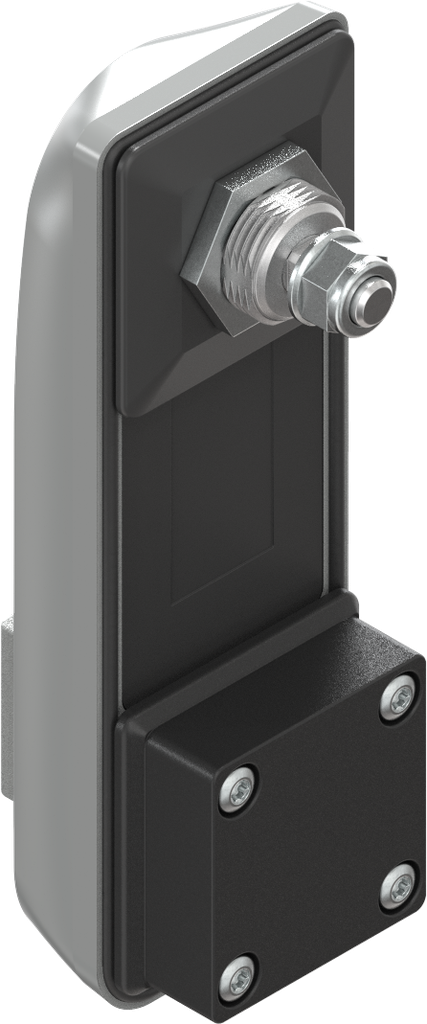

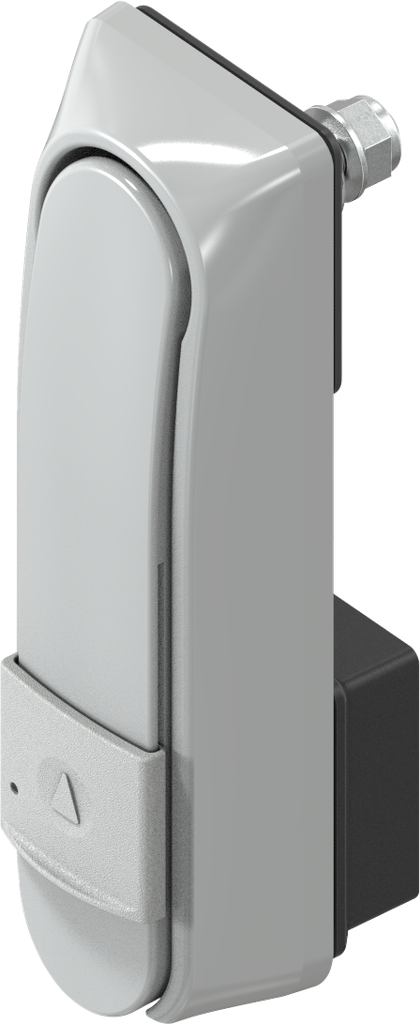

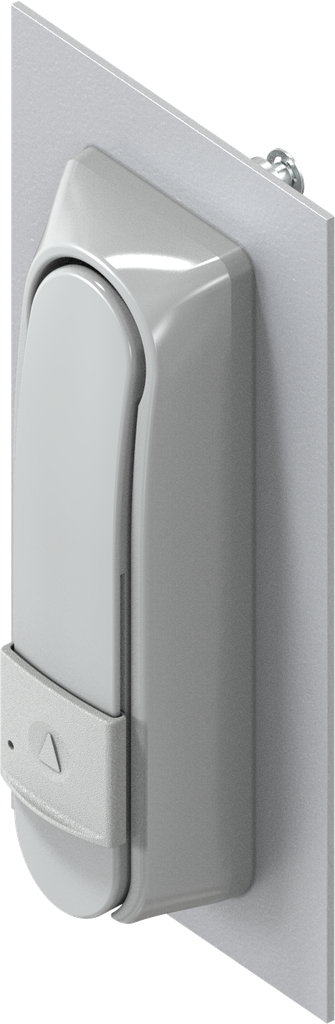

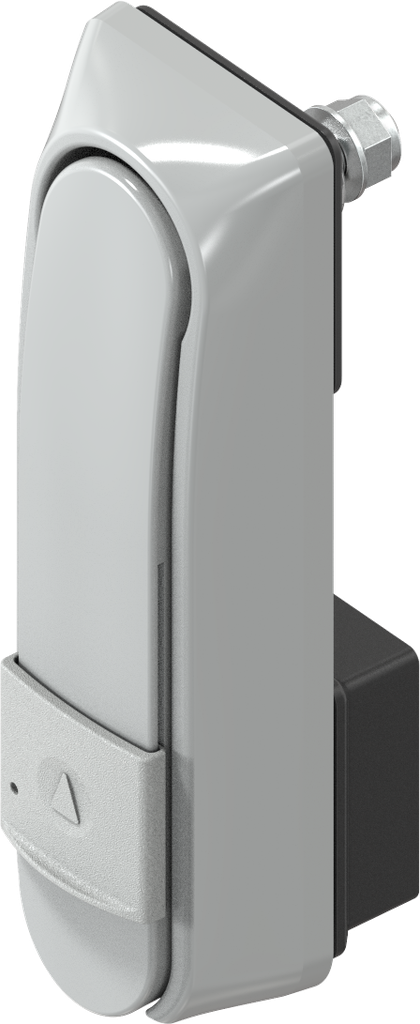

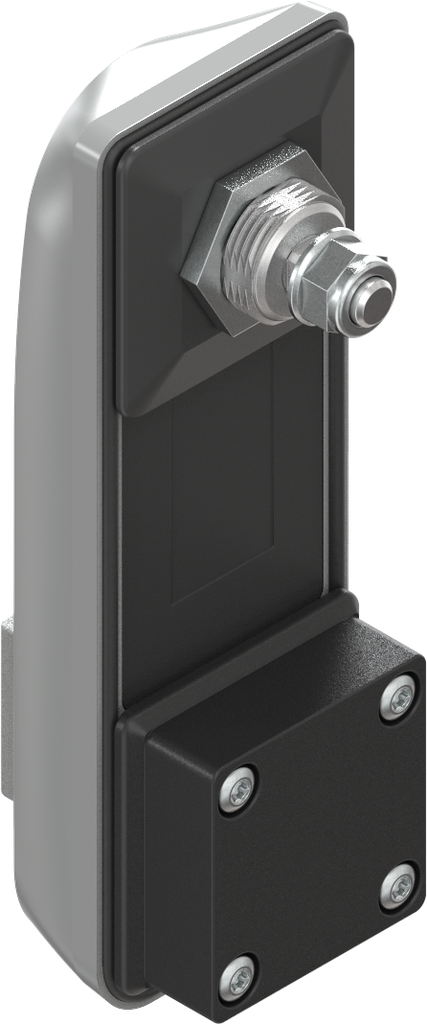

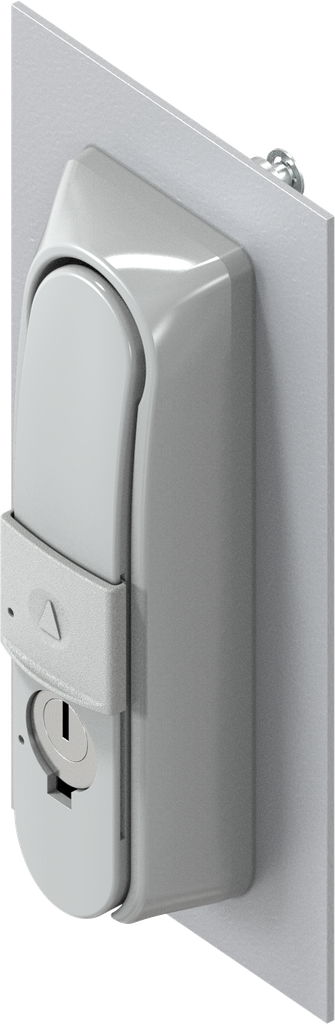

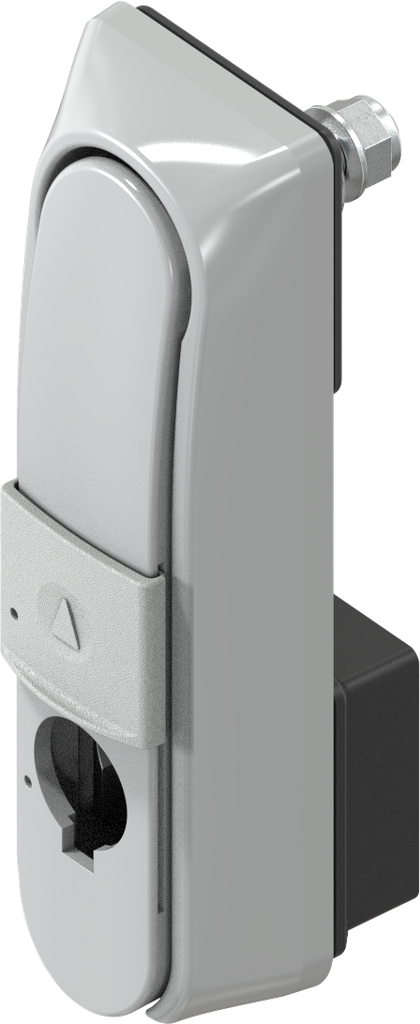

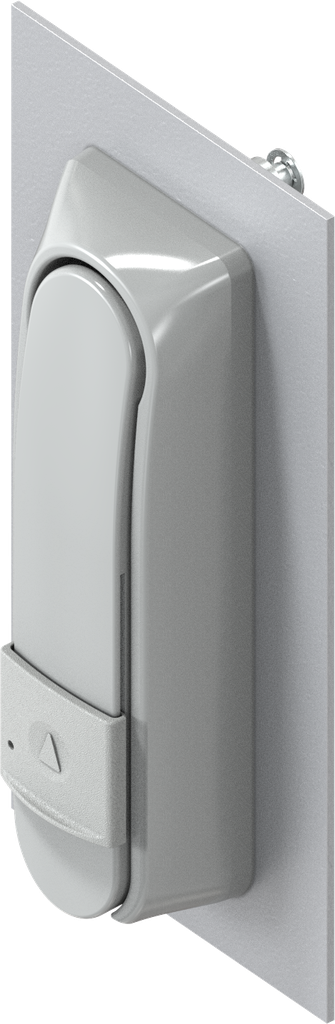

Swinghandle "short" with RC2 for KABA type 1514, Zinc die grey powder-coated RAL 7038; 1317-U158-BO

https://www.emka.com/products/1317-u158-bo https://www.emka.com/web/image/product.template/348713/image_1920?unique=564970e

for cam

    This combination does not exist.

    Inside the sealing Foamed seal Protection class IP 65 DIN EN 61373 (shock and vibration testing) DIN EN 1630 class RC2 / WK2 (resistivity) DIN EN 50102 - IK10 (shock resistance) Left Right
    Contact Us

    Product Benefits:

    • The swinghandle has successfully passed the RC2 DIN EN 1630 test The test protection class IK 10 according to DIN EN 50102 was successfully passed Integrated scratch protection prevents surface damage (handle / dish)
    • The test protection class IK 10 according to DIN EN 50102 was successfully passed
    • Integrated scratch protection prevents surface damage (handle / dish)

    Product information:

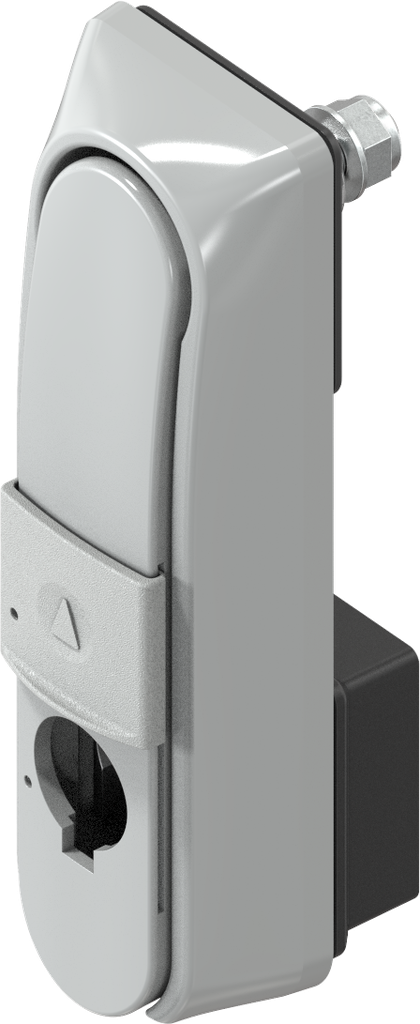

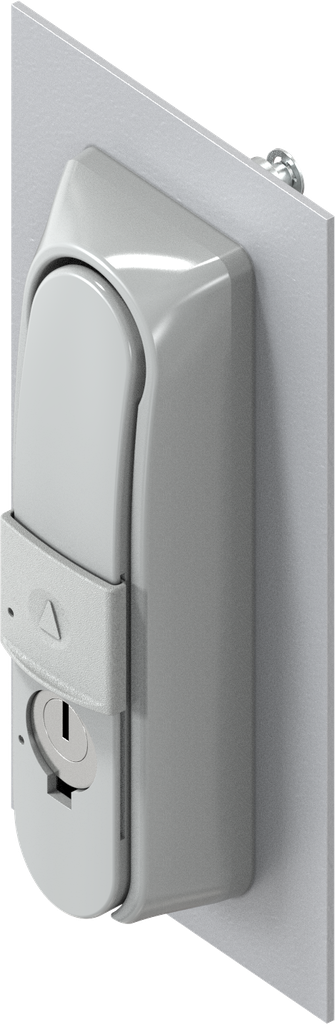

    RC2 DIN EN 1630 is achieved by profile half-cylinder according to DIN EN 18252-BZ or DIN EN 1303 with resistance class 2 with protection against drilling and pulling. The profile half cylinder should be certified and monitored by PIV CERT or alternatively by a certification body according to DIN EN ISO/IEC 17065. Note: Without profile half cylinder opening is only possible with key 1004-44-01AA. Profile half cylinder: 40 mm and 45 mm; Set locking cam to 6 or 7 o'clock. At 3 or 5 o'clock no push-to-close. Sealable: yes Ts > 6 mm - 8 mm on request


    Note: Without profile half cylinder opening is only possible with key 1004-44-01AA.


    Profile half cylinder: 40 mm and 45 mm; Set locking cam to 6 or 7 o'clock. At 3 or 5 o'clock no push-to-close.

    Sealable: yes

    Ts > 6 mm - 8 mm on request

    Assembly instruction:

    In case of the mechanical and the electromechanical model, only type KABA 1514 can be used.
    Internal Reference: 1317-U158-BO
    Product Type: Swinghandle, Lifthandle
    Program: 1317
    Catalog sheet: 3AB-180
    Material of the module : Zinc die
    Surface of the module: grey powder-coated RAL 7038
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Attachment of the trough: Screw-on cap IP 65
    Mounting Positions : Inside the sealing
    Foamed gasket: Yes
    Handle Art(1): Swinghandle
    Integrated scratch protection: Yes

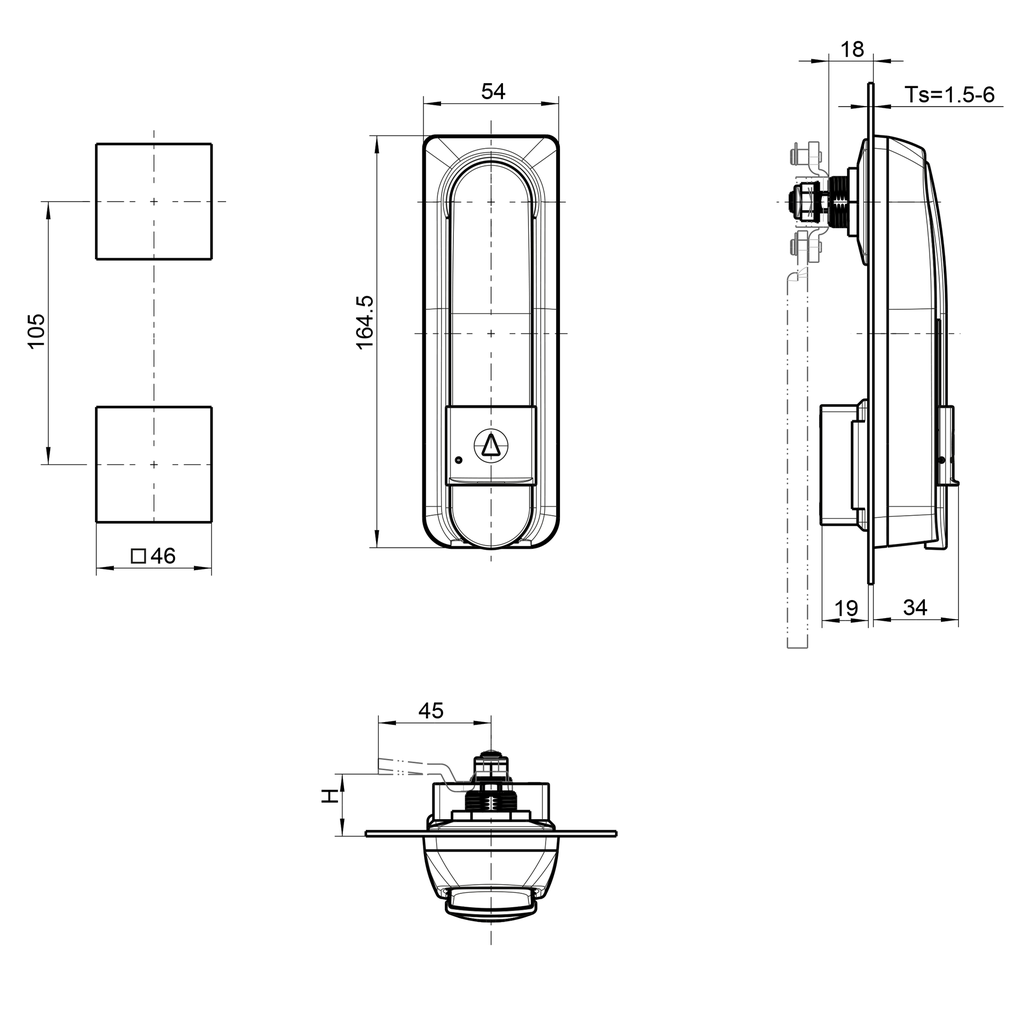

    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 6 mm
    Sealable: Yes
    Test according to RC2 DIN EN 1630 (WK2 DIN V ENV 1630): Yes
    Test rating IK 10 following DIN EN 50102: Yes
    Locking set: KABA type 1514
    Key Removable: Key can be withdrawn in any handle position
    Shock and vibration testing according to DIN EN 61373: Yes
    Swivel Handle: 34 mm
    Pan Handle Length: 165 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right

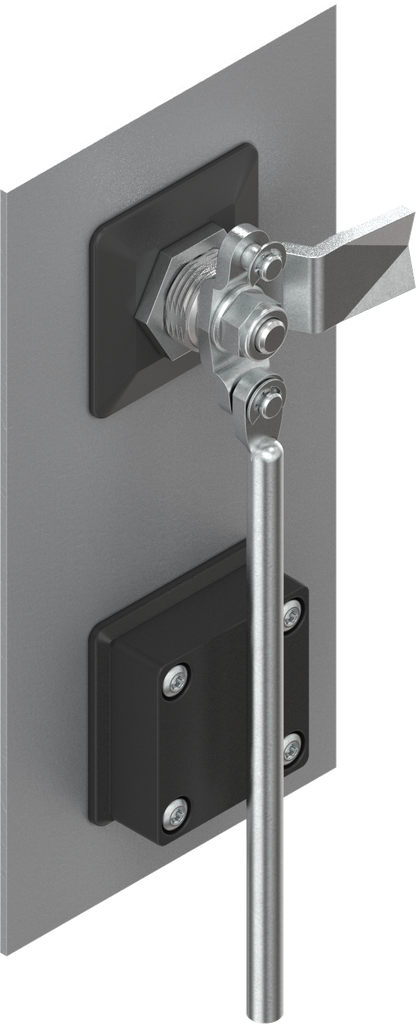

    Locking components: Cam
    No Specifications
    View All Products
    Cam

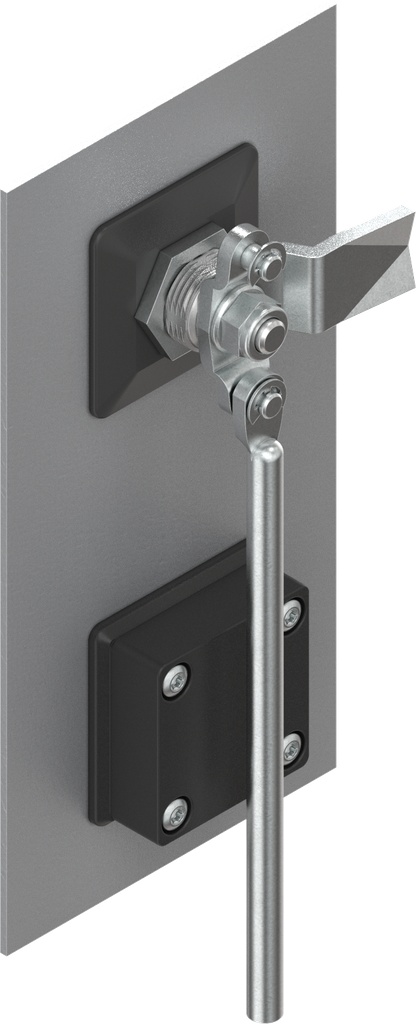

    Rod control
