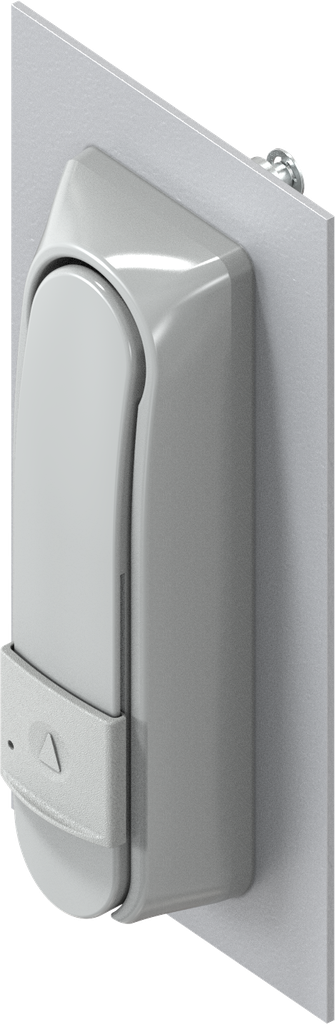

Swinghandle "short" with RC2, with electromechanical release and for KABA type 1514, Zinc die grey powder-coated RAL 7038

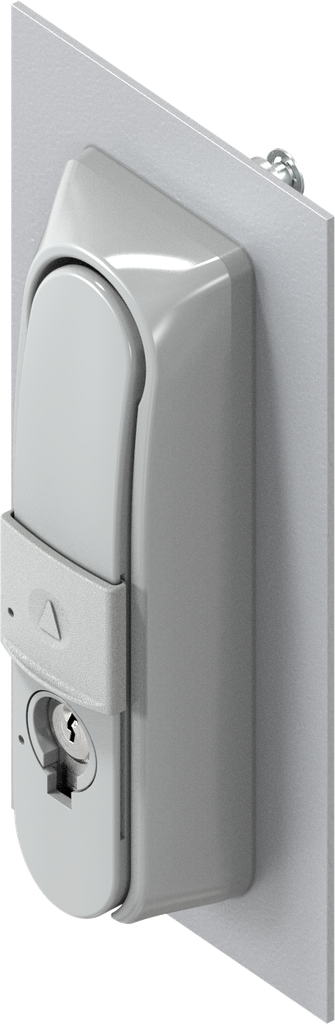

Double cylinder swinghandle "long" with RC2 for profile half cylinder 40 mm and 45 mm (A = 30 mm and 35 mm), Zinc die black powder-coated

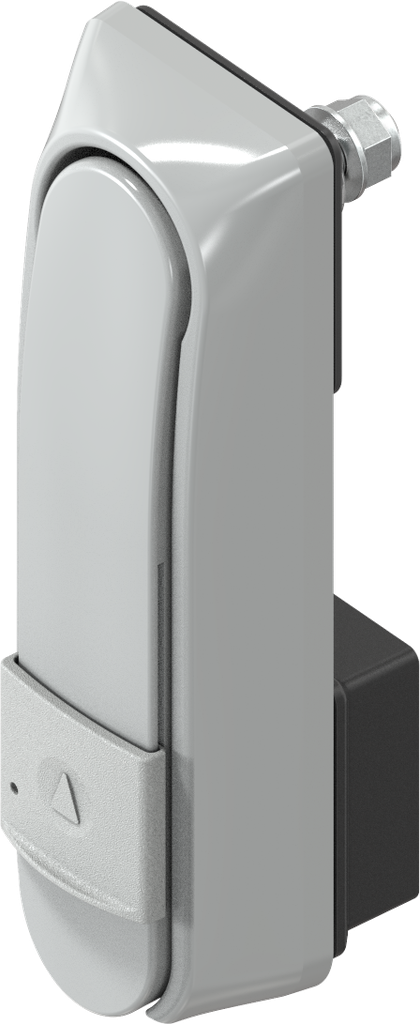

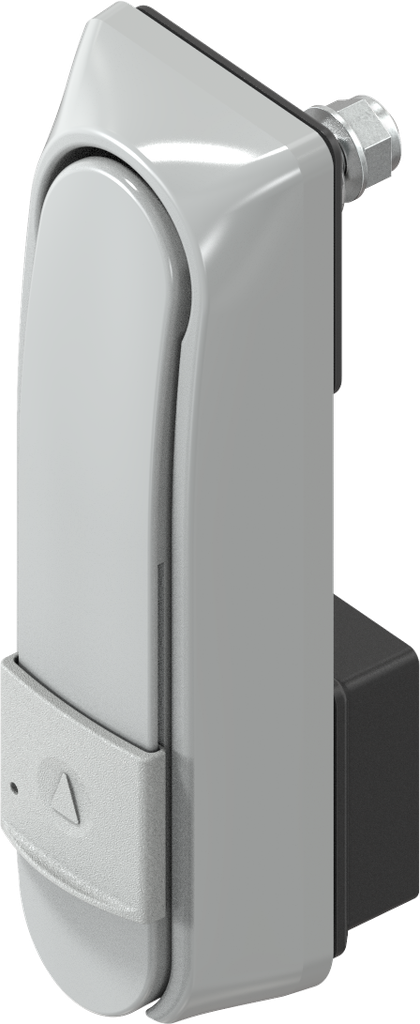

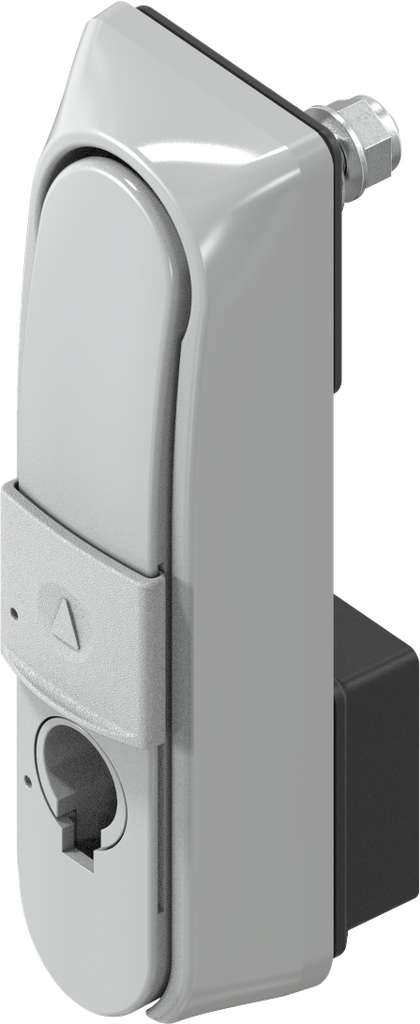

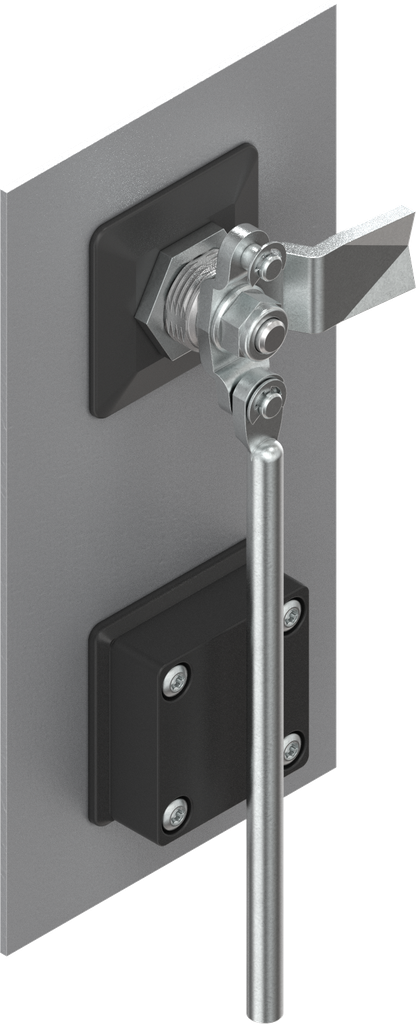

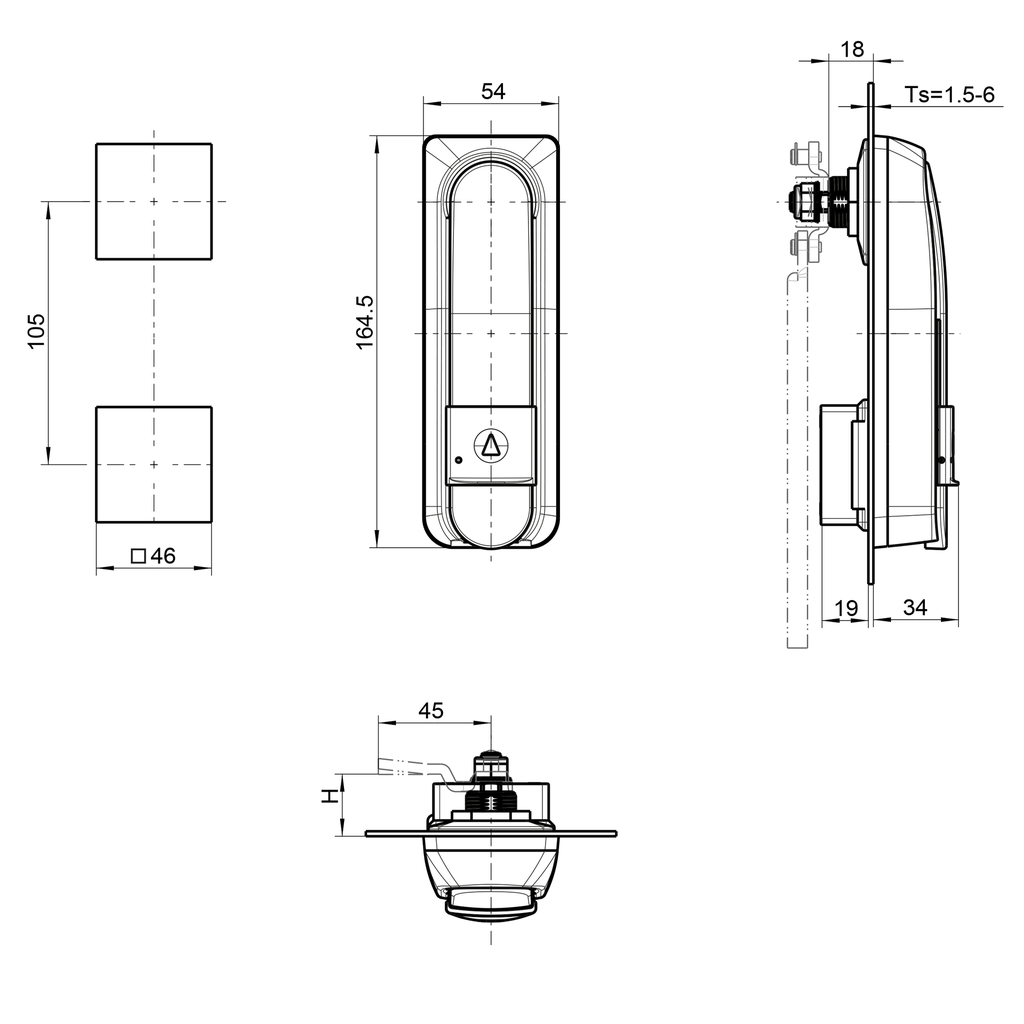

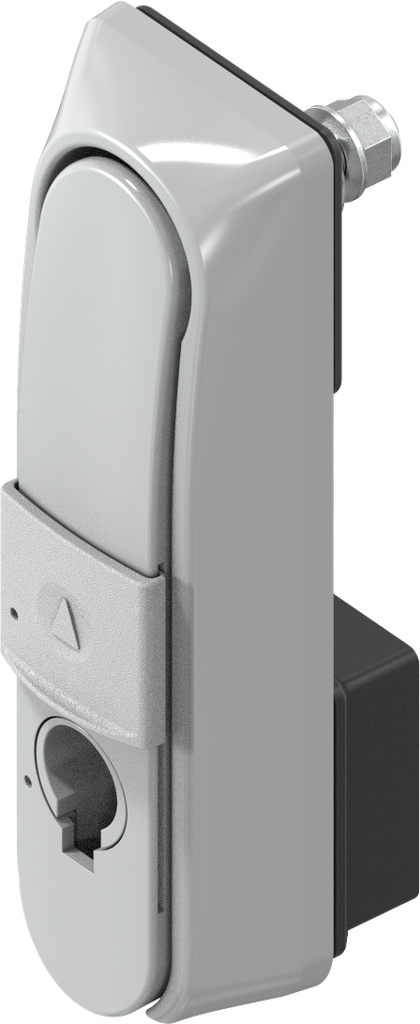

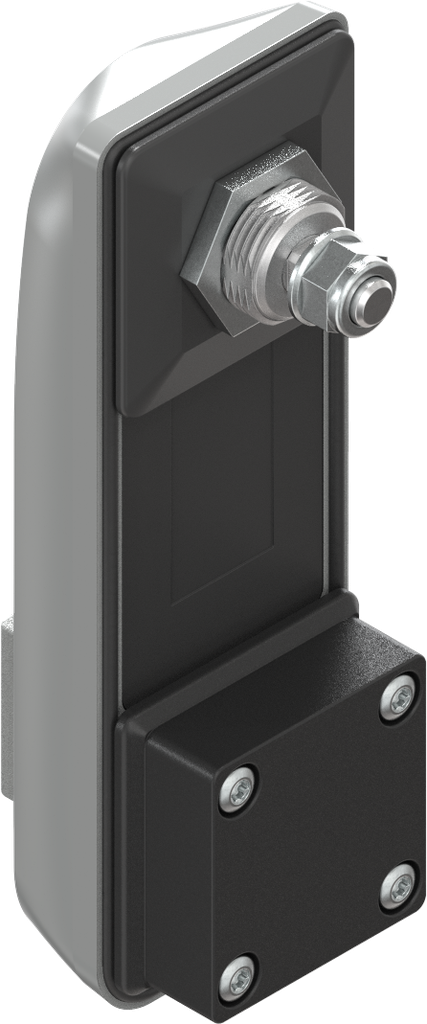

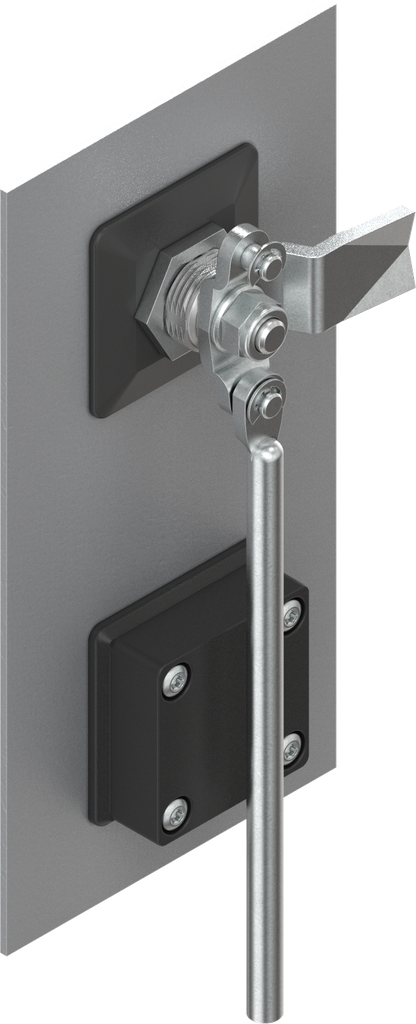

Swinghandle "short" with RC2 for profile half cylinder 40 mm or 45 mm (A = 30 mm or 45 mm) with additional locking cam position 30°, Zinc die grey powder-coated RAL 7038; 1317-U157-BO
for cam
Product Benefits:
- The swinghandle has successfully passed the RC2 DIN EN 1630 test The test protection class IK 10 according to DIN EN 50102 was successfully passed Integrated scratch protection prevents surface damage (handle / dish)
- The test protection class IK 10 according to DIN EN 50102 was successfully passed
- Integrated scratch protection prevents surface damage (handle / dish)
Product information:
RC2 DIN EN 1630, achieved by profile half-cylinder according to DIN EN 18252-BZ or DIN EN 1303 with resistance class 2 with protection against drilling and pulling. The profile half-cylinder should be certified and monitored by PIV CERT or alternatively by a certifying body according to DIN EN ISO/IEC 17065. Note: Without profile half cylinder opening is only possible with key 1004-44-01AA. Profile half cylinder: 40 mm and 45 mm; Set locking cam to 6 or 7 o'clock.
Assembly instruction:
In case of the mechanical and the electromechanical model, only the profile half-cylinder according to DIN EN 18252 and DIN EN 1303 can be used.
Internal Reference:
1317-U157-BO
Product Type:
Swinghandle, Lifthandle
Program:
1317
Catalog sheet:
3AB-180
Material of the module :
Zinc die
Surface of the module:
grey powder-coated RAL 7038
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
6 mm
Sealable:
Yes
Test according to RC2 DIN EN 1630 (WK2 DIN V ENV 1630):
Yes
Test rating IK 10 following DIN EN 50102:
Yes
Locking set:
Profile half cylinder A = 30,Profile half cylinder A = 35
Key Removable:
Key can be withdrawn in any handle position
Shock and vibration testing according to DIN EN 61373:
Yes
Swivel Handle:
34 mm
Pan Handle Length:
165 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam
No Specifications
