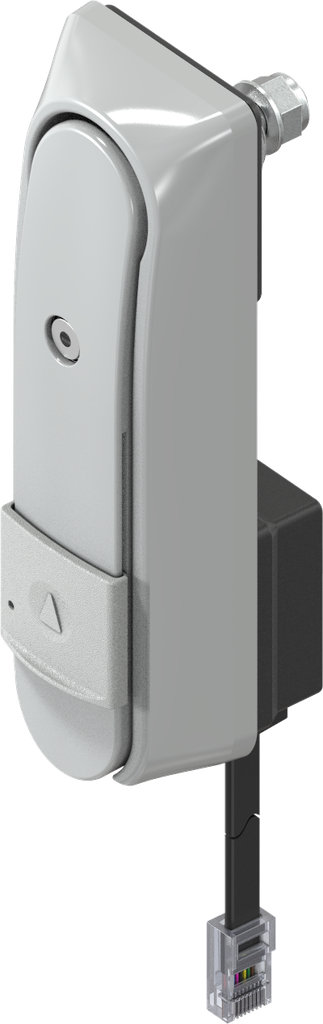

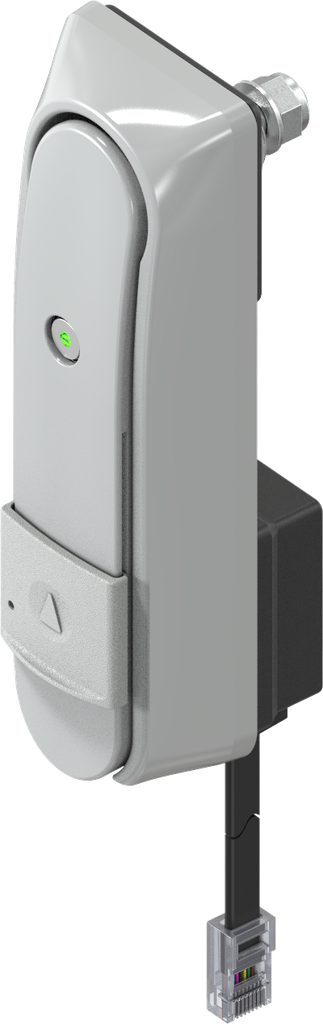

Swinghandle "short" with RC2, with electromechanical release and for KABA type 1514, Zinc die grey powder-coated RAL 7038; 1317-U156-BO
for cam
Product Benefits:
- The swinghandle has successfully passed the RC2 DIN EN 1630 test The test protection class IK 10 according to DIN EN 50102 was successfully passed Integrated scratch protection prevents surface damage (handle / dish)
- The test protection class IK 10 according to DIN EN 50102 was successfully passed
- Integrated scratch protection prevents surface damage (handle / dish)
Product information:
1 = white = motor V + 2 = brown = V - 3 = green = LED V + 4 = yellow = reed contact 5 = grey = - 6 = pink = motor position 1 7 = blue = motor position 2 8 = red = push button E = The pins 4, 6, 7, 8 must be provided with a pull-up resistor, pin 5 can be provided with a pull-up resistor. The motor must be directly controlled by a higher-level controller and can only be moved in one direction. To set the lock in the required status (locked/unlocked), not only the motor must be controlled, but also the motor position switches must be interrogated and evaluated. The following table serves to identify the corresponding status. F = motor position 1 G = motor position 2 H = handle status 10 = logical 0 11 = logical 1 12 = locked 13 = not defined 14 = unlocked RC2 DIN EN 1630, is achieved with profily half cylinder according to DIN EN 18252-BZ or DIN EN 1303 with the attacking resistance class 2 with protection against drilling and pulling. The profile half-cylinder should be certified and monitored by PIV CERT or alternatively by a certifying body according to DIN EN ISO/IEC 17065. Note: Without profile half cylinder opening is only possible with key 1004-44-01AA. Profile half cylinder: 40 mm and 45 mm; Set locking cam to 6 or 7 o'clock. At 3 or 5 o'clock no push-to-close Sealable: Yes Application range: Indoor and outdoor at -30°C up to +80°C Connection type: Plug RJ45 with connection cable (4 m) Release: By applying a 3 - 3.6 V DC signal Wake-up function: Yes, by push button Display: LED Remote monitoring: By built-in reed contact Locking: Push handle into recess until locking mechanism engages Emergency opening: Optional with 40 mm or 45 mm profile half cylinder Ts > 6 mm - 8 mm on request Whether the handle is open can be queried via a reed contact. The push button can be used for interaction in any form, as well as the LED for indication in any way.
RC2 DIN EN 1630, is achieved with profily half cylinder according to DIN EN 18252-BZ or DIN EN 1303 with the attacking resistance class 2 with protection against drilling and pulling. The profile half-cylinder should be certified and monitored by PIV CERT or alternatively by a certifying body according to DIN EN ISO/IEC 17065.
Note: Without profile half cylinder opening is only possible with key 1004-44-01AA.

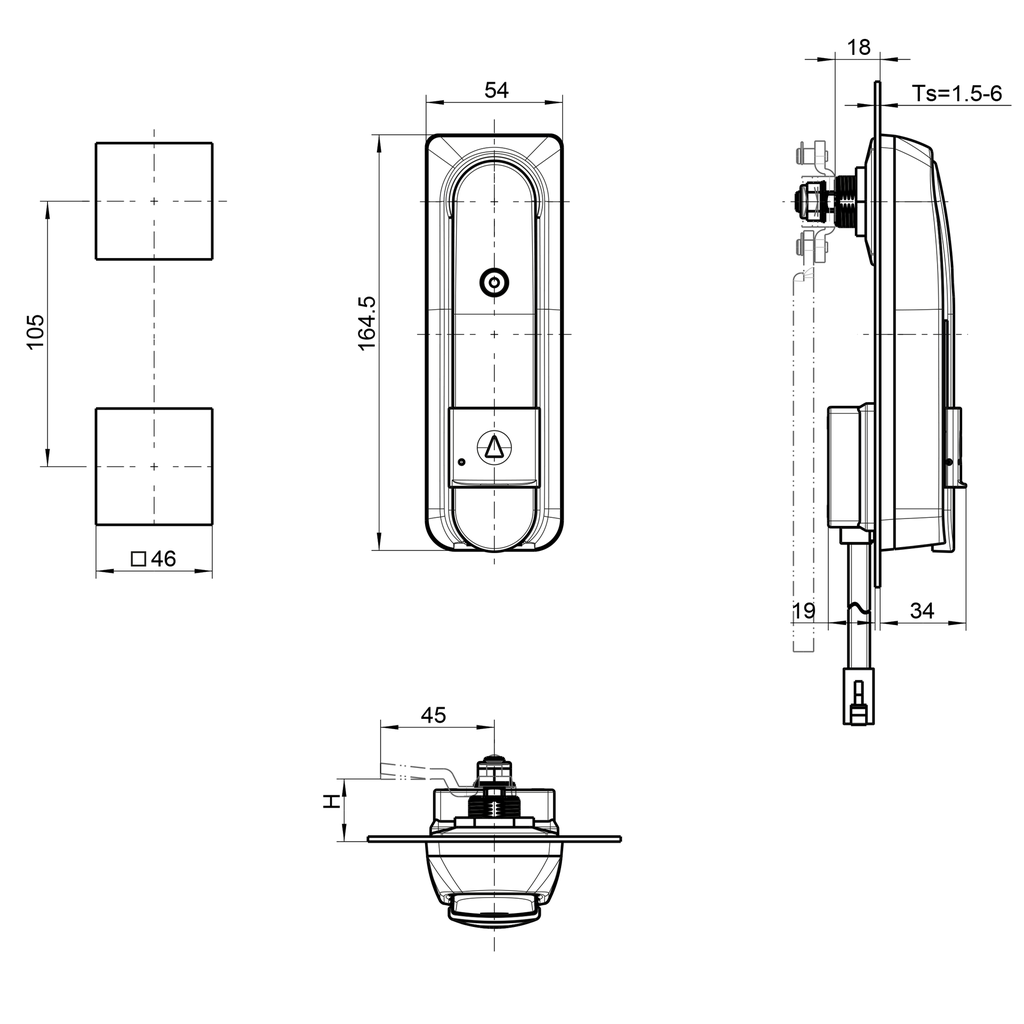

Profile half cylinder: 40 mm and 45 mm; Set locking cam to 6 or 7 o'clock. At 3 or 5 o'clock no push-to-close
Sealable: Yes
Application range: Indoor and outdoor at -30°C up to +80°C

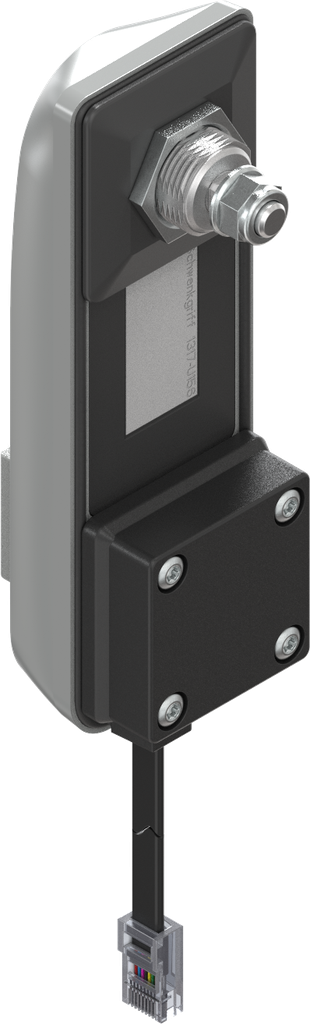

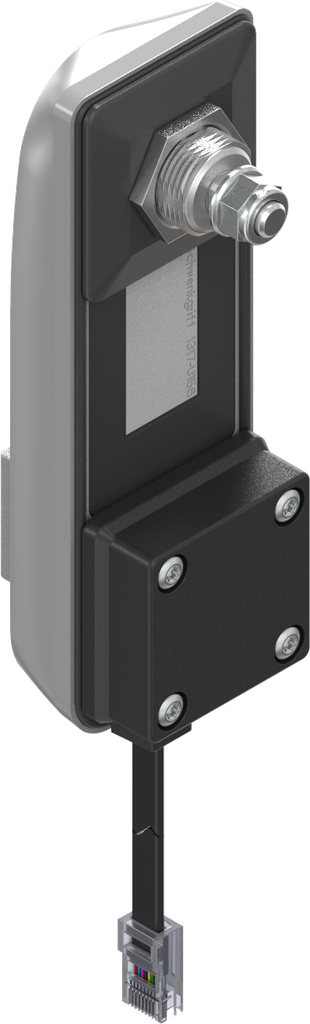

Connection type: Plug RJ45 with connection cable (4 m)
Release: By applying a 3 - 3.6 V DC signal
Wake-up function: Yes, by push button
Display: LED
Remote monitoring: By built-in reed contact

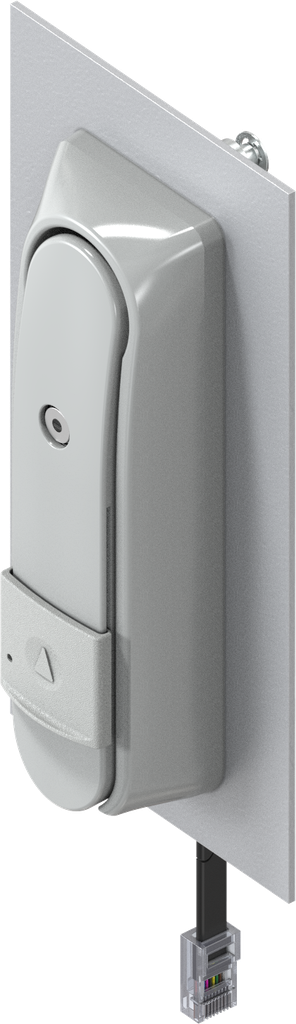

Locking: Push handle into recess until locking mechanism engages

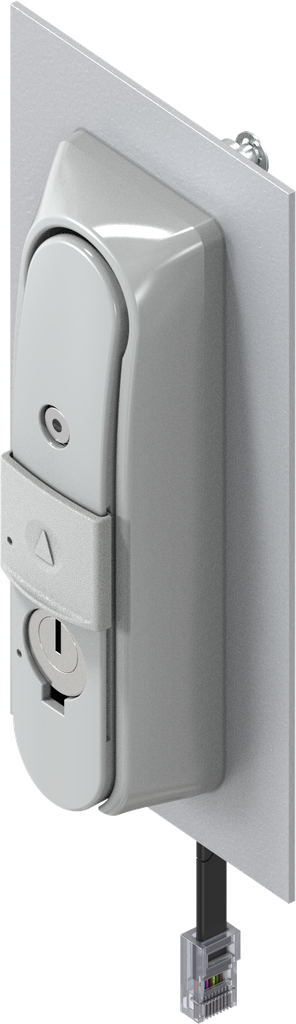

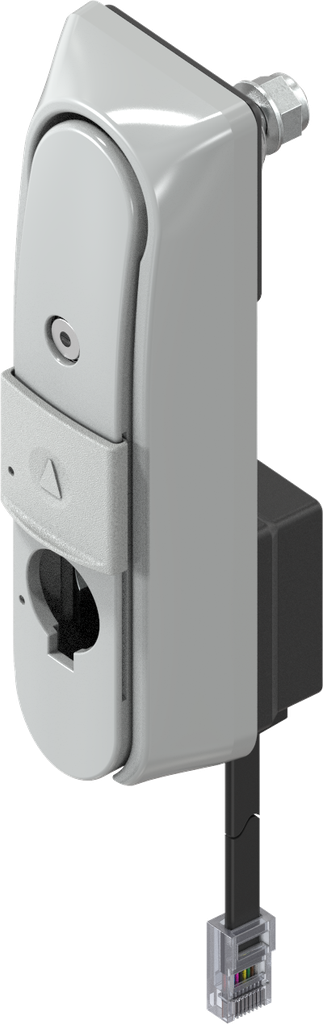

Emergency opening: Optional with 40 mm or 45 mm profile half cylinder
Ts > 6 mm - 8 mm on request
Whether the handle is open can be queried via a reed contact.
The push button can be used for interaction in any form, as well as the LED for indication in any way.

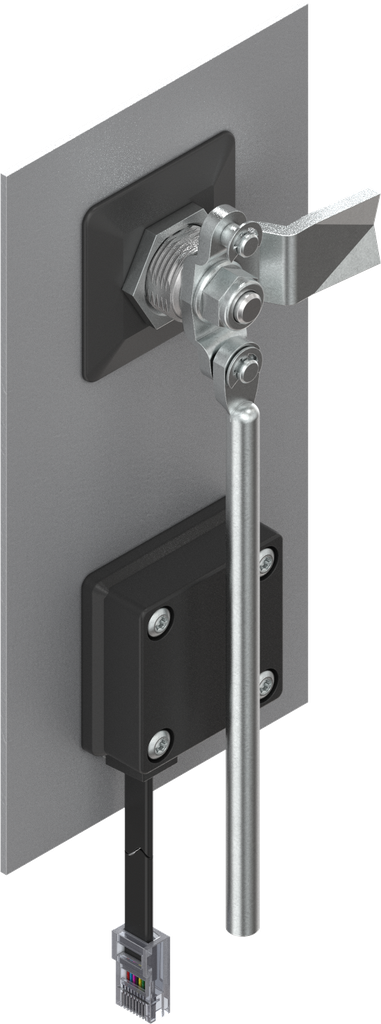

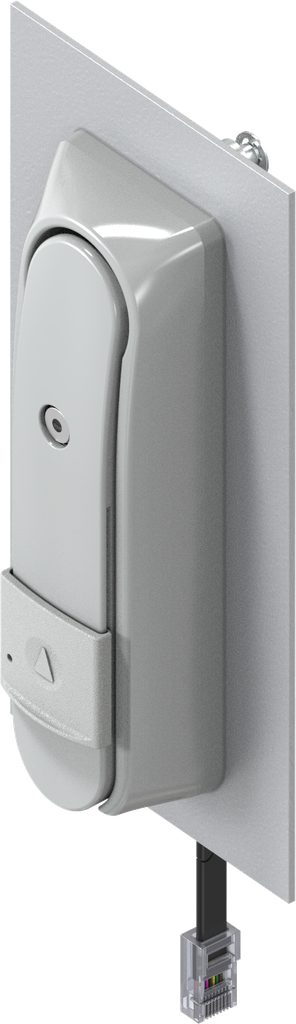

Assembly instruction:

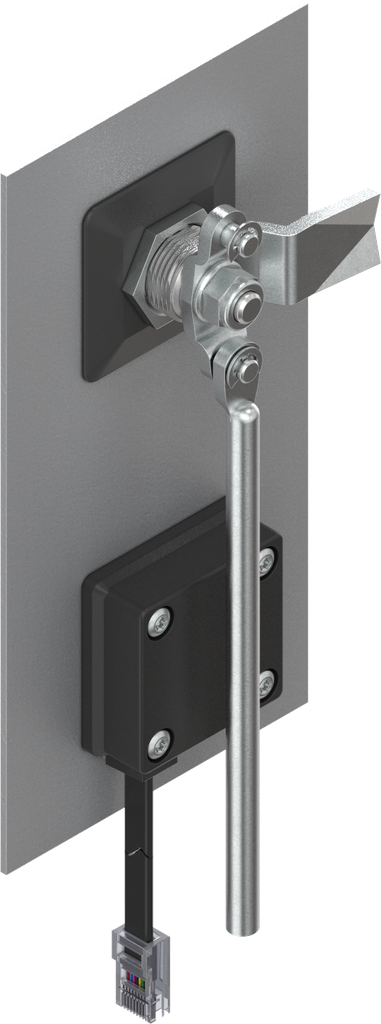

In case of the mechanical and the electromechanical model, only type KABA 1514 can be used.
