Swinghandle "long" with RC2 for profile half cylinder 45 mm (A = 35 mm), Zinc die black powder-coated

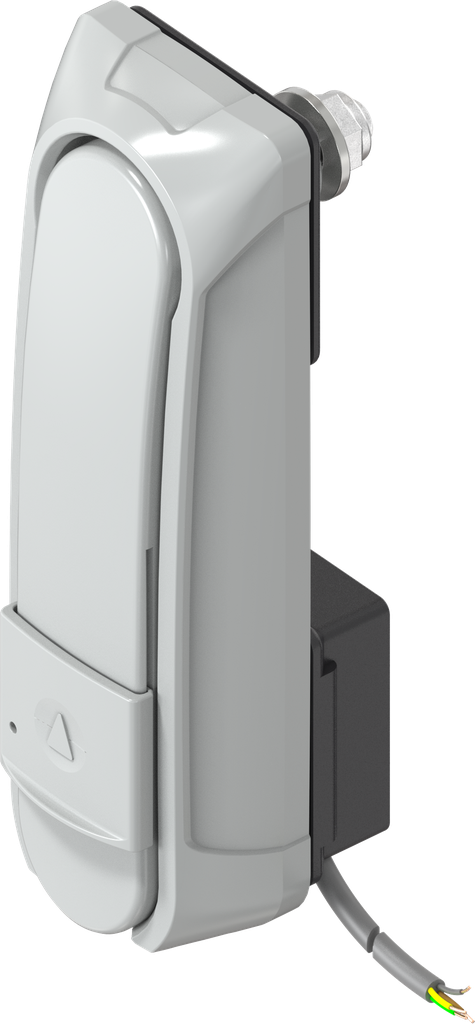

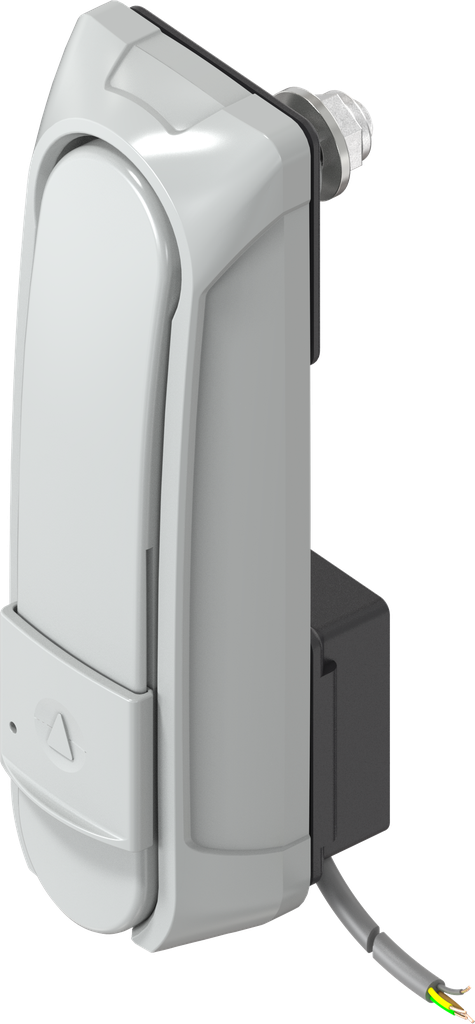

Swinghandle "short" with RC2, with electromechanical release and for profile half cylinder 40 mm or 45 mm (A = 30 mm or 45 mm), Zinc die grey powder-coated RAL 7038

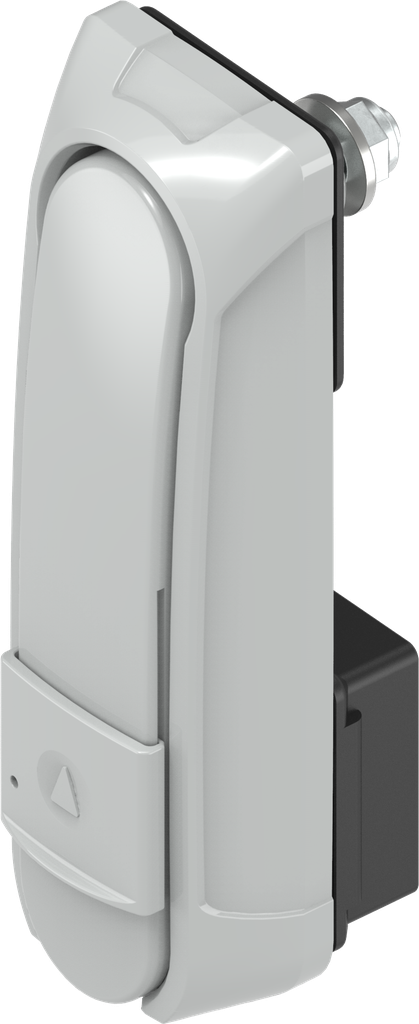

Swinghandle "short" with RC2, with electromechanical release and for profile half cylinder 40 mm or 45 mm (A = 30 mm or 45 mm), Zinc die grey powder-coated; 1317-U151-02HJ
for cam
Product Benefits:
- Zinc die type fulfills the requirements of resistance level RC2 (protection against vandalism) according to DIN V ENV 1630
- Great flexibility regarding price-performance ratio due to variety of types
- Checked and released by Deutsche Telekom
Function:
Assembly instruction:
Resistance class: RC2 DIN EN 1630, achieved by profile half cylinder according to DIN EN 18252-BZ or DIN EN 1303 with resistance class 2 with protection against drilling and pulling. The profile half cylinder should be certified and monitored by PIV CERT or alternatively by a certifying body according to DIN EN ISO/IEC 17065.
Akeneo Note:
Ts > 6 - 12 mm on request
Internal Reference:
1317-U151-02HJ
Product Type:
Swinghandle, Lifthandle
Program:
1317
Catalog sheet:
3AB-120
Material of the module :
Zinc die
Surface of the module:
grey powder-coated
Door return variable:
Yes
Anti-graffiti paint:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set and electromechanical version
Article with property rights:
Yes
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing
Electromechanical Unlocking :
48 V
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes
Emergency opening:
Yes
Without locking set:
Profile half cylinder, blind plug without spring-loaded ball
Suitable for door thickness from:
2 mm
Suitable for door thicknesses up to:
12 mm
Sealable:
Yes
Test according to RC2 DIN EN 1630 (WK2 DIN V ENV 1630):
Yes
Test rating IK 10 following DIN EN 50102:
Yes
Locking set:
Profile half cylinder A = 30,Profile half cylinder A = 35
locking set cover:
Yes
Key Removable:
Key can be withdrawn in any handle position
Shock and vibration testing according to DIN EN 61373:
Yes
Swivel Handle:
34.5 mm
Pan Handle Length:
165 mm
Door Version :
Left,Right
Locking components:
Cam
No Specifications
