Adapter profile half cylinder 45 mm (A = 35 mm), Polyamide GF black
Escutcheon 1321 with hook, Polyamide GF black

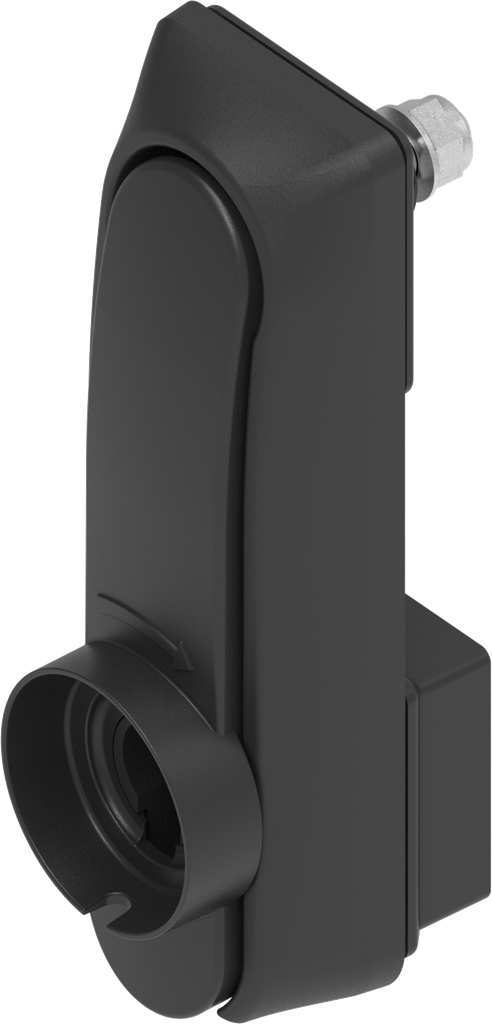

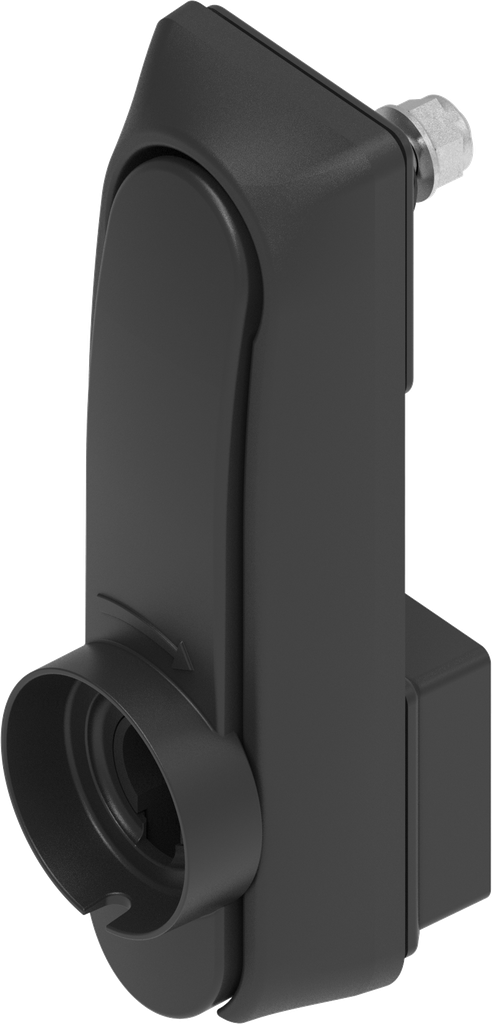

Swinghandle for iLOQ profile half cylinder, Polyamide and zinc die black powder-coated for outdoor use; 1317-SU33
for cam and for iLOQ no. D50S.511.SD (recommended) and D50S.111.SD
Internal Reference:
1317-SU33
Standards:
Protection class IP 65, DIN EN 50102 - IK10 (shock resistance)
Barcode:
1317-SU0033-0000000
Product Type:
Swinghandle, Lifthandle
Program:
1317
Material of the module :
Polyamide and zinc die
Surface of the module:
black powder-coated for outdoor use
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing
GH Mass:
18.0000 MILLIMETER
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes
Suitable for door thickness from:
2 mm
Suitable for door thicknesses up to:
6 mm
Locking set:
iLOQ No. D50S.511.SD (recommended) or D50S.111.SD
Shock and vibration testing according to DIN EN 61373:
Yes
Swivel Handle:
46 mm
Pan Handle Length:
165 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
