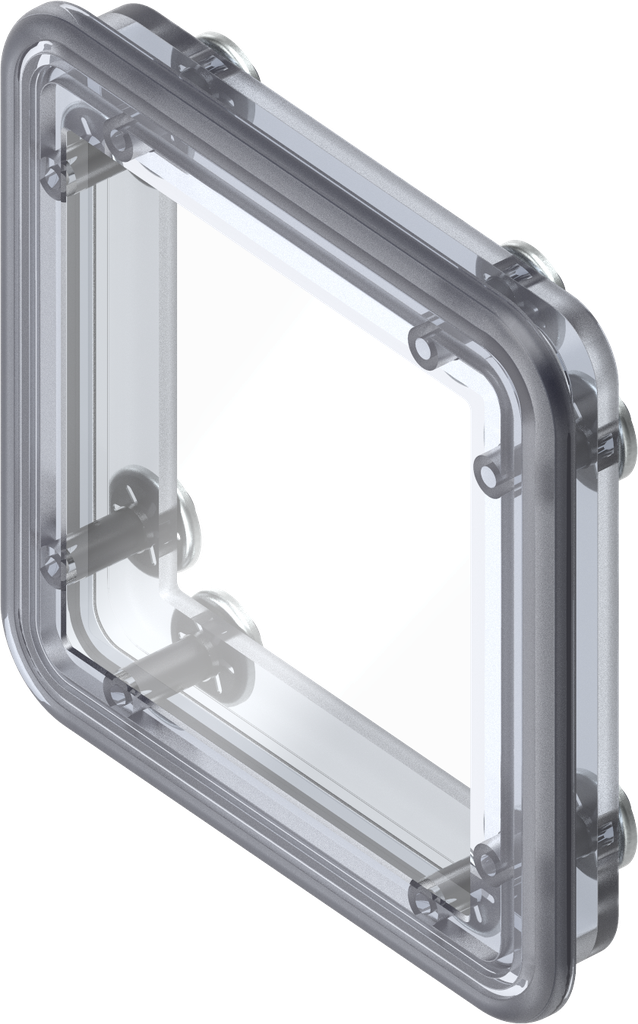

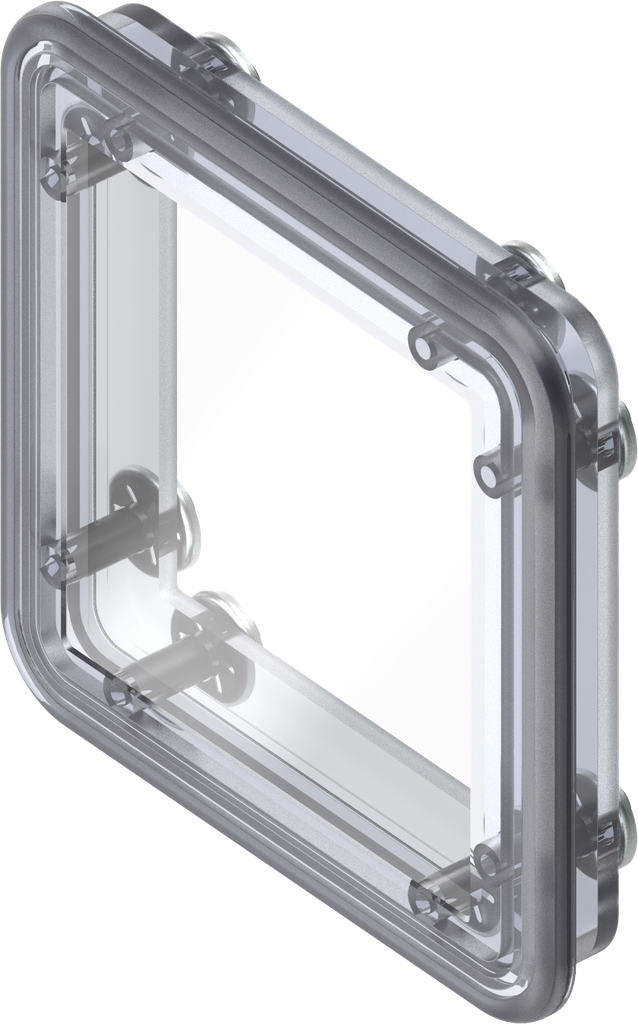

Viewing window, foamed, with frame, Polycarbonate crystal clear; 1250-U5

https://www.emka.com/products/1250-u5 https://www.emka.com/web/image/product.template/65185/image_1920?unique=20d97f0

    This combination does not exist.

    Foamed seal Protection class IP 65
    Contact Us

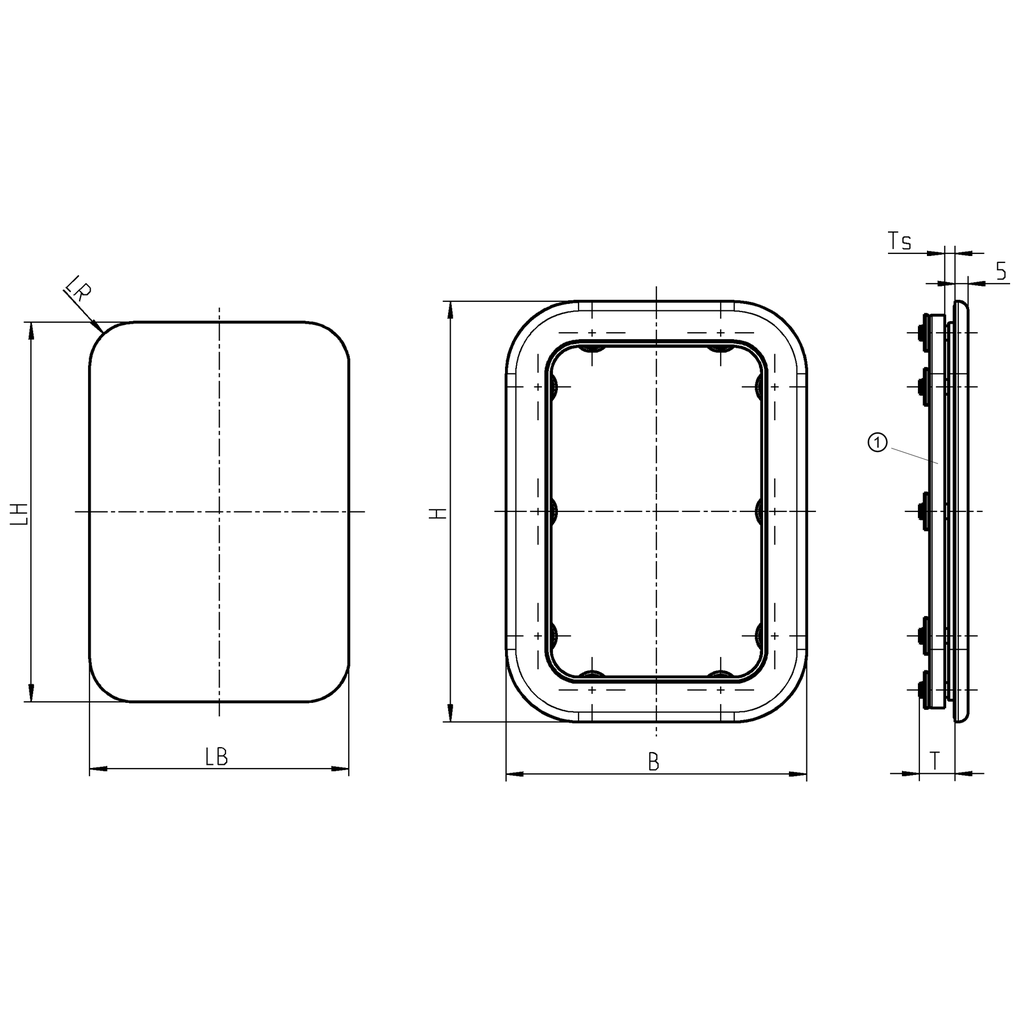

    Product information:

    1 = Frame
    H = 110 mm
    B = 110 mm
    LH = 95.5 mm
    LB = 95.5 mm
    LR = 6 mm
    T = 17 mm
    Internal Reference: 1250-U5
    Product Type: Viewing windows
    Program: 1250
    Catalog sheet: 8D-540
    Material of the module : Polycarbonate
    Surface of the module: crystal clear
    Foamed gasket: Yes
    Viewing Window: with shaft clamping rings with frame
    Viewing Window 1250: B = 110; H = 110
    Window 1250; door thickness up to: 5 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
