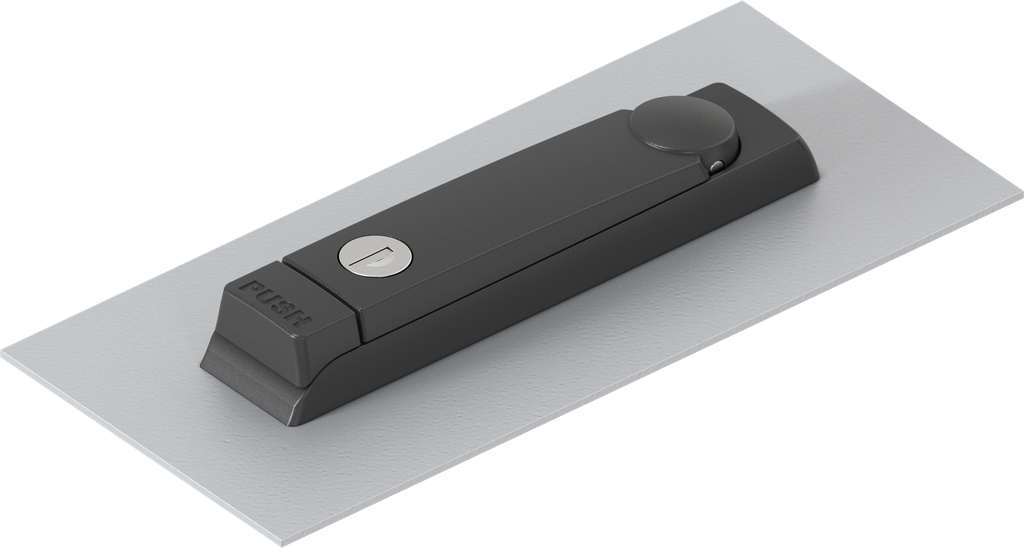

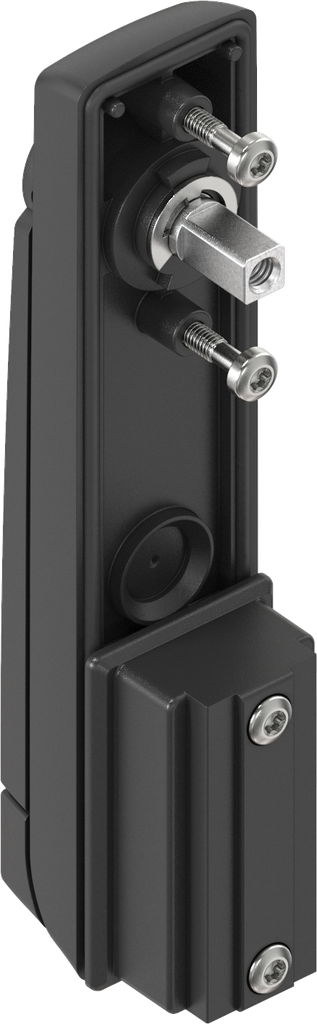

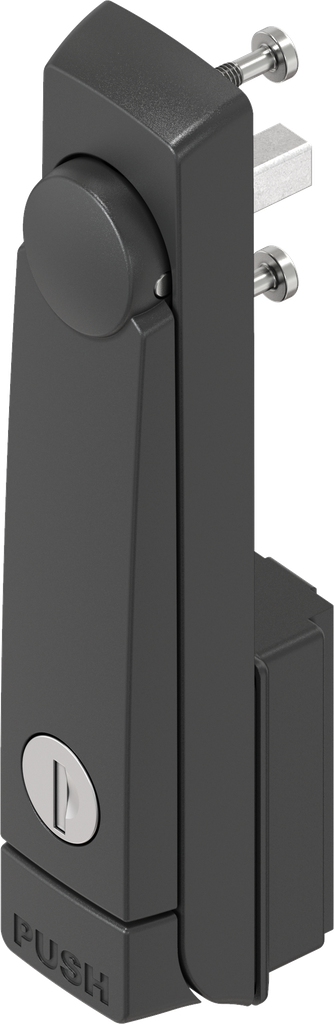

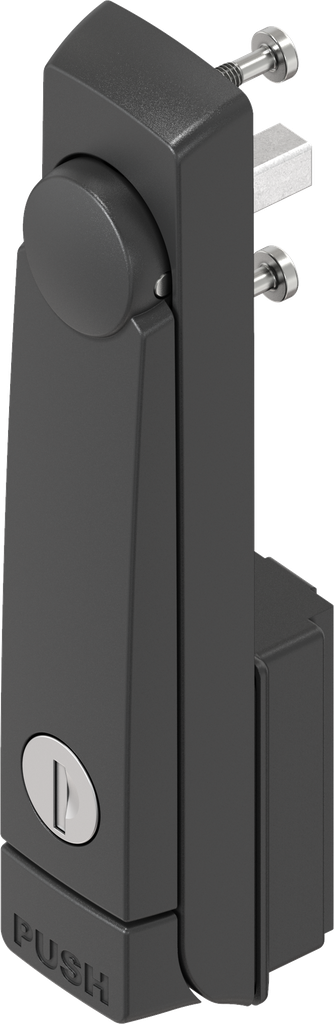

Swinghandle with push button and round cylinder, keyed EK 333, Zinc die black powder-coated; 1225-U302
Product information:
On request: Cap without foamed seal for small bending area
Internal Reference:
1225-U302
Product Type:
Swinghandle, Lifthandle
Program:
1225
Catalog sheet:
3G-260
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set and push button
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing,Outside the sealing
Grounding possible:
Yes
Foamed gasket:
Yes

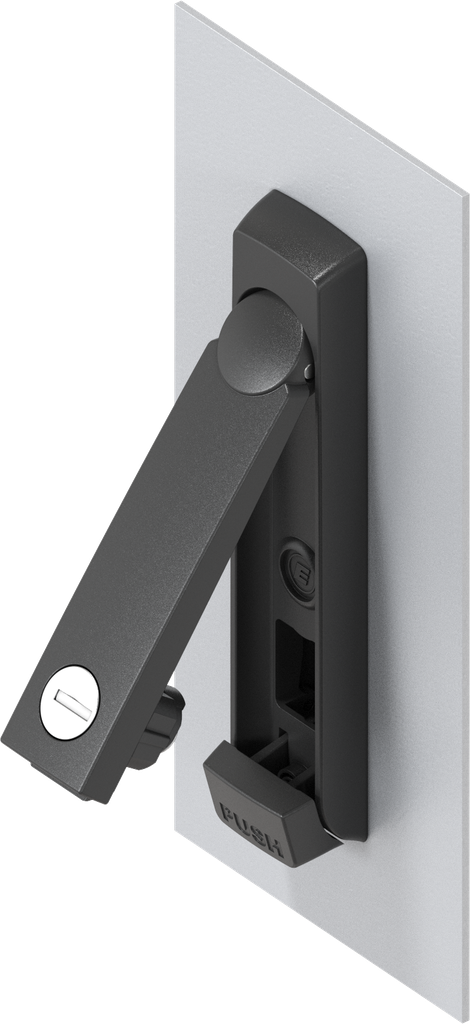

Consistent convenient swinging:
Yes
Handle Art(1):
Swinghandle

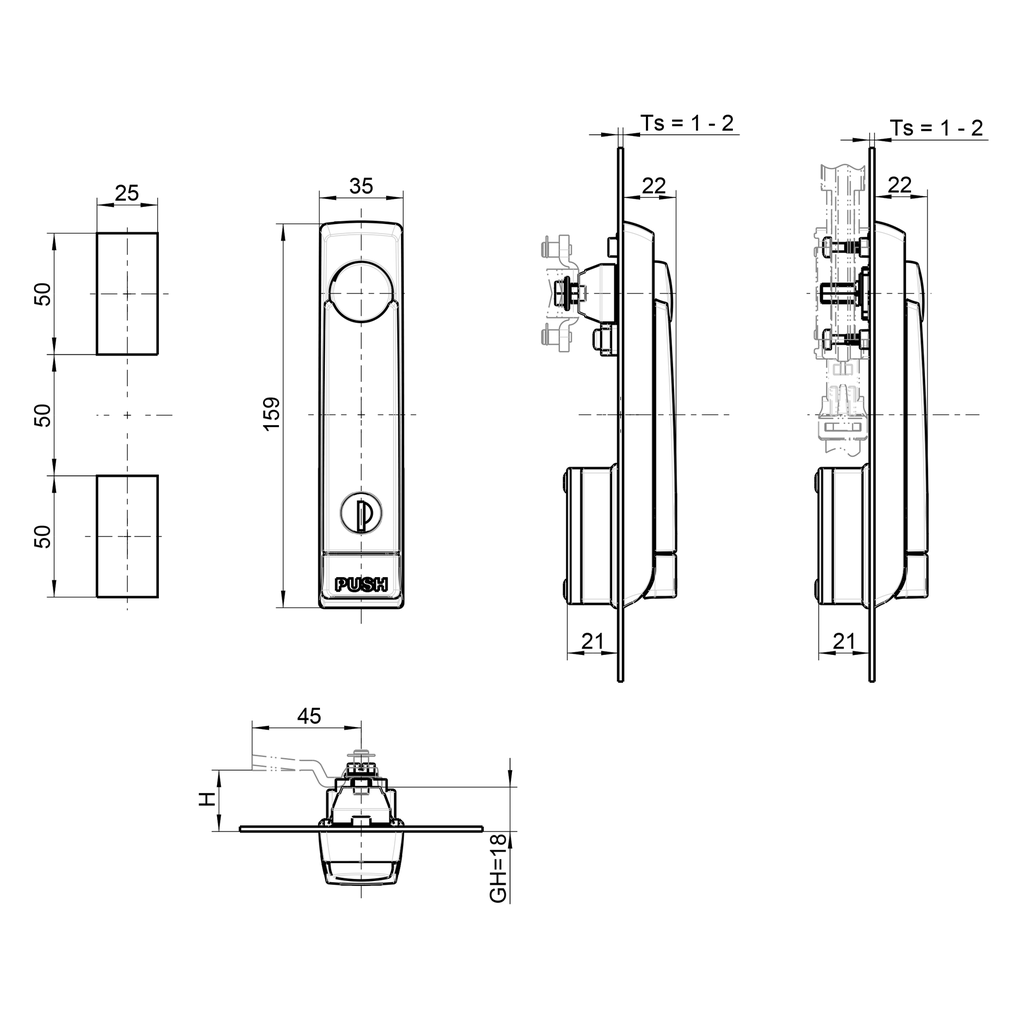

Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
2 mm
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking set:
Round cylinder,Push button
Key Removable:
Key can be withdrawn in any handle position
Swivel Handle:
22 mm
Pan Handle Length:
159 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right

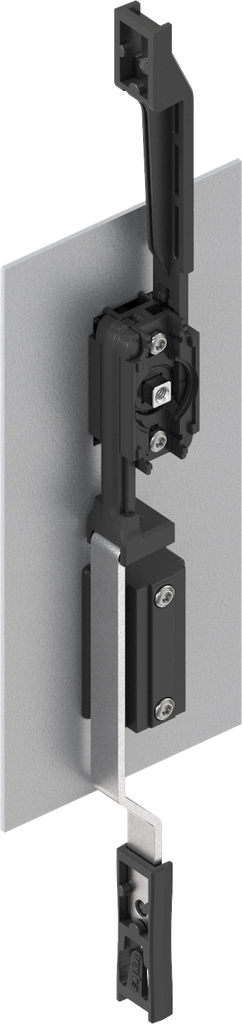

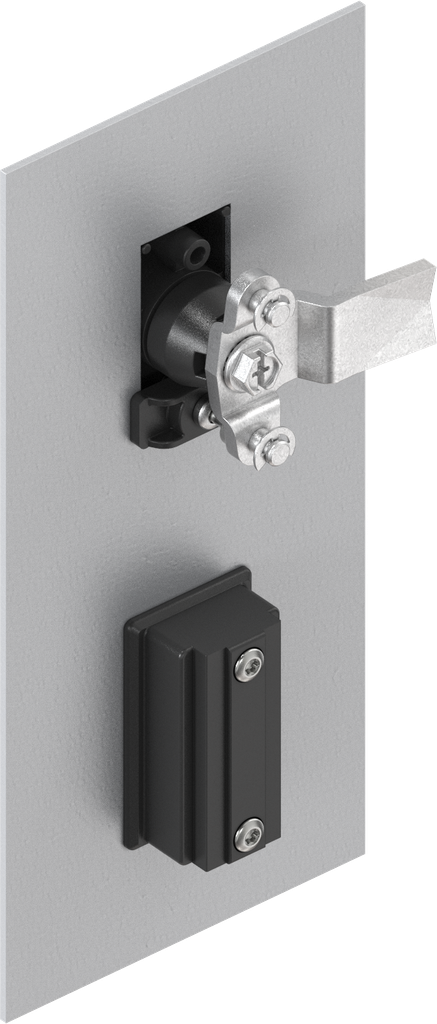

Locking components:
Cam,Rod control
