Double cylinder swinghandle for type KABA 1514, Zinc die black powder-coated
Double cylinder swinghandle for type KABA 1514, Zinc die black powder-coated
Swinghandle prepared for padlock and profile cylinder, Polyamide GF black
Swinghandle prepared for padlock and profile cylinder, Polyamide GF black

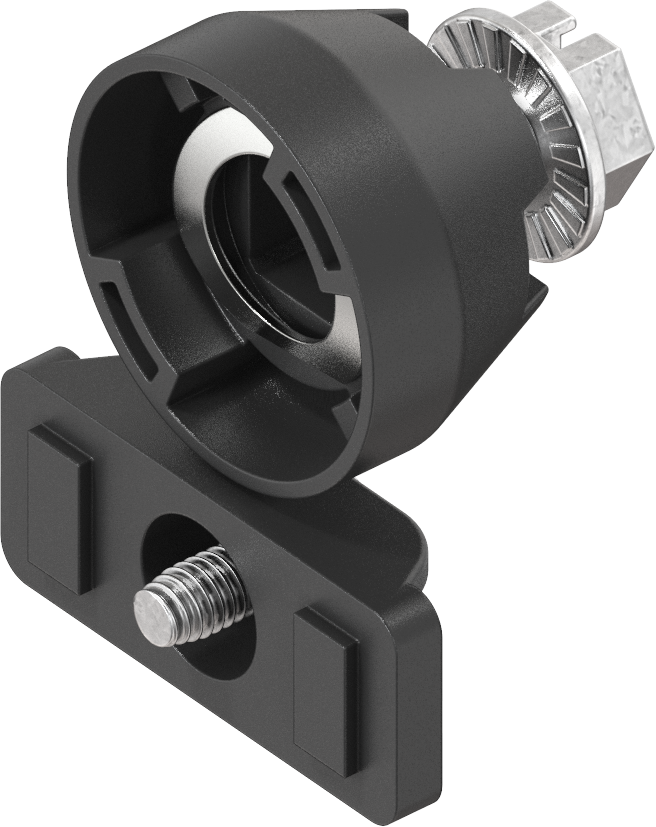

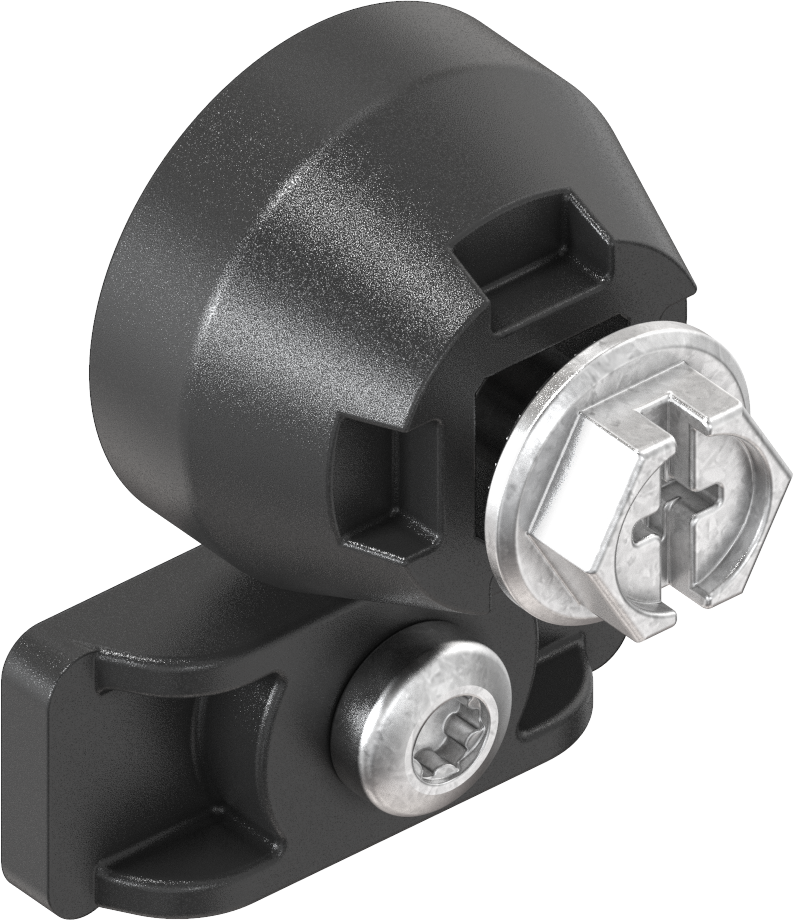

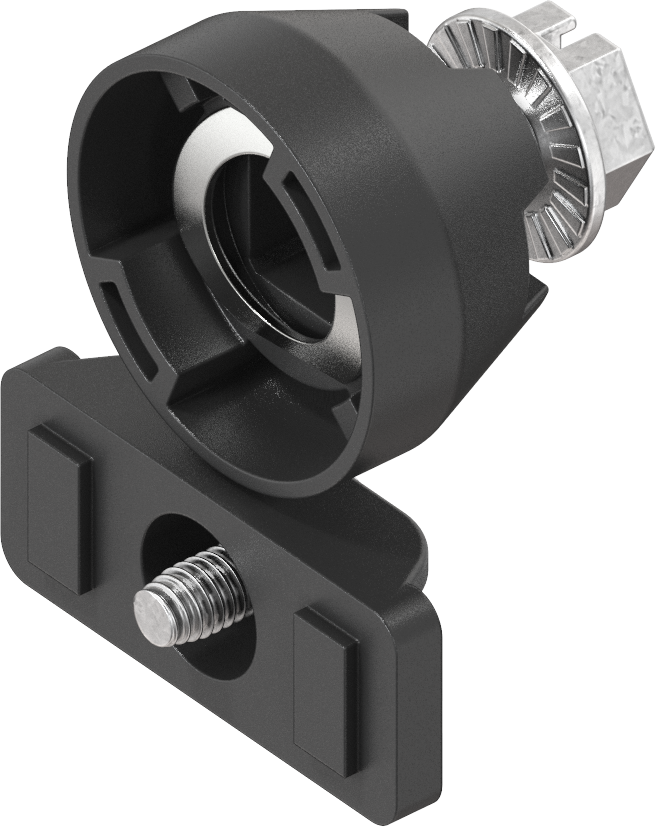

Adapter for cam and bridge, PBT GF and polyamide GF black; 1225-U101

https://www.emka.com/products/1225-u101 https://www.emka.com/web/image/product.template/230051/image_1920?unique=f336e6a

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1225-U101
    Product Type: Adapter
    Program: 1225
    Catalog sheet: 3G-260
    Material of the module : PBT GF and polyamide GF
    Surface of the module: black
    Adapter type: Adapter for cam for swinghandle
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Mounting Positions : Inside the sealing
    For GH measure: 18 mm
    No Specifications
    View All Products
    Cam
    Rod control
    Swinghandle, Lifthandle

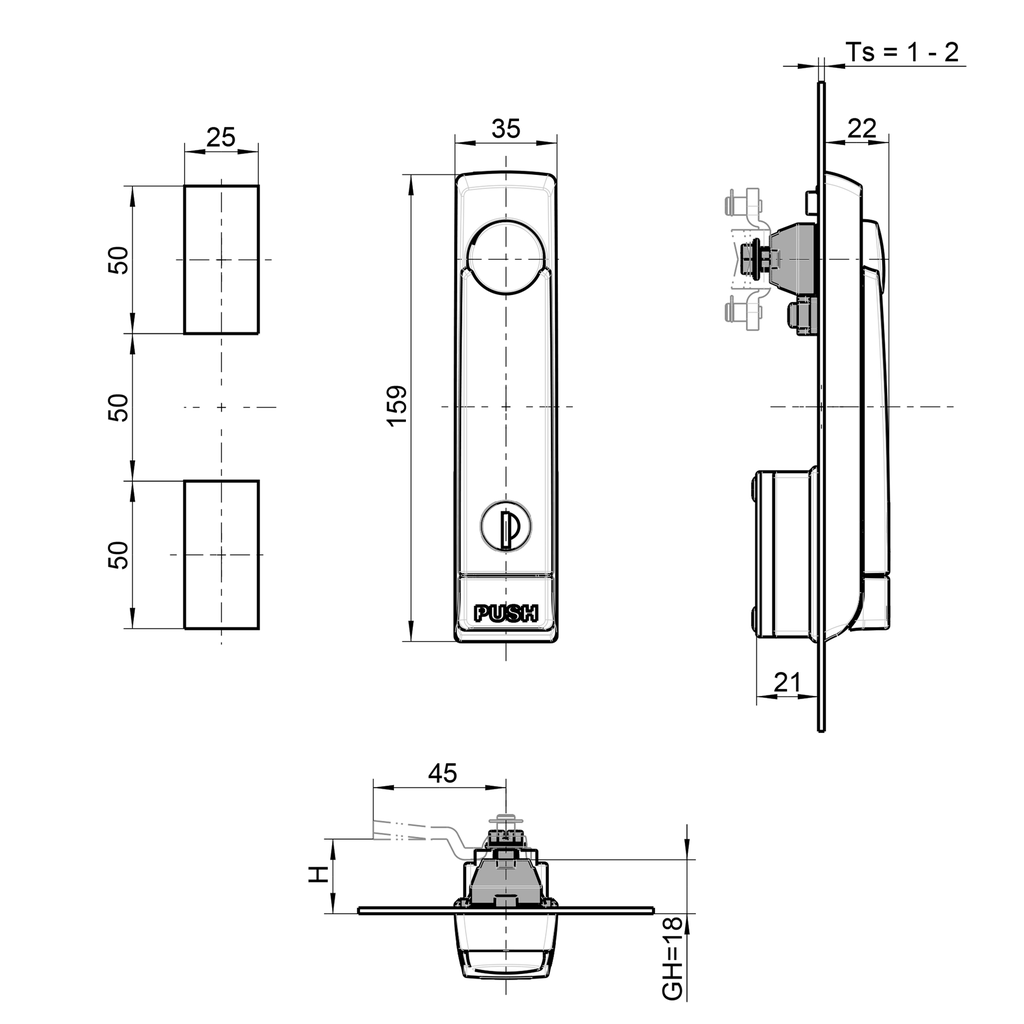

    Here you can find the product data sheets and CAD files of this product
