Escutcheon long with L-handle, non-keyed, Polyamide black and zinc die black powder-coated
Escutcheon long with L-handle, keyed different, Polyamide black and zinc die black powder-coated

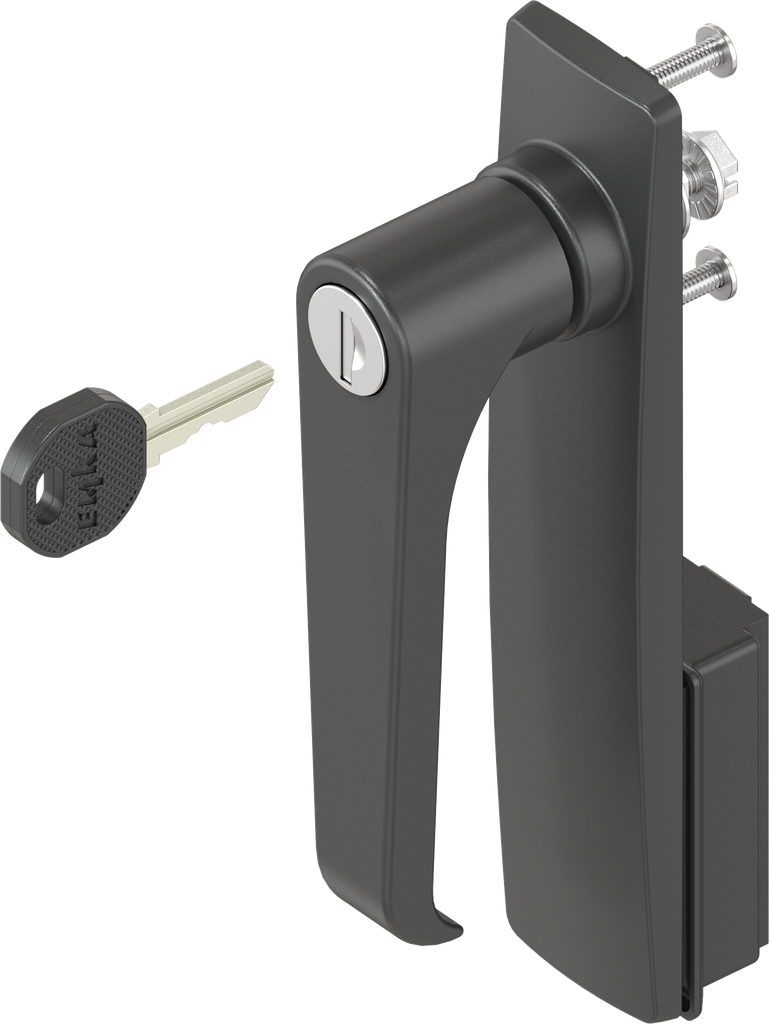

Escutcheon long with L-handle, keyed EK 333, Polyamide black and zinc die black powder-coated; 1223-U32
Internal Reference:
1223-U32
Product Type:
Escutcheon
Program:
1223
Catalog sheet:
3G-180
Material of the module :
Polyamide black and zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Mounting Positions :
Inside the sealing,Outside the sealing
Grounding possible:
Yes
Foamed gasket:
Yes
Handle Art:
L-handle
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2 mm
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking means key tag:
L-handle keyed EK 333
Key Tag Size:
long
Locking components:
Rod control,Bearing bush with cam
No Specifications
