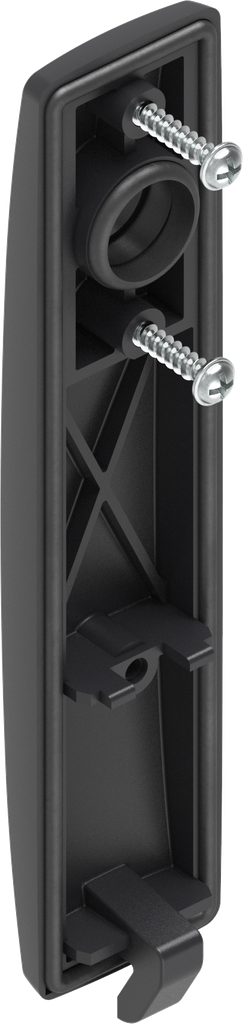

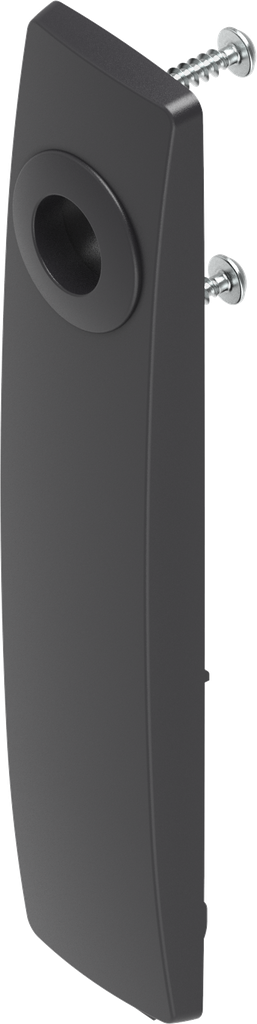

Escutcheon long for insert square, triangular, Daimler Benz and slot, Polyamide GF black; 1221-U19

https://www.emka.com/products/1221-u19 https://www.emka.com/web/image/product.template/229585/image_1920?unique=83f1e2e

    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Foamed seal Protection class IP 40
    Contact Us
    Internal Reference: 1221-U19
    Product Type: Escutcheon
    Program: 1221
    Catalog sheet: 3G-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Locking means key tag: Insert square, triangular, Daimler Benz, slot, etc.
    Key Tag Size: long
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Insert
    Rod control
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3G-120
    Product data sheet
    CAD file | 1221-U19_igs
    CAD file | 1221-U19_stp
