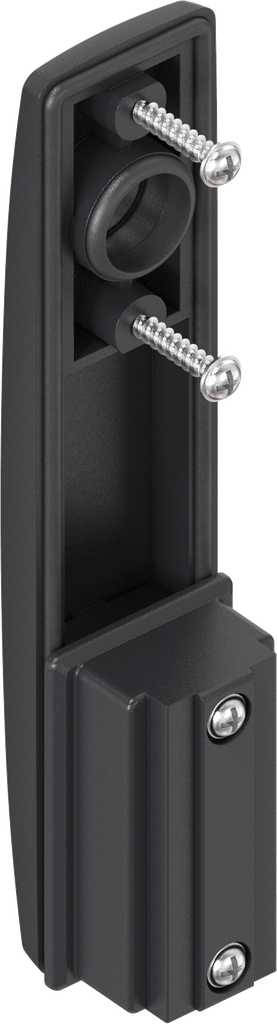

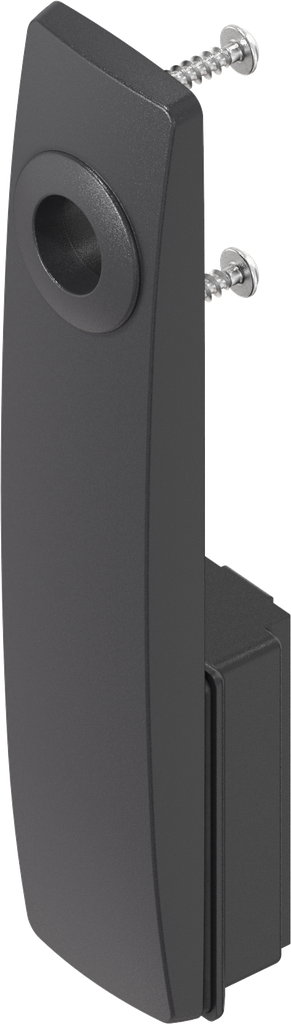

Escutcheon long for insert square, triangular, Daimler Benz and slot, Polyamide GF black; 1221-U133

https://www.emka.com/products/1221-u133 https://www.emka.com/web/image/product.template/65128/image_1920?unique=f86255a

    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Foamed seal Protection class IP 65
    Contact Us
    Internal Reference: 1221-U133
    Product Type: Escutcheon
    Program: 1221
    Catalog sheet: 3G-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Locking means key tag: Insert square, triangular, Daimler Benz, slot, etc.
    Key Tag Size: long
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Insert
    Rod control
    Bearing bush

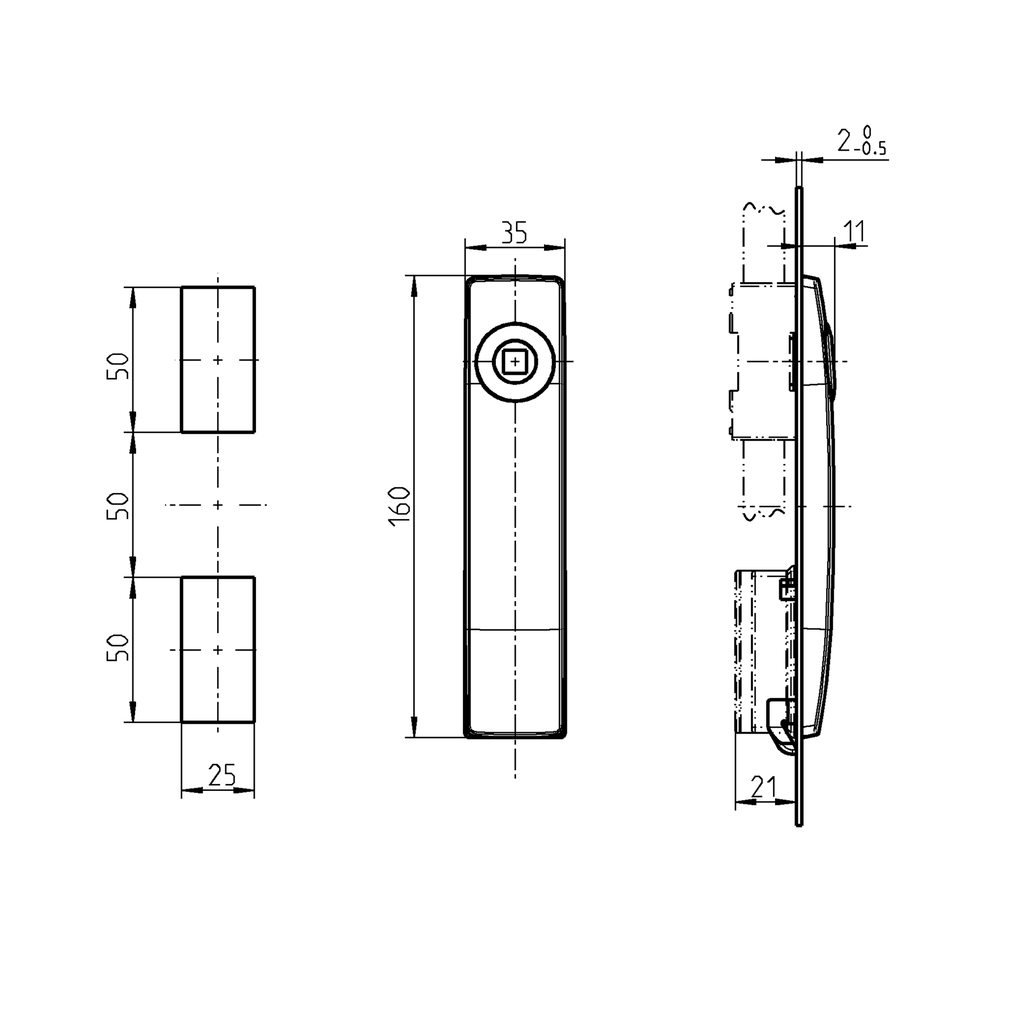

    Here you can find the product data sheets and CAD files of this product
