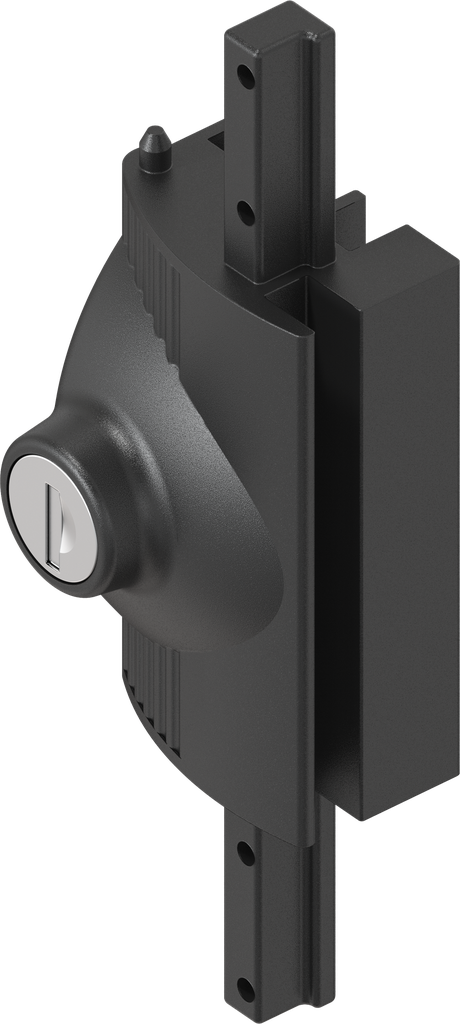

Latch round cylinder, keyed EK 333, Zinc die black powder-coated

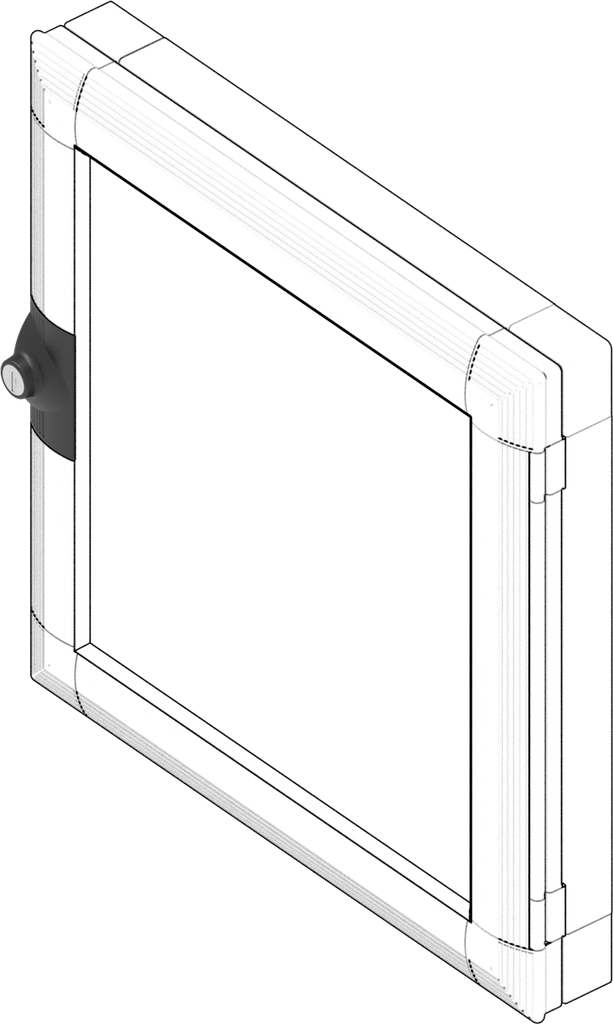

Latch for aluminium window with wing knob insert, Zinc die black powder-coated
Assembly instruction:
Conversion details form right-hand to left-hand
1 = Right-hand version
Remove round cylinder as shown, rotate 180°and re-assemble.
2 = Left-hand version
Turn entire locking set for left-hand version.
Order / Calculation example:
Please order the aluminium window or the aluminium window without frame separately!
Only ONE locking type must be selected when ordering the aluminium window without frame.
The number of locks (1-3) depends on the size of the aluminium window without frame!
Internal Reference:
1215-U1-V
Product Type:
Aluminium window lock
Program:
1215
Catalog sheet:
7B-220
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Lock Type(2):
Round cylinder
Shutter Position:
At the front in the frame
No Specifications
