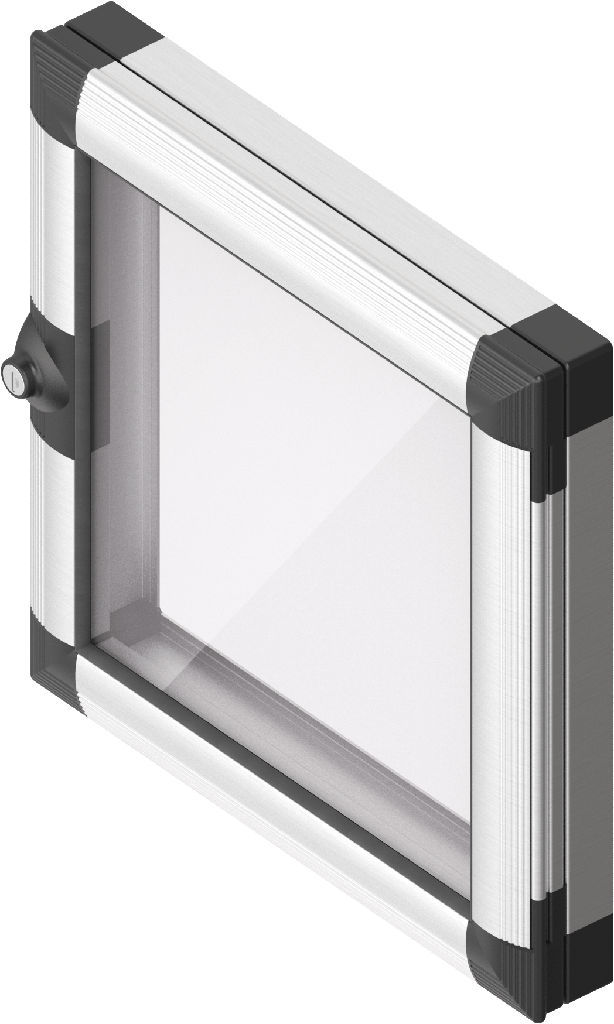

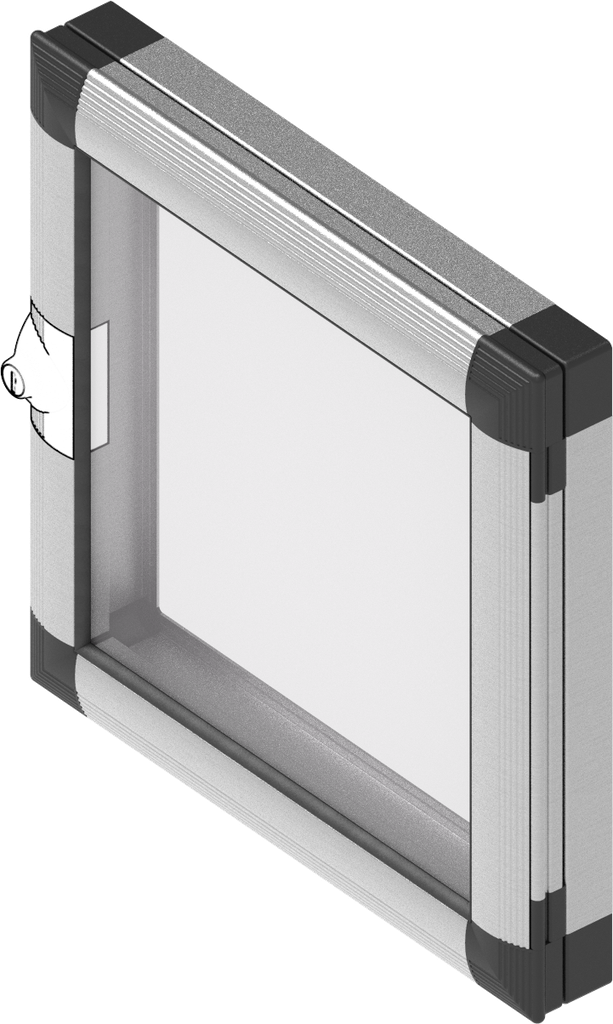

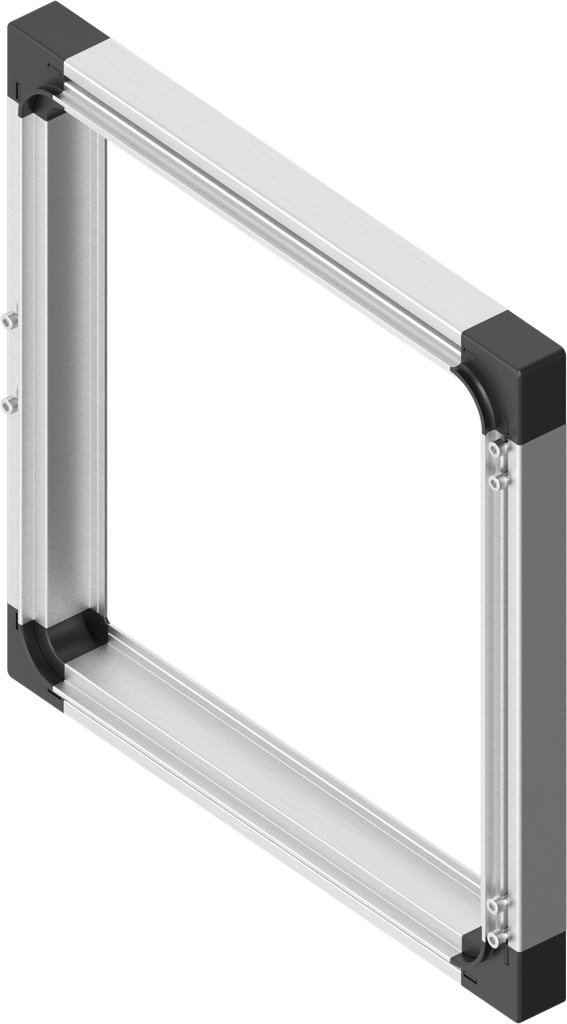

EMKA Proflex aluminium window, Aluminium anodized
EMKA Proflex aluminium window, Aluminium anodized
EMKA Proflex aluminium window, Aluminium anodized
EMKA Proflex aluminium window, Aluminium anodized

EMKA Proflex aluminium window, Aluminium anodized; 1210-U600-500

https://www.emka.com/products/1210-u600-500-emka-proflex-aluminium-window-aluminium-anodized-228986 https://www.emka.com/web/image/product.template/228986/image_1920?unique=3dd7600

    This combination does not exist.

    Product information:

    Attention:
    Please specify locking option separately!
    Internal Reference: 1210-U600-500
    Barcode: 1210-U00600-0000500
    Product Type: Aluminium windows
    Material: Aluminium
    Program: 1210
    Material of the module : Aluminium
    Surface of the module: anodized

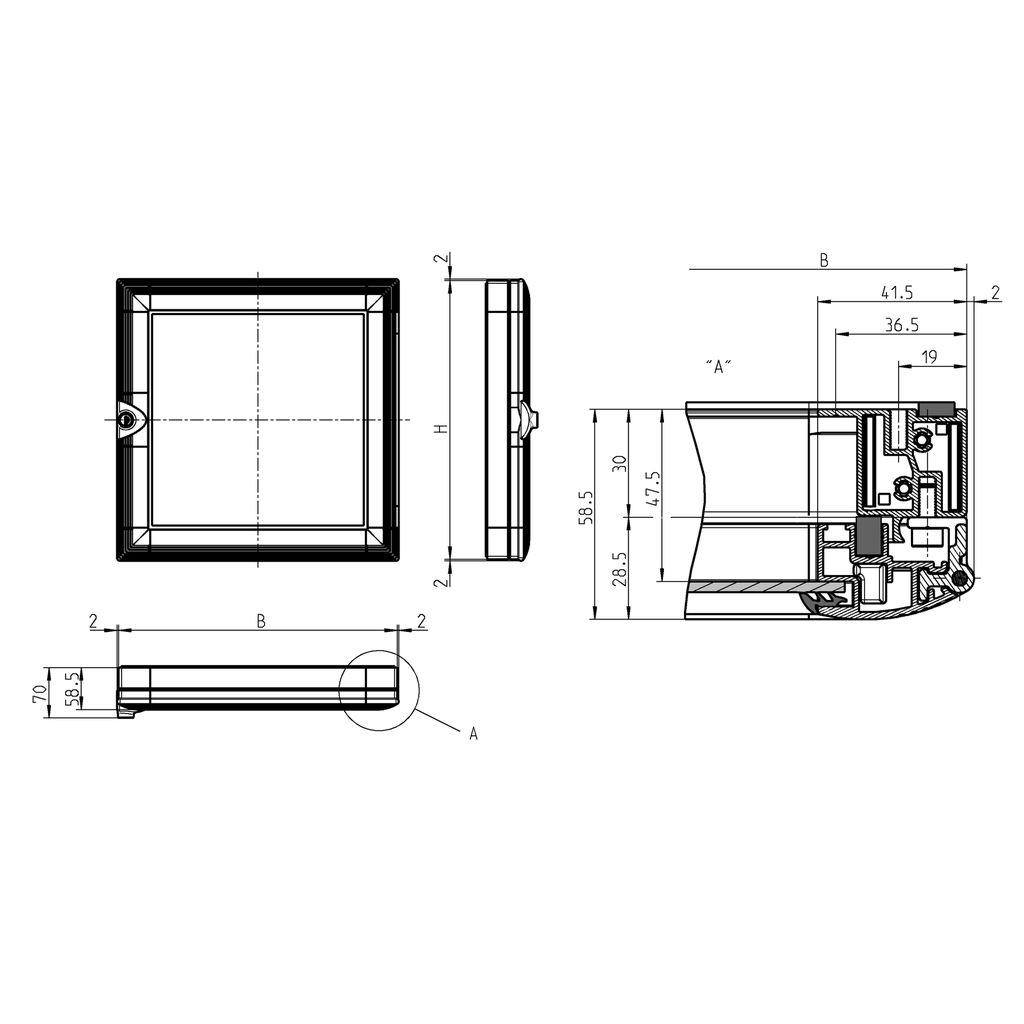

    Essay window art: Aluminium window with 30 mm frame
    Dimension B max.: 500 mm
    Dimension B min: 401 mm
    Fixing type: Nut fixing / riveting from the front,Nut fixing from the rear
    Dimension H max.: 600 mm
    Dimension H min.: 501 mm
    IP 65 on request: Yes
    Opening Angle: 180°
    Shutter Position: At the front in the frame
    No Specifications
    View All Products
    Aluminium window lock
    Here you can find the product data sheets and CAD files of this product
