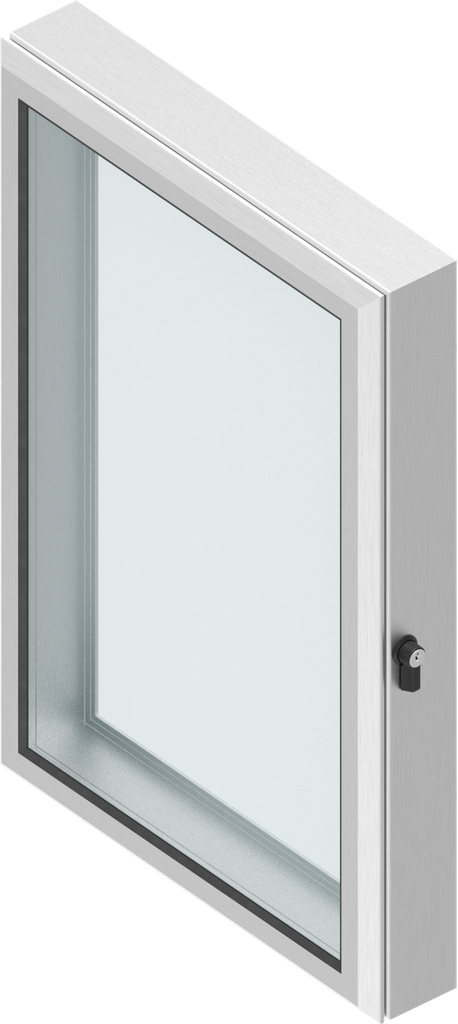

Aluminium window with 61 mm frame with wing knob quarter turn on the side, keyed 2233X, Aluminium anodized; 1200-U30_BxH

https://www.emka.com/products/1200-u30-bxh https://www.emka.com/web/image/product.template/422586/image_1920?unique=1280087


    This combination does not exist.



    Product information:

    1 = Part no. 2 = Number of locks 3 = Number of hinges H = Height B = Width The framed parts are also available with safety glass or with aluminium composite panel. In case of bigger aluminium windows of this version with several locks only one lock is lockable Keyed different on request In case of this version mounting with gas spring is possible. In case of this version a frame with 114 mm is also available

    B = Width

    The framed parts are also available with safety glass or with aluminium composite panel.

    In case of bigger aluminium windows of this version with several locks only one lock is lockable
    Keyed different on request

    In case of this version mounting with gas spring is possible.
    In case of this version a frame with 114 mm is also available

    Order / Calculation example:

    You need an aluminium window with the dimensions B = 620 mm, H = 840 mm. Please order: 1200-U35-07 620x840

    Internal Reference: 1200-U30_BXH
    Product Type: Aluminium windows
    Program: 1200
    Material of the module : Aluminium
    Surface of the module: anodized
    Essay window art: Aluminium window with 61 mm frame
    Dimension B max.: 1000 mm
    Dimension B min: 300 mm
    Fixing type: Nut fixing / riveting from the front
    Dimension H max.: 2000 mm
    Dimension H min.: 300 mm
    Opening Angle: 175°
    Lock Type(2): Knob handle
    Shutter Position: At the side of the frame
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
