EMKA Proflex aluminium window, Aluminium anodized
Aluminium window with 30 mm frame with cylinder quarter turn at the front, keyed EK 333, Aluminium anodized

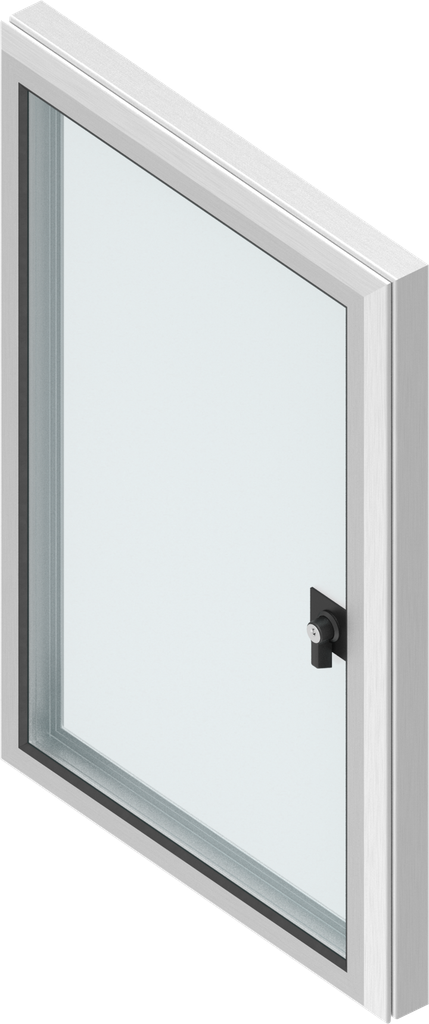

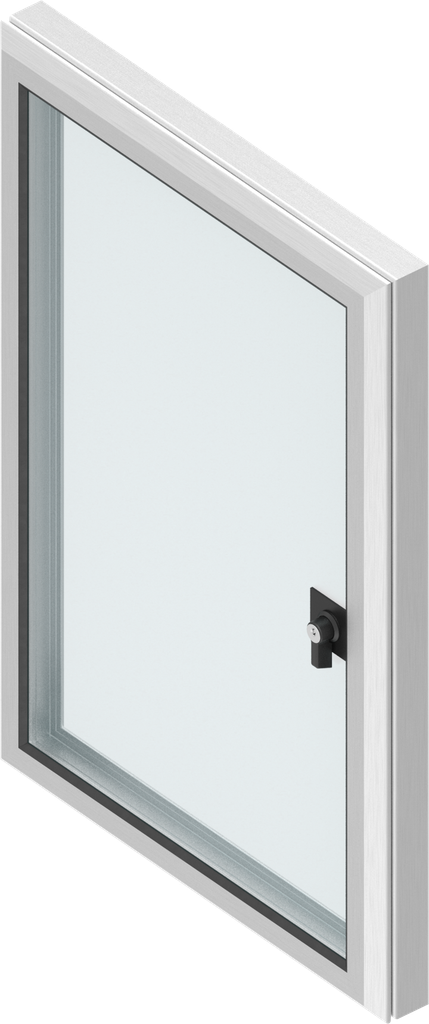

Aluminium window with 30 mm frame with wing knob quarter turn at the front, keyed 2233X, Aluminium anodized; 1200-U10_BxH
Product information:
1 = Part no.
2 = Number of locks
3 = Number of hinges
H = Height
B = Width
The framed parts are also available with safety glass or with aluminium composite panel.
In case of bigger aluminium windows of this version with several locks only one lock is lockable
Keyed different on request
In case of this version mounting with gas spring is possible.
In case of this version a frame with 114 mm is also available
Order / Calculation example:
You need an aluminium window with the dimensions B = 620 mm, H = 840 mm.
Please order: 1200-U15-07 620x840
Internal Reference:
1200-U10_BXH
Product Type:
Aluminium windows
Program:
1200
Material of the module :
Aluminium
Surface of the module:
anodized
Essay window art:
Aluminium window with 30 mm frame
Dimension B max.:
1000 mm
Dimension B min:
300 mm
Fixing type:
Nut fixing / riveting from the front
Dimension H max.:
2000 mm
Dimension H min.:
300 mm
Opening Angle:
175°
Lock Type(2):
Knob handle
Shutter Position:
At the front in the window
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
