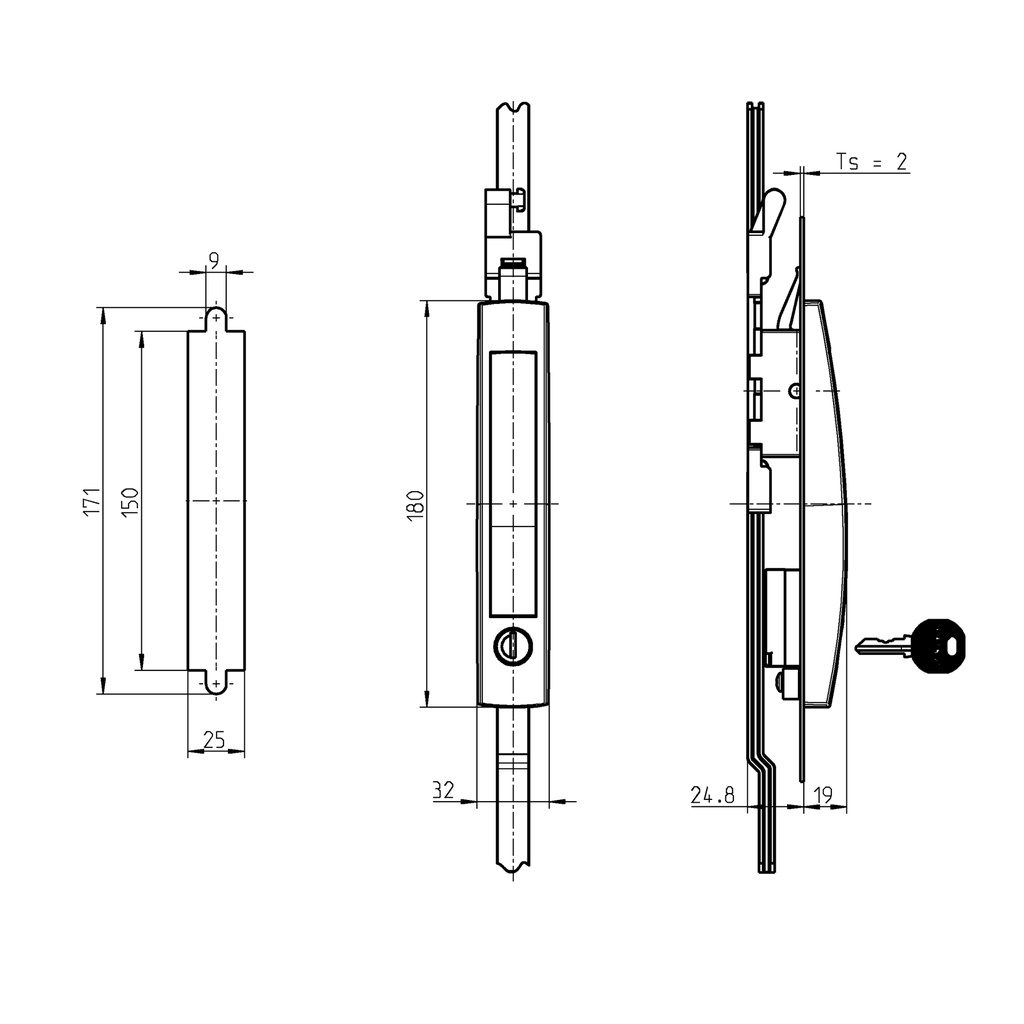

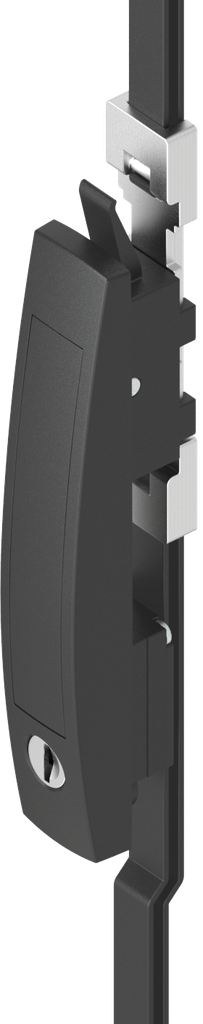

Lifthandle locking system complete with 4 locking points, keyed EK 333, Polyamide GF black
Cam, Zinc die

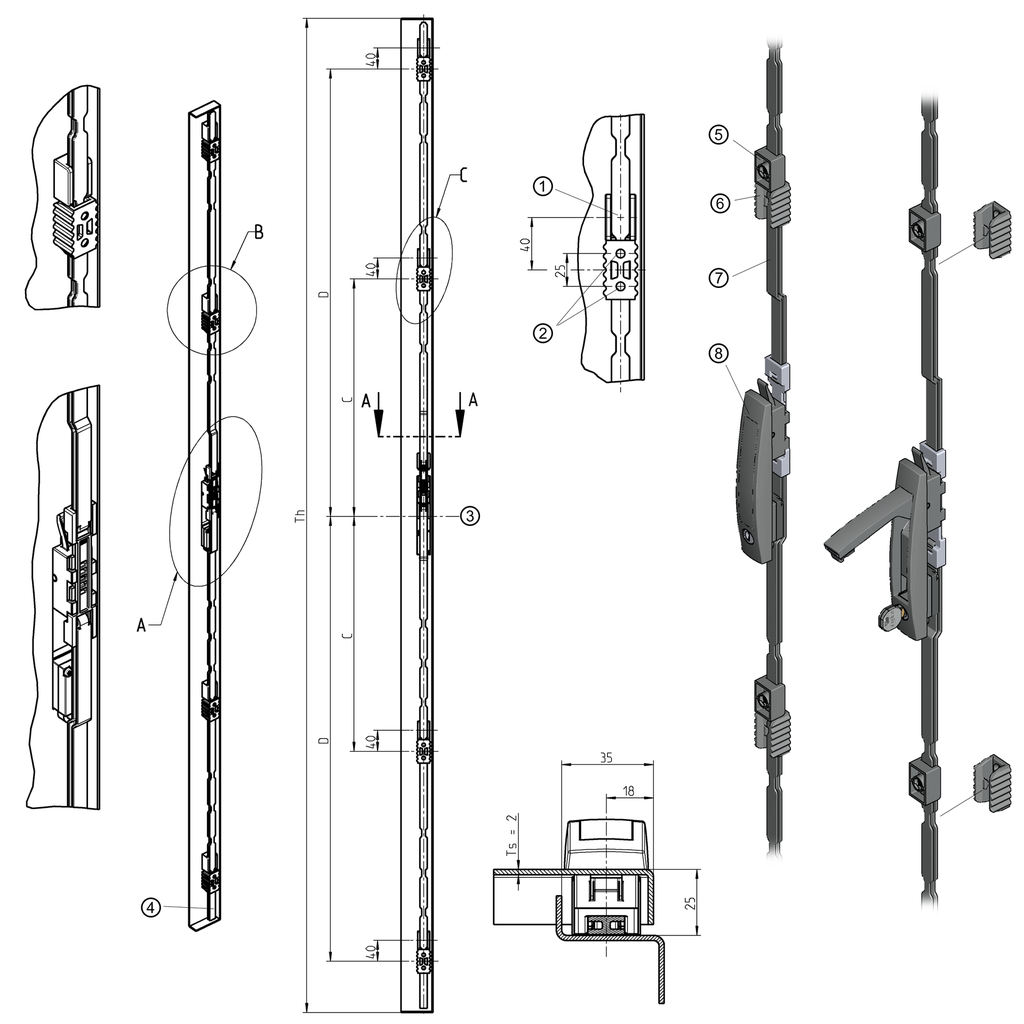

Function:
- Door height Th = 800 mm - 1200 mm:
Dimension C: not applicable; Dimension D: 300 mm - Door height Th = 1200 mm - 1600 mm:
Dimension C: not applicable; Dimension D: 450 mm

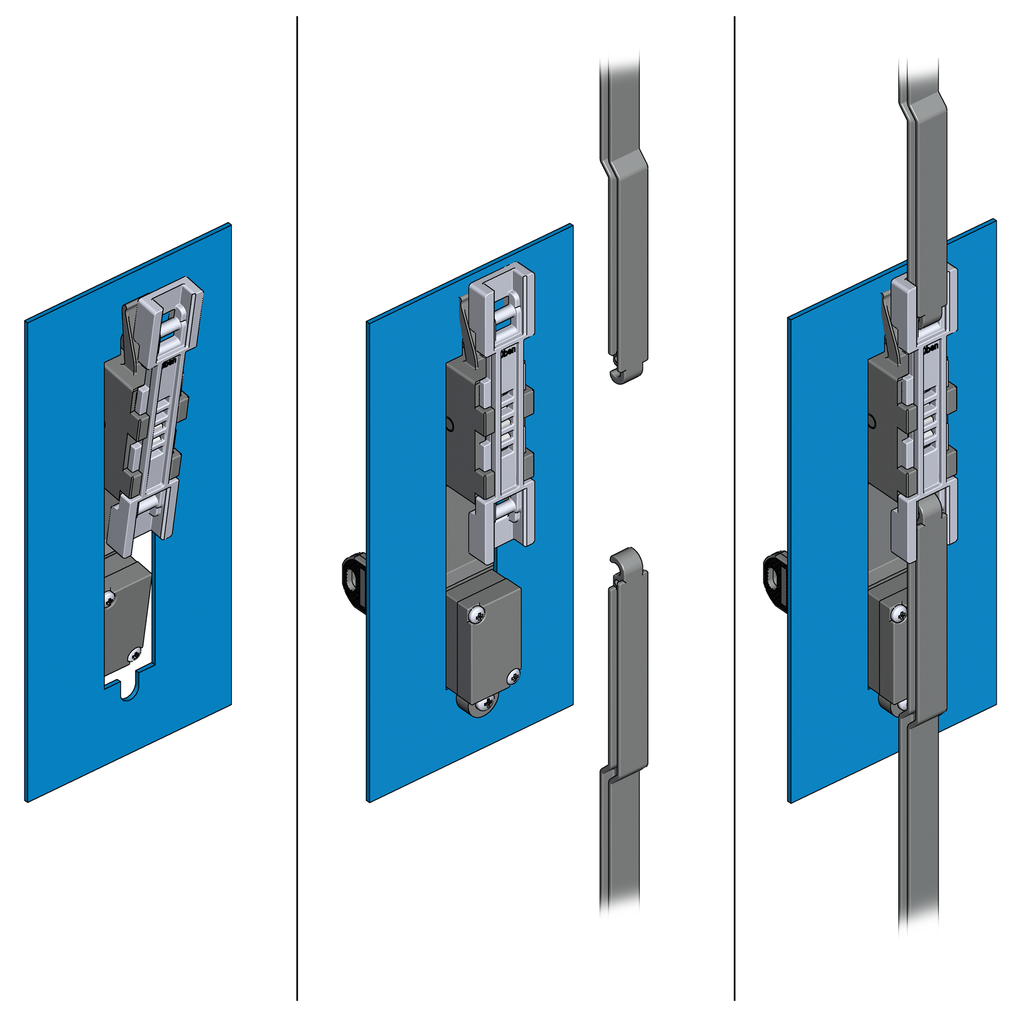

Assembly instruction:

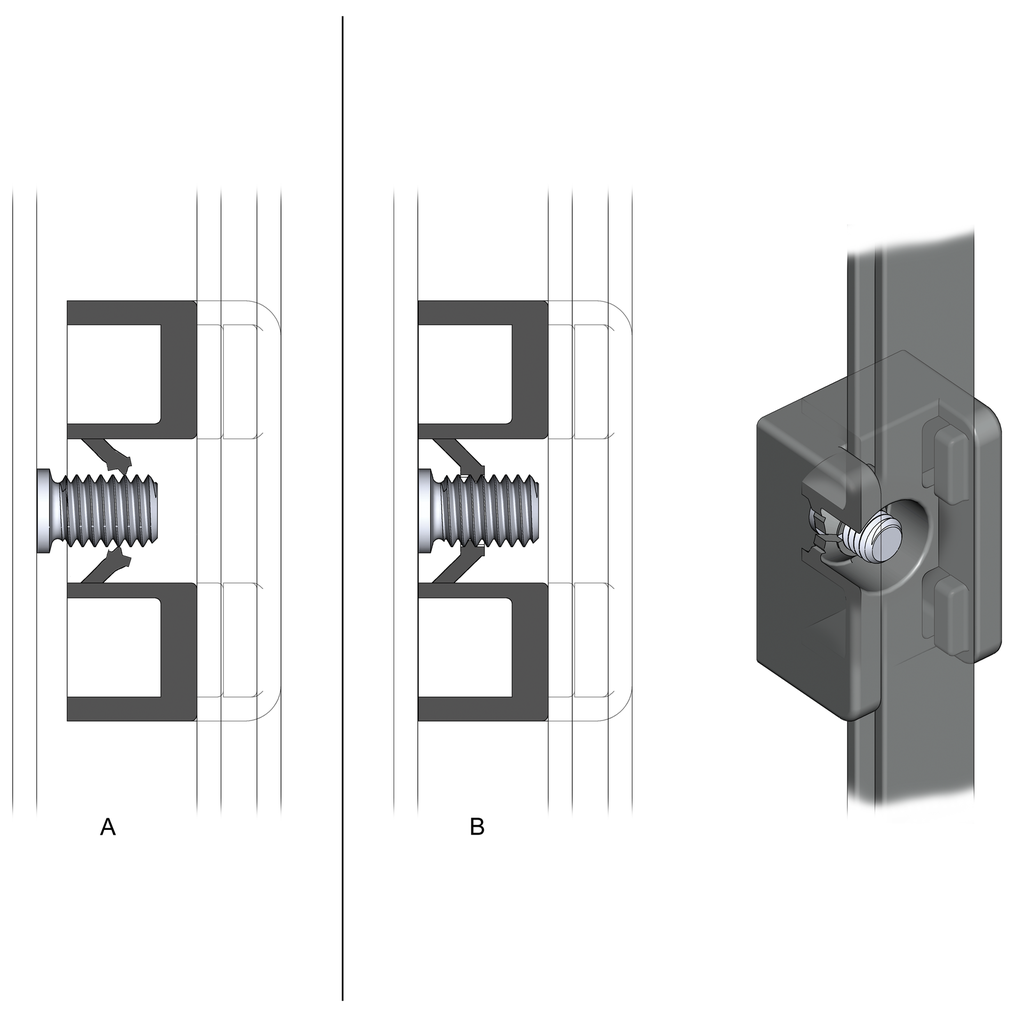

A = Fitting the rod guide onto the weld stud
B =Rod guide completely assembled
Pull-out force: Fmin. = 350 N
Application force: typical value F ≃ 135 N
These values refer to a thread with a raw or zinc-plated surface which is free from grease.
Akeneo Note:

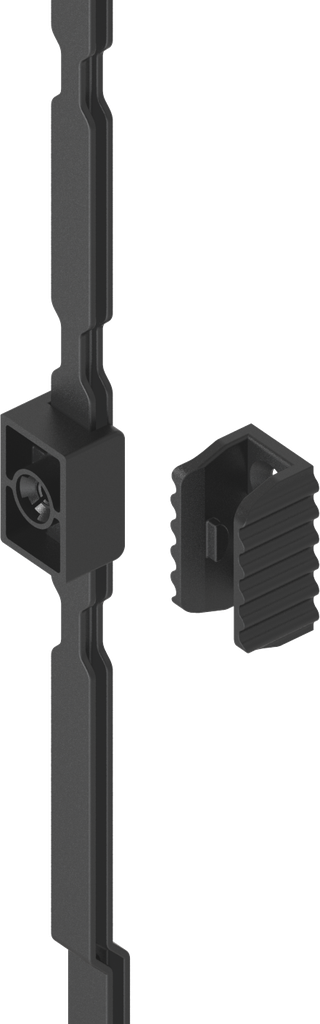

Number of rod guides and catches 2; Stroke 18 mm
Internal Reference:
1190-U7
Product Type:
Swinghandle, Lifthandle
Program:
1190
Catalog sheet:
3F-420
Material of the module :
Polyamide GF
Surface of the module:
black
Dimension A, Variable:
25 mm
Number of Possible Locking Points:
2 points
Number of Locking:
One locking set
Article with property rights:
Yes
Mounting Positions :
Outside the sealing
Handle Art(1):
Lifthandle
With integrated rod control / 3-point cam:
Yes
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking set:
Round cylinder
Swivel Handle:
19 mm
Pan Handle Length:
180 mm
Door Version :
Left,Right
Door thickness:
2 mm
Locking components:
Integrated rod control
No Specifications
