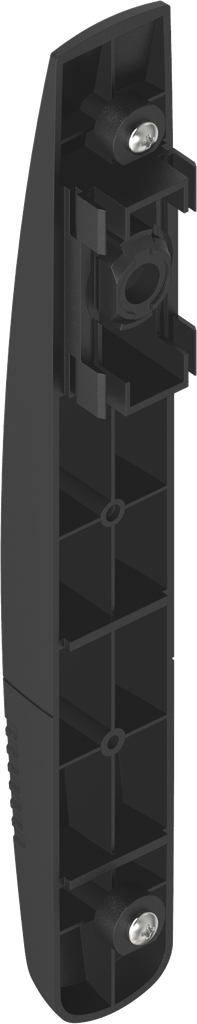

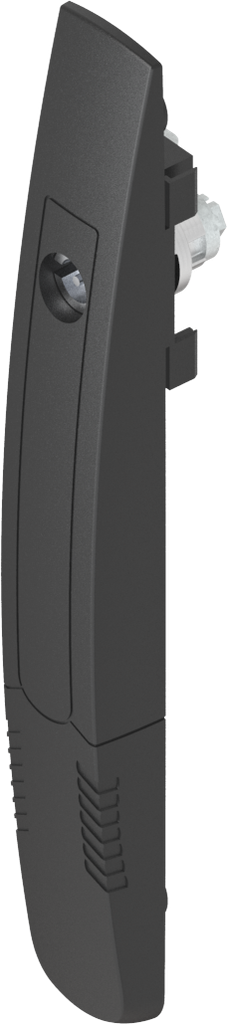

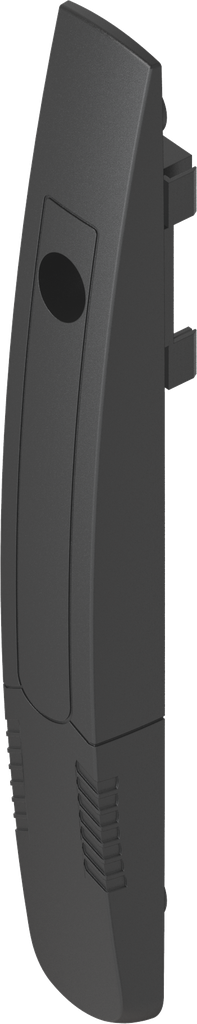

Escutcheon, Polyamide GF black; 1190-U3

https://www.emka.com/products/1190-u3 https://www.emka.com/web/image/product.template/227524/image_1920?unique=7a65bc9

    This combination does not exist.

    Inside the sealing Outside the sealing Protection class IP 40
    Contact Us
    Internal Reference: 1190-U3
    Product Type: Escutcheon
    Program: 1190
    Catalog sheet: 3F-220
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Mounting Positions : Inside the sealing,Outside the sealing
    Door thickness: 2 mm

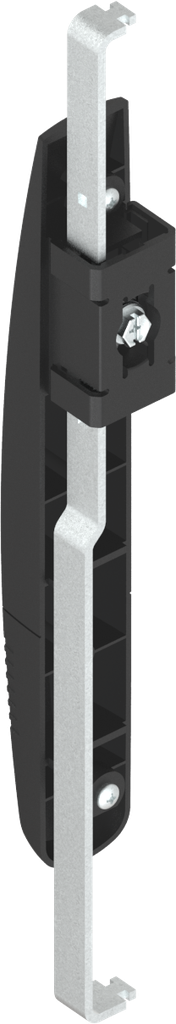

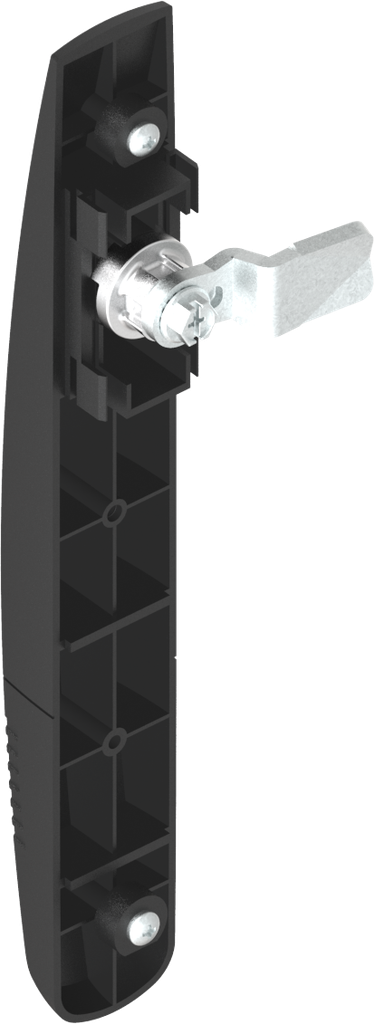

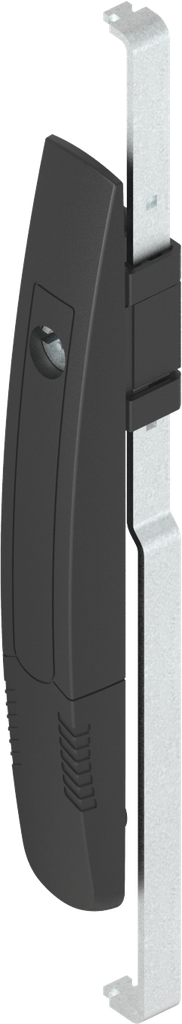

    Locking components: Cam,Rod control
    No Specifications
    View All Products
    Insert
    Here you can find the product data sheets and CAD files of this product
