Lifthandle locking system complete with 4 locking points for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black

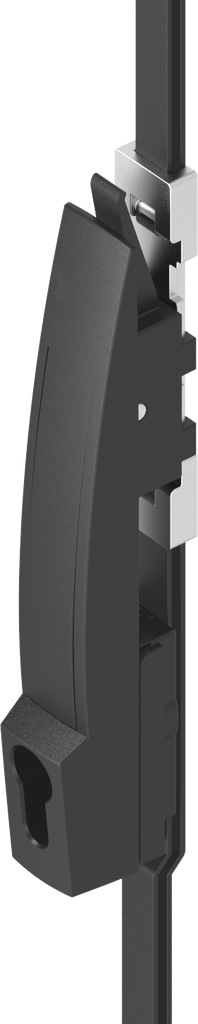

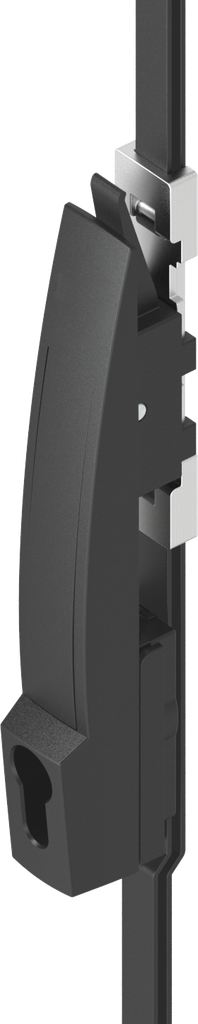

Lifthandle for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black
Lifthandle locking system complete with 2 locking points for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black; 1190-U107

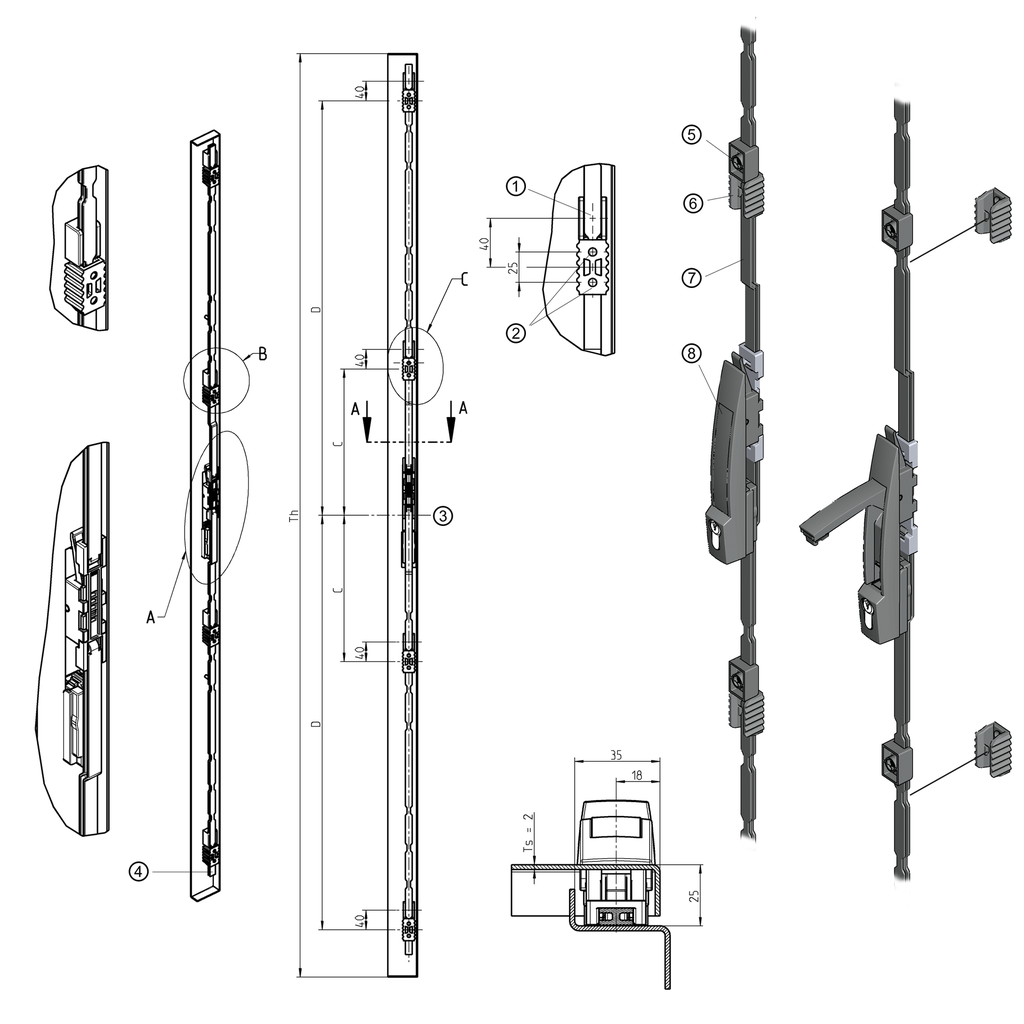

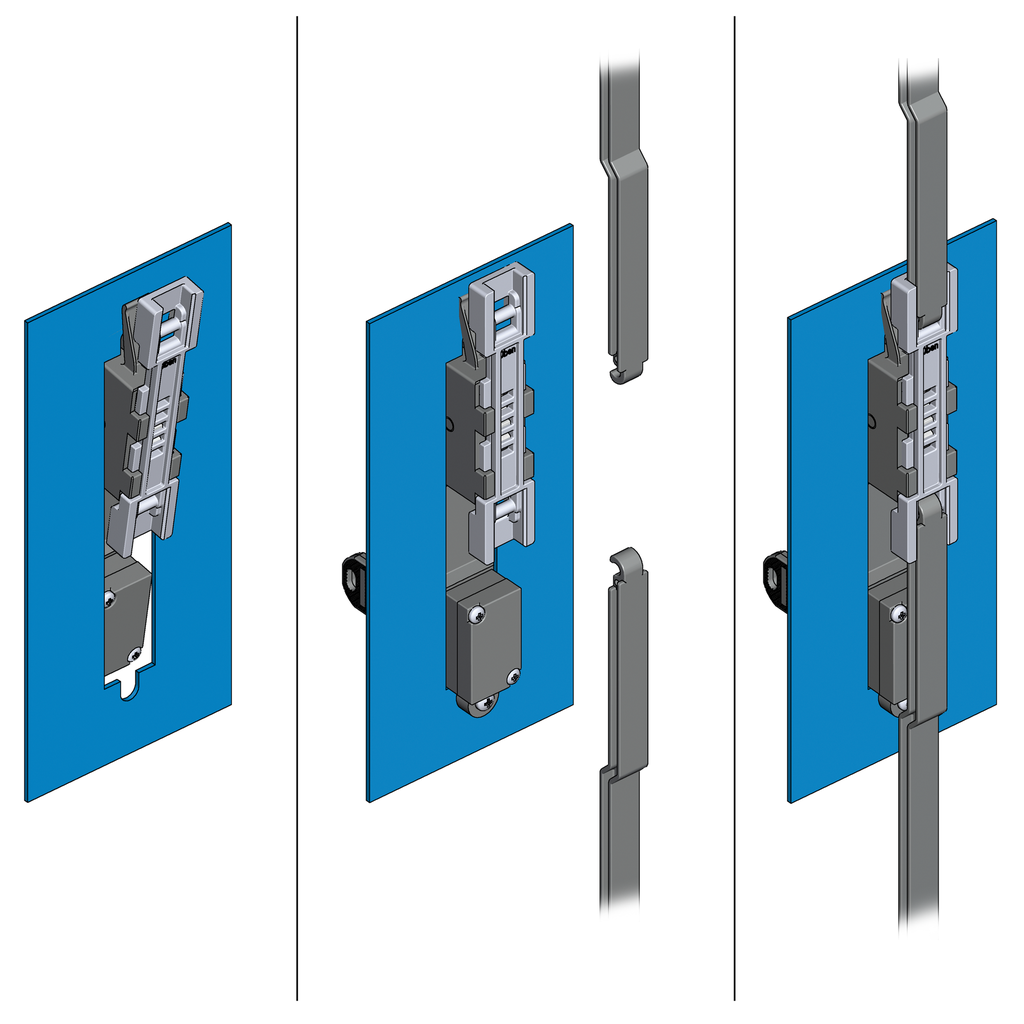

Function:
- Door height Th = 800 mm - 1200 mm:
Dimension C: not applicable; Dimension D: 300 mm - Door height Th = 1200 mm - 1600 mm:
Dimension C: not applicable; Dimension D: 450 mm

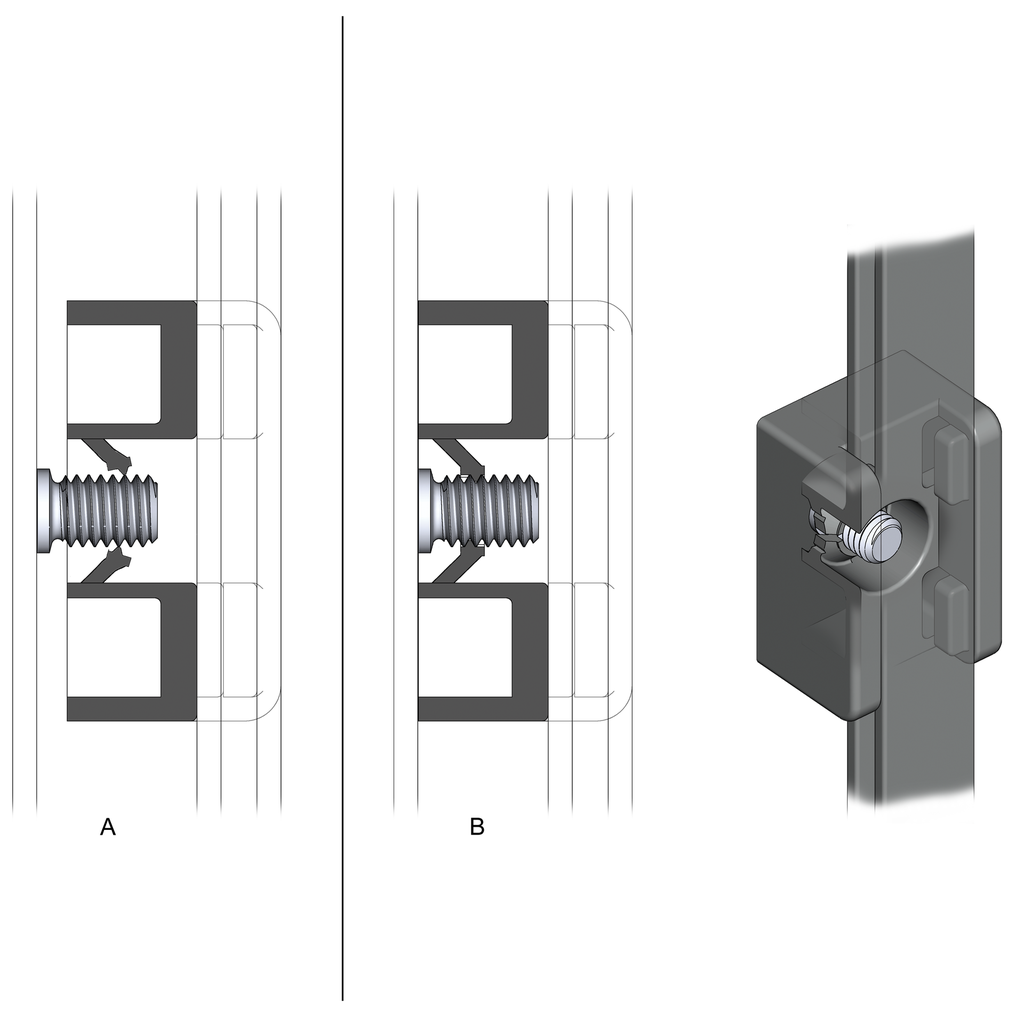

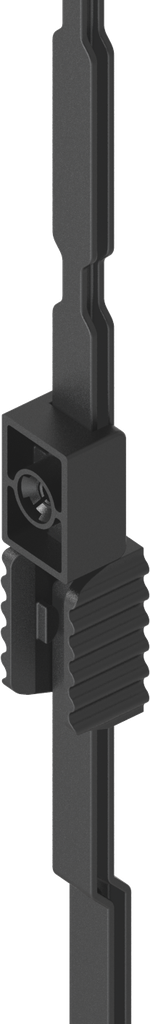

Assembly instruction:
A = Fitting the rod guide onto the weld stud
B =Rod guide completely assembled
Pull-out force: Fmin. = 350 N
Application force: typical value F ≃ 135 N
These values refer to a thread with a raw or zinc-plated surface which is free from grease.
Akeneo Note:

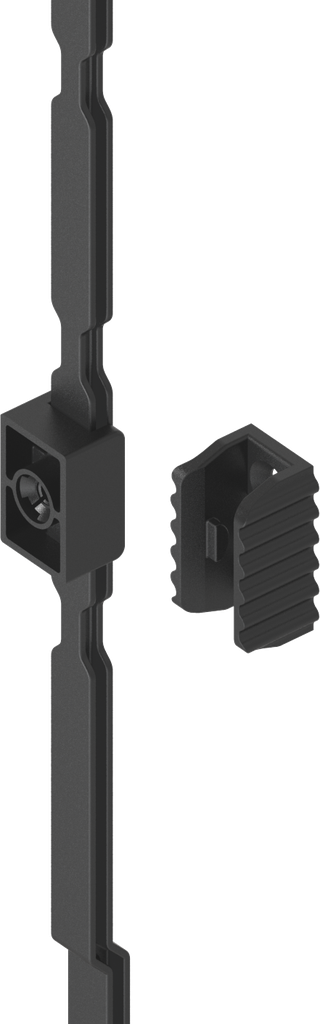

Number of rod guides and catches 2; Stroke 18 mm
Internal Reference:
1190-U107
Product Type:
Swinghandle, Lifthandle
Program:
1190
Catalog sheet:
3F-430
Material of the module :
Polyamide GF
Surface of the module:
black
Dimension A, Variable:
25 mm
Number of Possible Locking Points:
2 points
Number of Locking:
One locking set
Article with property rights:
Yes
Mounting Positions :
Outside the sealing
Handle Art(1):
Lifthandle
With integrated rod control / 3-point cam:
Yes
Locking set:
Profile half cylinder A = 30
Swivel Handle:
26.5 mm

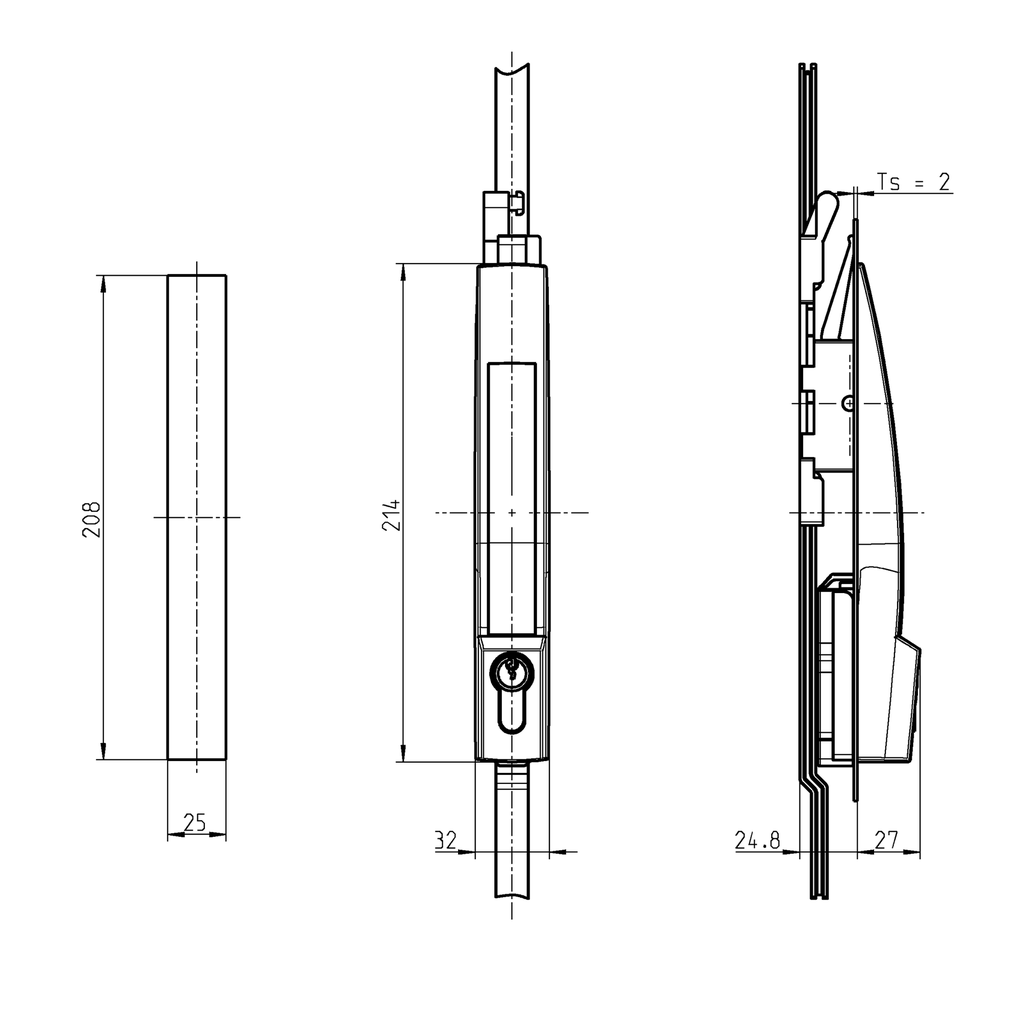

Pan Handle Length:
214 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Door thickness:
2 mm
Locking components:
Integrated rod control
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
