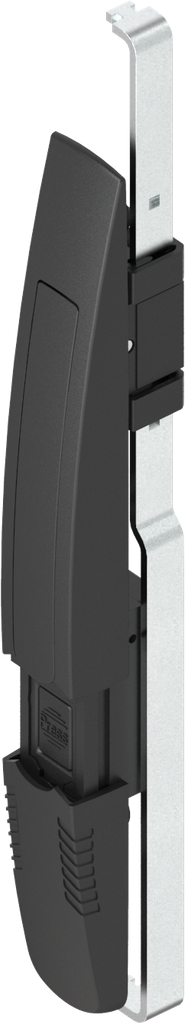

Flat rod with torsion for bottom, Steel zinc-plated

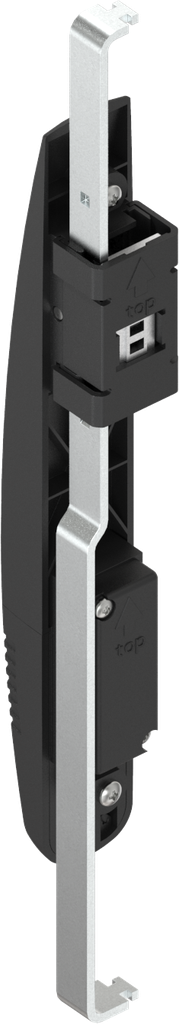

Rod control, Polyamide and steel black and zinc-plated
Product information:
Rod movement is unidirectional
Stroke 18 mm
For door return of 25 mm locking sets with round cylinder or insert can be used
Internal Reference:
1190-U1
Product Type:
Swinghandle, Lifthandle
Program:
1190
Catalog sheet:
3F-120
Material of the module :
Polyamide GF
Surface of the module:
black
Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
2 points, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Article with property rights:
Yes
Mounting Positions :
Outside the sealing

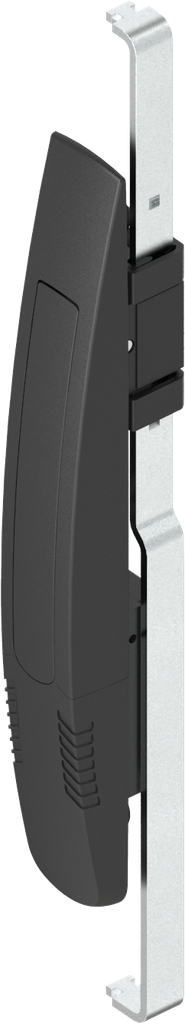

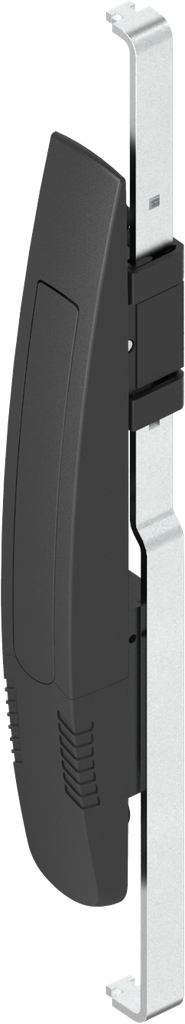

Handle Art(1):
Lifthandle
Locking set:
Push button
Locking set modular technology:
Profile half cylinder with cap, A = 30, mounted at the dish,ASSA cylinder with cap, mounted at the dish,KABA cylinder with cap, mounted at the dish,Round cylinder without cap, mounted at the dish,Insert without cap, mounted at the dish
locking set cover:
Yes
Swivel Handle:
22 mm

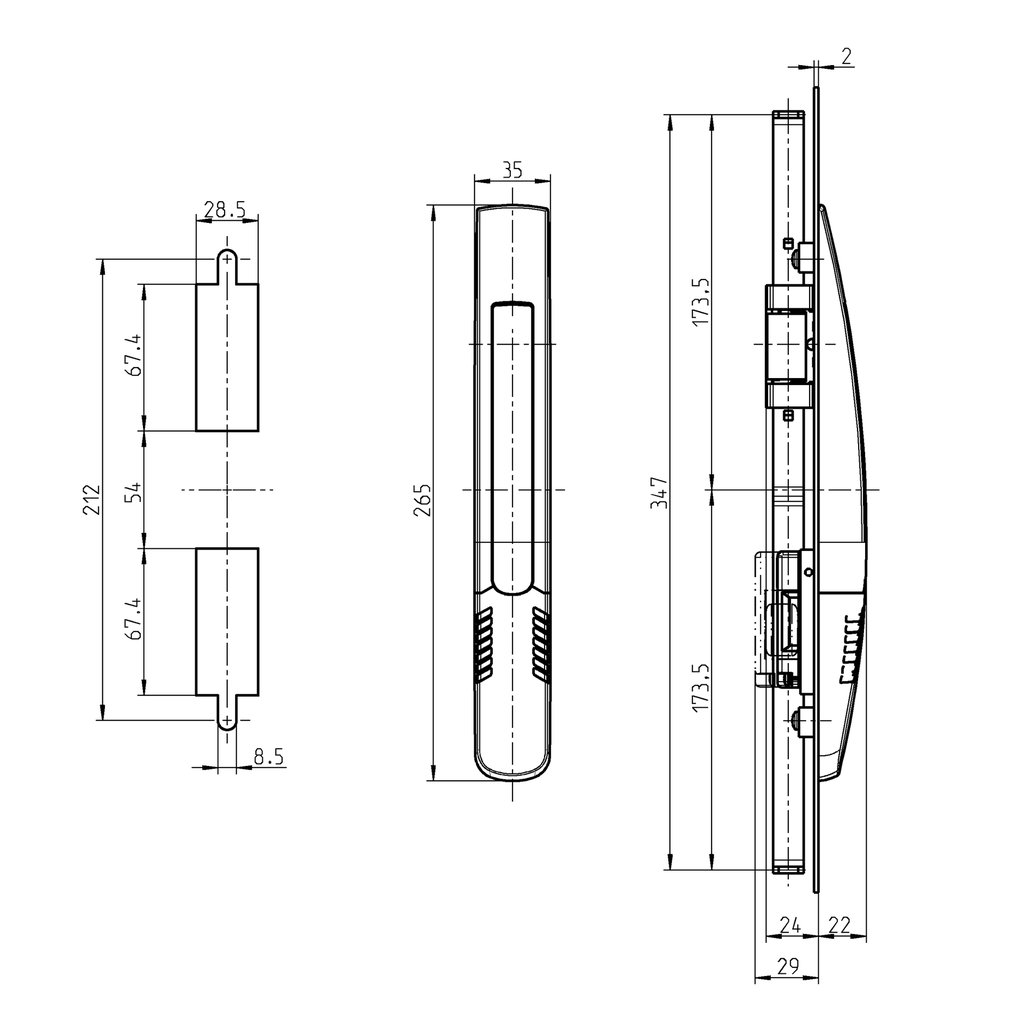

Pan Handle Length:
265 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Door thickness:
2 mm
Locking components:
Integrated rod control
