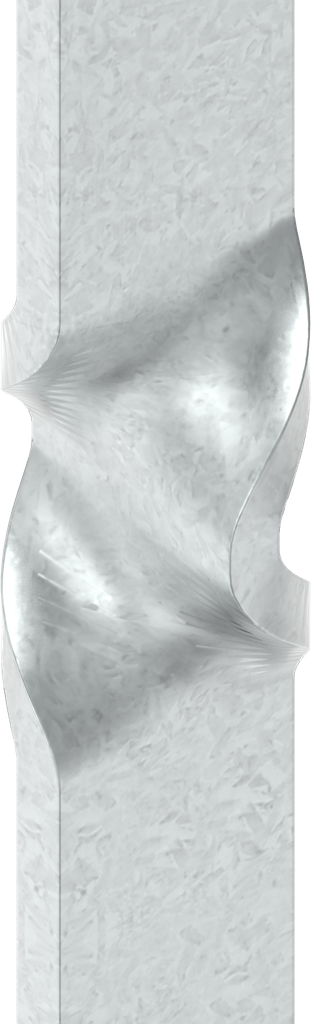

Flat rod with torsion for top, Steel zinc-plated

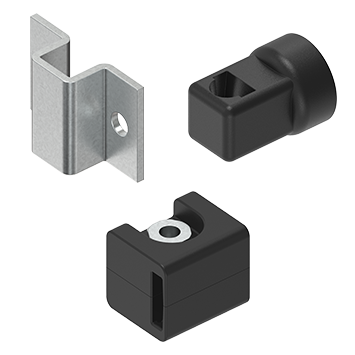

Rod guide for rod in H-shape 14 x 7, Polyamide GF black
Akeneo Note:

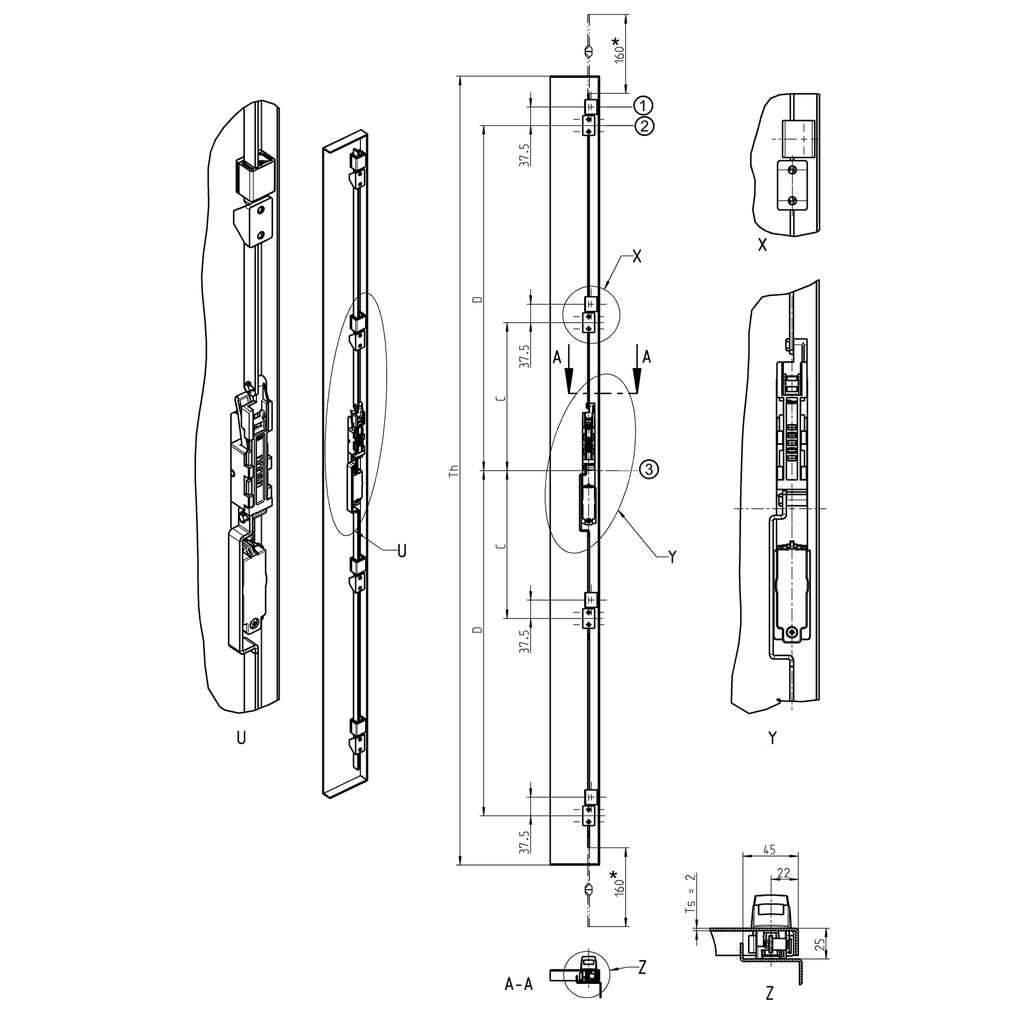

For door height 1600 - 1900 the flat rod must be shortened;
Dimension C = 300; Dimension D = 700.
Internal Reference:
1190-27-02JB
Product Type:
Rod
Material:
Steel
Program:
1190
Surface:
zinc-plated
Catalog sheet:
3ZA-560
Connecting rod position:
Outside the sealing, top or bottom
Number of Possible Locking Points:
2 points
Article with property rights:
Yes
C Dimension:
300
D Dimension:
850
Mounting Positions :
Outside the sealing
Flat Bar Outside:
Flat rod with torsion
For Door Height:
1900-2200
No Specifications
