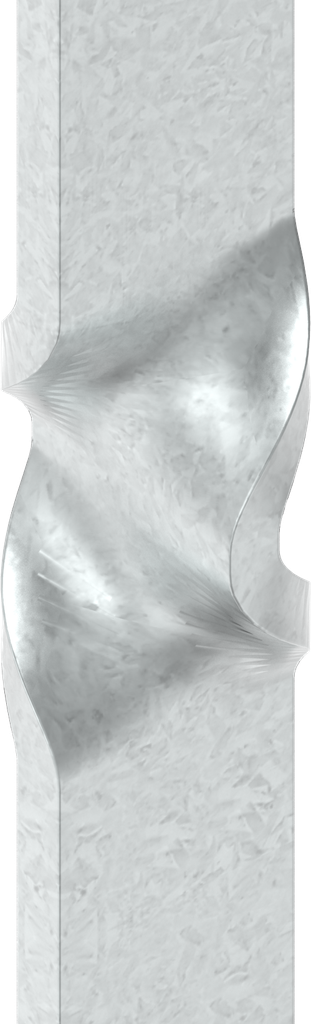

Flat rod with torsion for bottom, Steel zinc-plated; 1190-25-02JB

https://www.emka.com/products/1190-25-02jb https://www.emka.com/web/image/product.template/65109/image_1920?unique=e0d59c1

    This combination does not exist.

    Outside the sealing
    Contact Us

    Product information:

    Order respective upper and lower flat rod separately.

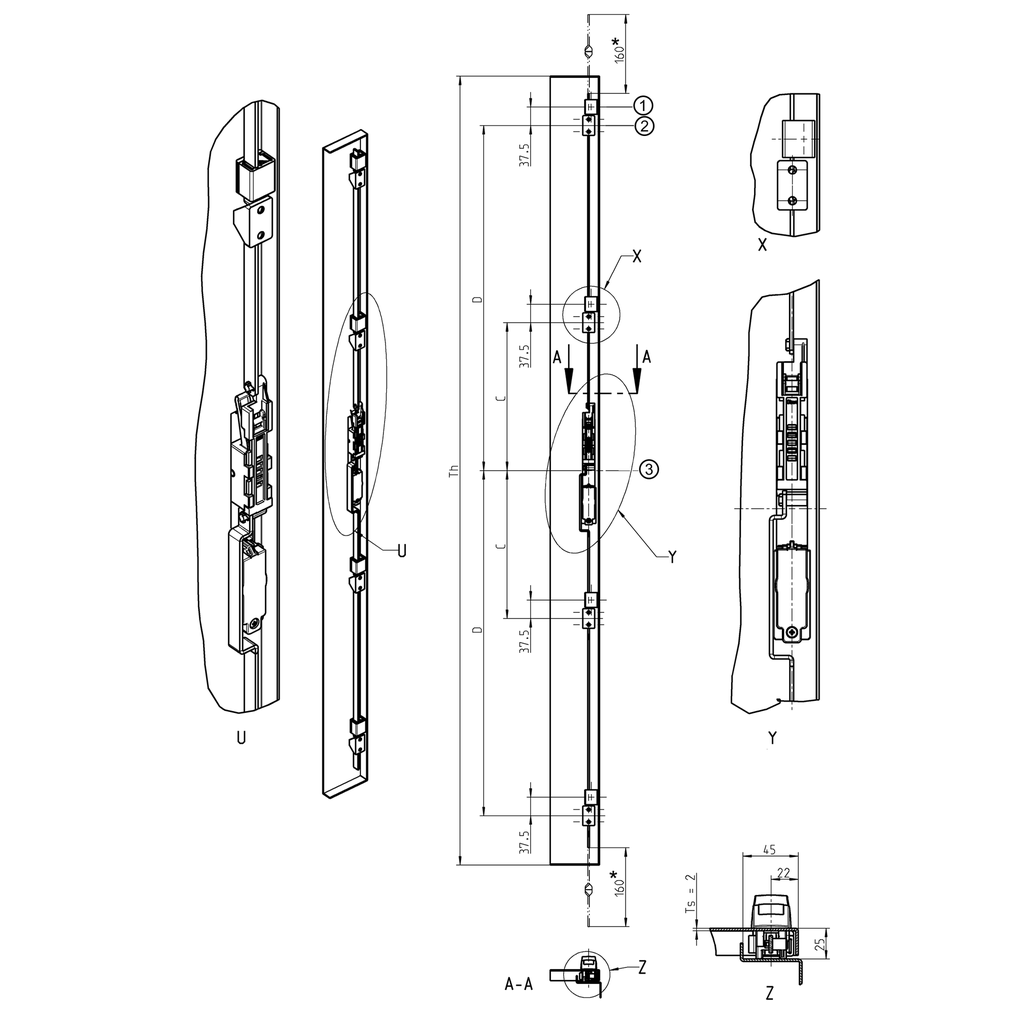

    * Flat rod must be shortened

    ① = Rod guide centre
    ② = Catch centre
    ③ = Door centre

    Akeneo Note:

    For door height 800 - 1200 the flat rod must be shortened; dimension D = 300.
    Internal Reference: 1190-25-02JB
    Product Type: Rod
    Material: Steel
    Program: 1190
    Surface: zinc-plated
    Catalog sheet: 3ZA-560
    Connecting rod position: Outside the sealing, top or bottom
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    C Dimension:
    D Dimension: 450
    Mounting Positions : Outside the sealing
    Flat Bar Outside: Flat rod with torsion
    For Door Height: 1200-1600
    No Specifications
    View All Products
    Rod guide
    Catch
    Rod control
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
