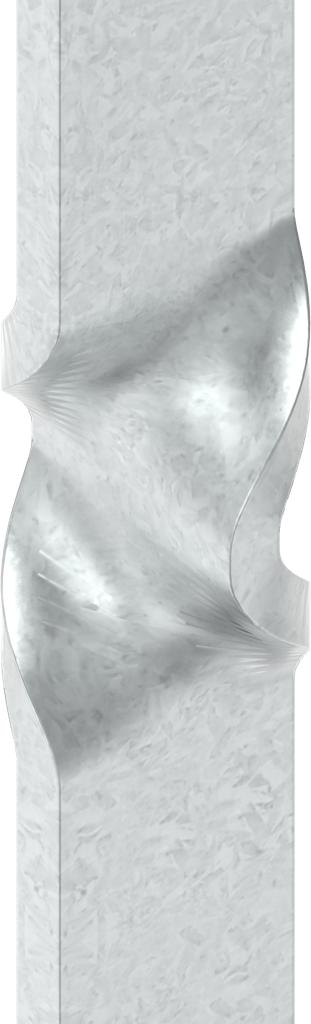

Flat rod with torsion for top, Steel zinc-plated; 1190-25-01JB

https://www.emka.com/products/1190-25-01jb https://www.emka.com/web/image/product.template/65108/image_1920?unique=f86255a

    This combination does not exist.

    Outside the sealing
    Contact Us

    Product information:

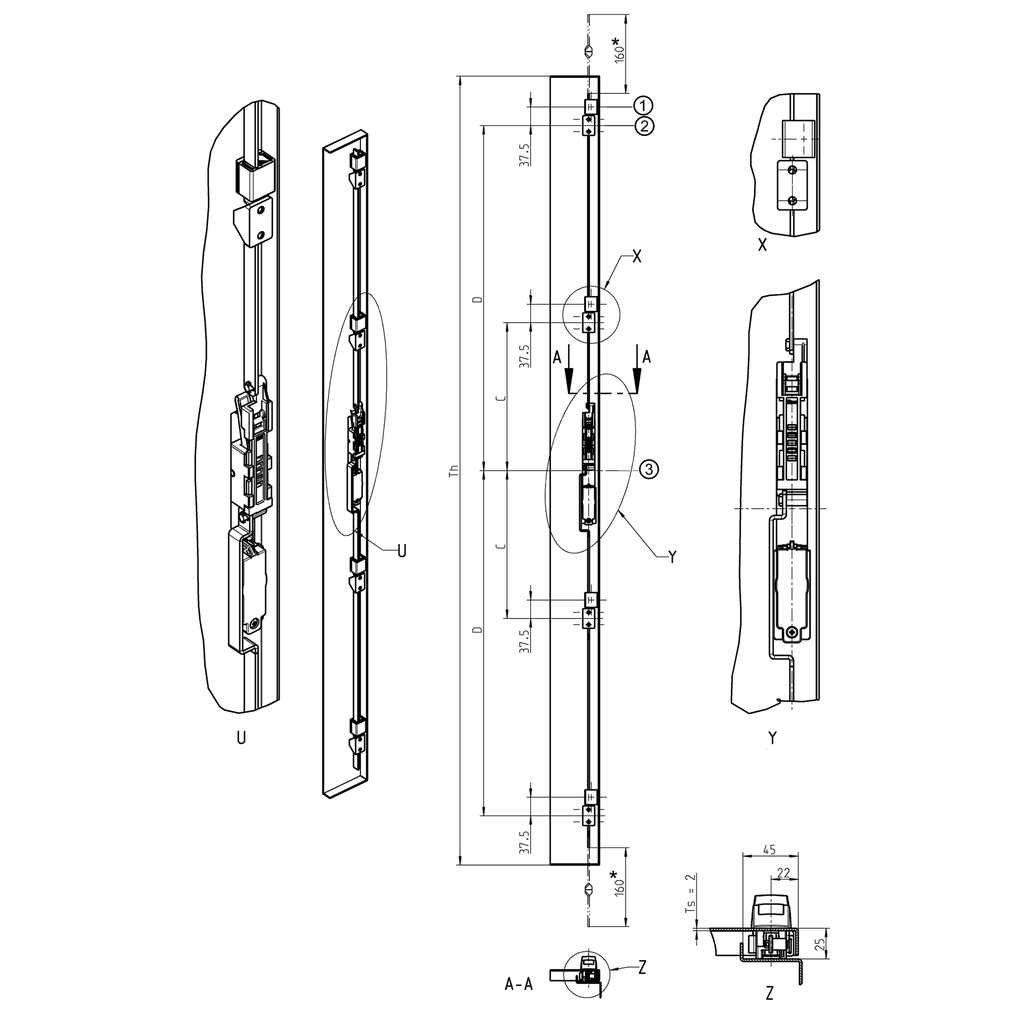

    Order respective upper and lower flat rod separately.

    * Flat rod must be shortened

    ① = Rod guide centre
    ② = Catch centre
    ③ = Door centre

    Akeneo Note:

    For door height 800 - 1200 the flat rod must be shortened; dimension D = 300.
    Internal Reference: 1190-25-01JB
    Product Type: Rod
    Material: Steel
    Program: 1190
    Surface: zinc-plated
    Catalog sheet: 3ZA-560
    Connecting rod position: Outside the sealing, top or bottom
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    C Dimension:
    D Dimension: 450
    Mounting Positions : Outside the sealing
    Flat Bar Outside: Flat rod with torsion
    For Door Height: 1200-1600
