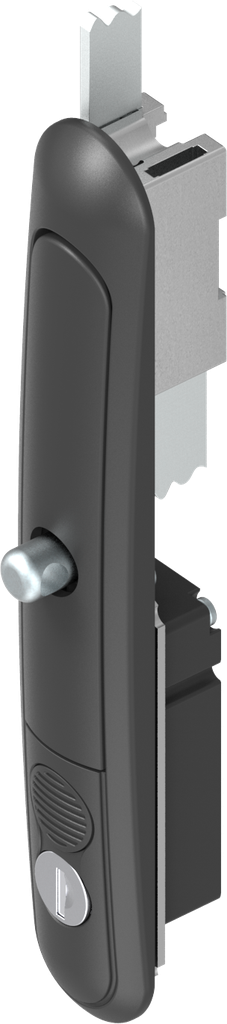

Swinghandle with push button 1185 for cam or rod control, keyed EK 333, Zinc die black powder-coated
Rod with recess, Polyamide GF black

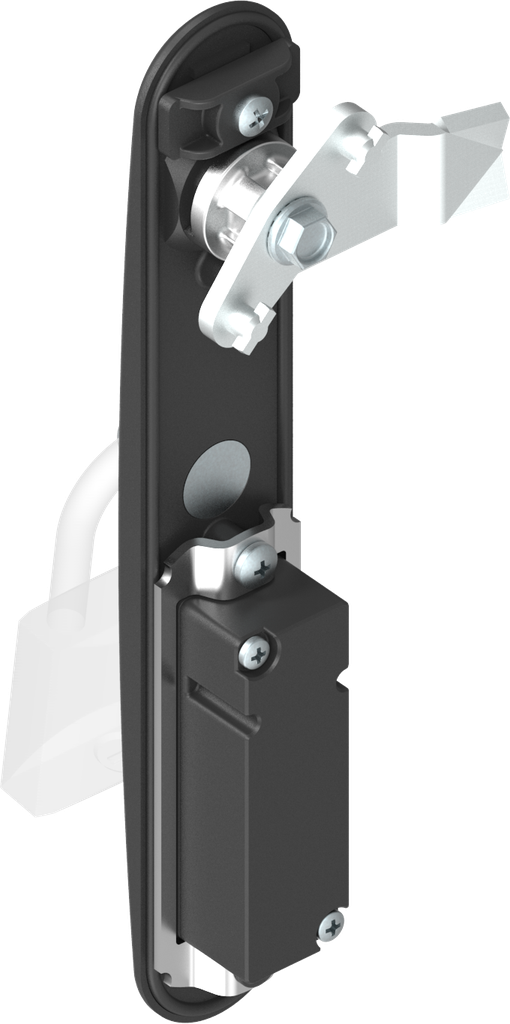

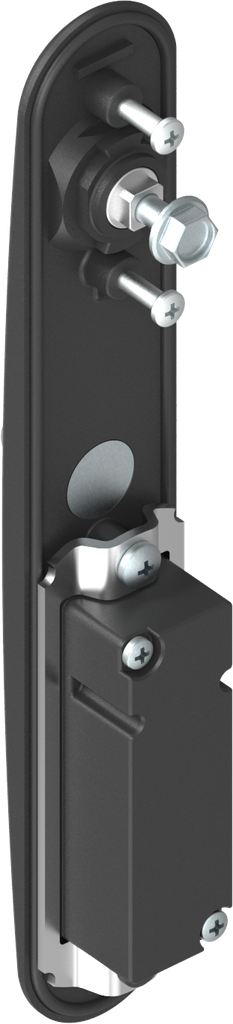

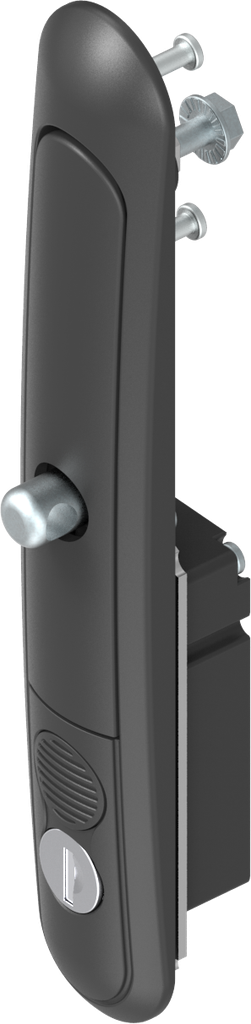

Swinghandle with push button 1185 for cam or rod control, keyed EK 333, and for padlock, Zinc die black powder-coated; 1185-U5
Product Benefits:
- Use of rod control or cam possible
- Protection against vandalism by recessed operating elements
- Additional locking possible by means of a padlock
Product information:
Attention: Order cam adapter 1185-U3 separately.
Internal Reference:
1185-U5
Product Type:
Swinghandle, Lifthandle
Program:
1185
Catalog sheet:
3E-540
Material of the module :
Zinc die
Surface of the module:
black powder-coated

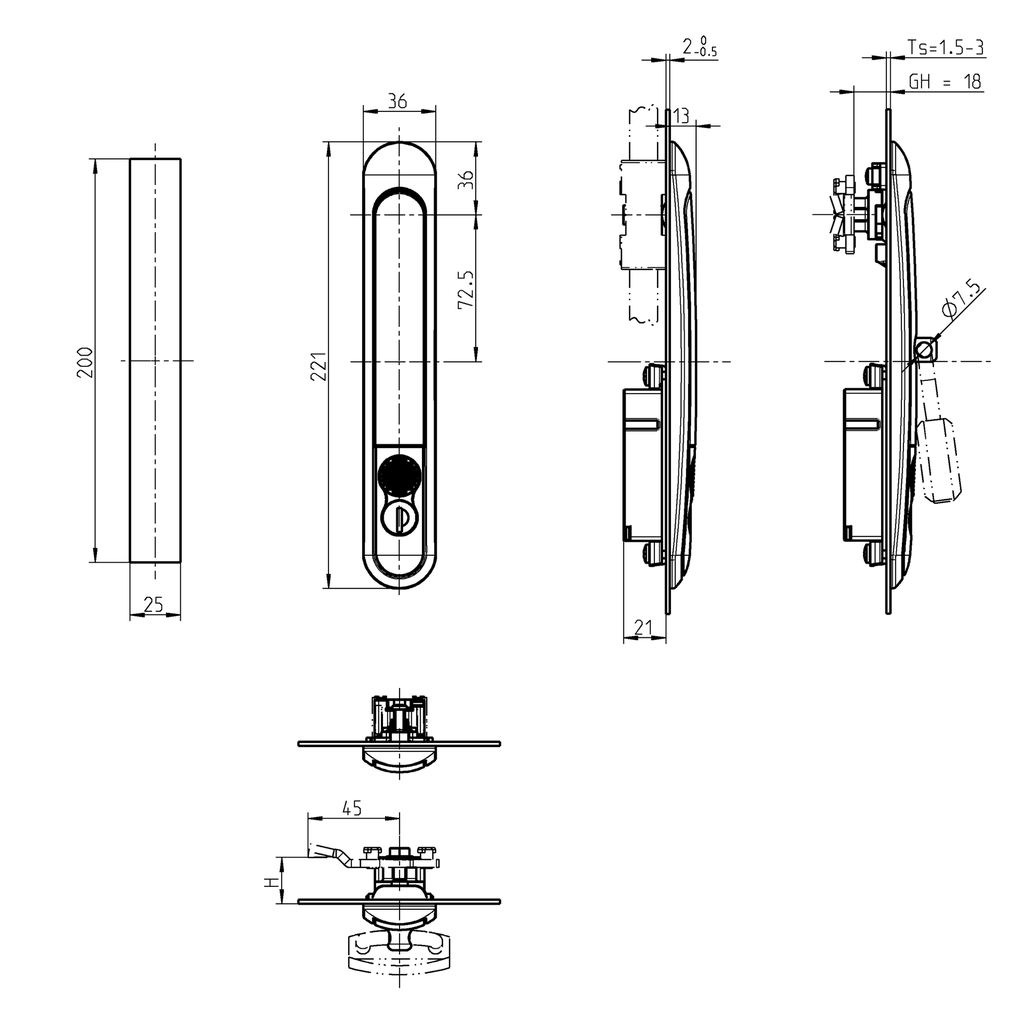

Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set and for padlock
Mounting Positions :
Inside the sealing,Outside the sealing
Foamed gasket:
Yes
GH Mass:
18 mm
Handle Art(1):
Swinghandle
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
3 mm
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking set:
Round cylinder,Padlock
Swivel Handle:
13 mm
Pan Handle Length:
221 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam,Rod control
Padlock Art:
Padlock with shackle dimension Ø 7.5
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
