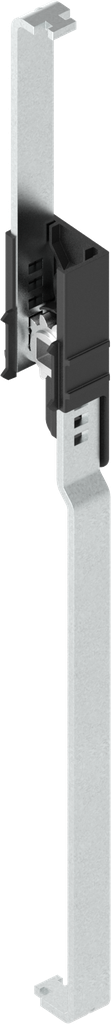

Rod control, left version, Polyamide and steel black and zinc-plated
Rod control, left version, Polyamide and steel black and zinc-plated

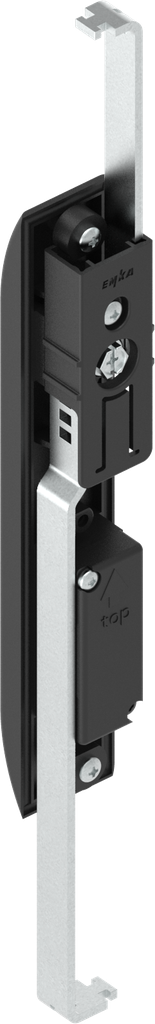

Swinghandle 1180, Polyamide and zinc die black powder-coated
Swinghandle 1180, Polyamide and zinc die black powder-coated

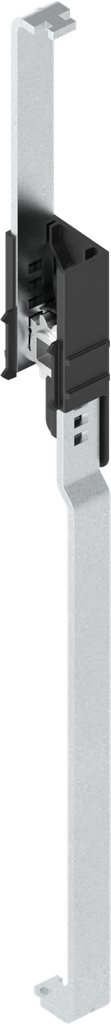

Rod control, right version, Polyamide and steel black and zinc-plated; 1180-U200-RE

https://www.emka.com/products/1180-u200-re https://www.emka.com/web/image/product.template/227278/image_1920?unique=6571c05

    This combination does not exist.

    Inside the sealing Outside the sealing Right
    Contact Us

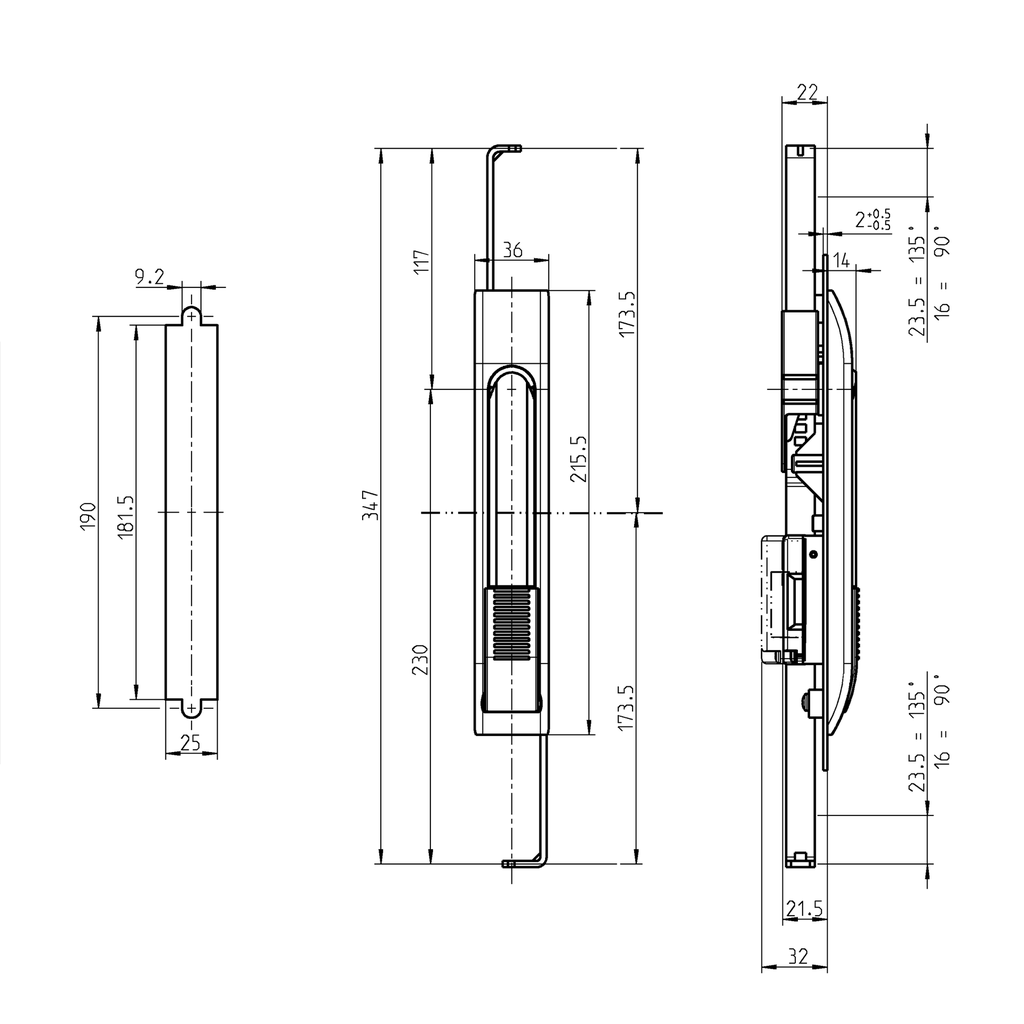

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1180-U200-RE
    Product Type: Rod control
    Program: 1180
    Catalog sheet: 3E-140
    Material of the module : Polyamide and steel
    Surface of the module: black and zinc-plated
    Rod: Flat rod
    Connection rod mount: Rivet in T-shape, stamped
    Mounting Positions : Inside the sealing,Outside the sealing
    Door Version : Right
    No Specifications
    View All Products
    Rod
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
