Escutcheon for rods with insert double bit 5, Polyamide GF black
Escutcheon for rods with insert double bit 5, Polyamide GF black
Rod control, right version, Polyamide and steel black and zinc-plated
Rod control, right version, Polyamide and steel black and zinc-plated

Rod control, left version, Polyamide and steel black and zinc-plated; 1180-U200-LI

https://www.emka.com/products/1180-u200-li https://www.emka.com/web/image/product.template/227277/image_1920?unique=6571c05

    This combination does not exist.

    Inside the sealing Outside the sealing Left
    Contact Us

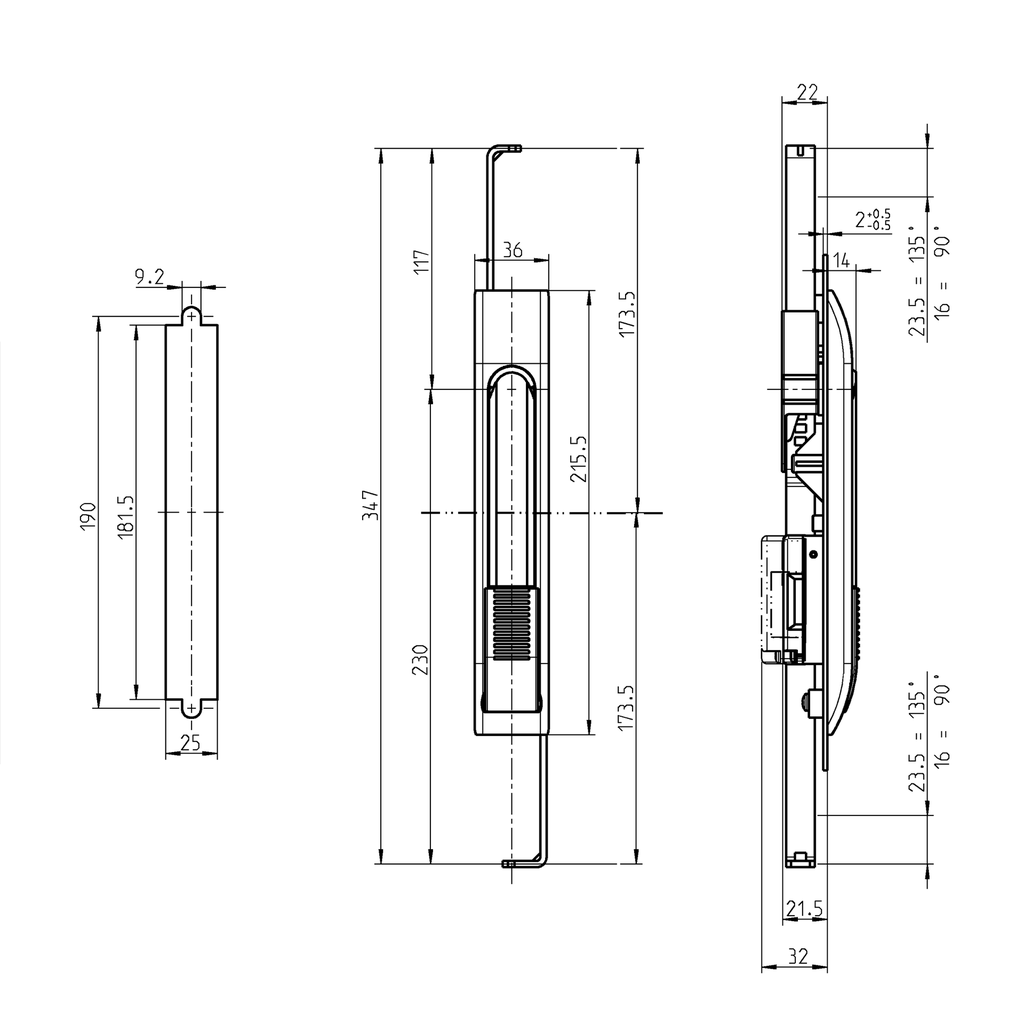

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1180-U200-LI
    Product Type: Rod control
    Program: 1180
    Catalog sheet: 3E-140
    Material of the module : Polyamide and steel
    Surface of the module: black and zinc-plated
    Rod: Flat rod
    Connection rod mount: Rivet in T-shape, stamped
    Mounting Positions : Inside the sealing,Outside the sealing
    Door Version : Left
    No Specifications
    View All Products
    Rod
    Rod control
    Here you can find the product data sheets and CAD files of this product
