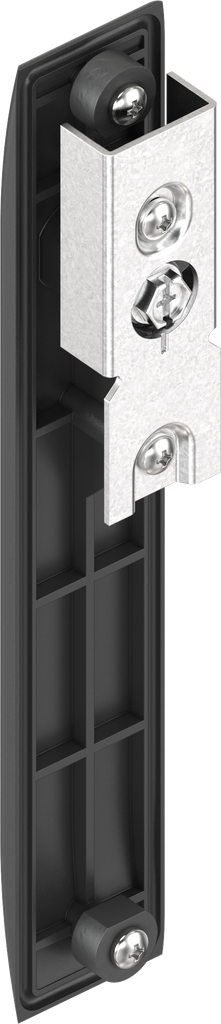

Escutcheon for rods with insert double bit 3 and mask, Polyamide GF black

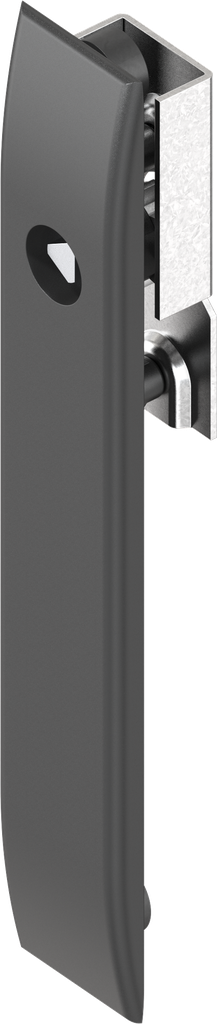

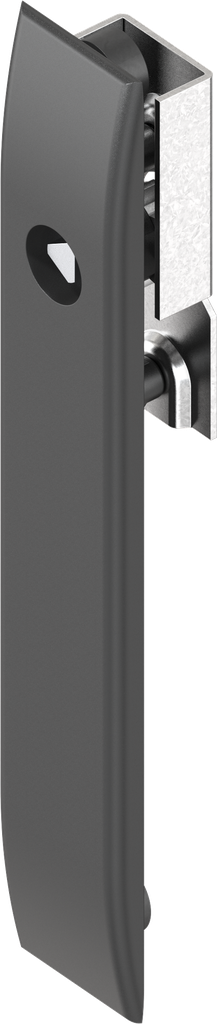

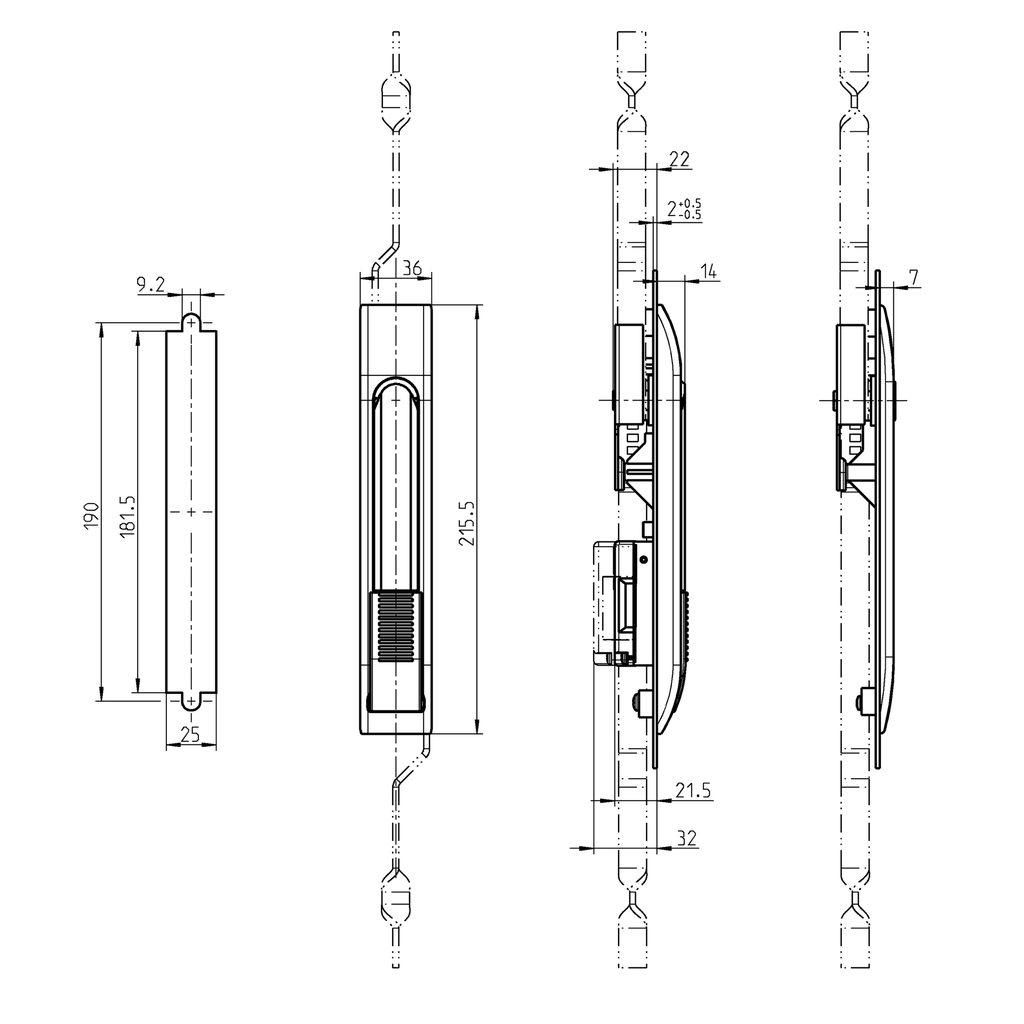

Escutcheon for rods with insert double bit 3, Polyamide GF black
Function:
Turn 135° = Stroke 23.5 mm
Turn 90° = Stroke 16 mm
Internal Reference:
1180-U108
Product Type:
Escutcheon
Program:
1180
Catalog sheet:
3E-220
Material of the module :
Polyamide GF
Surface of the module:
black
Number of Possible Locking Points:
2 points, 4 point, More than 4 points available on request
Type of actuation:
Triangular 8
Mounting Positions :
Outside the sealing
Foamed gasket:
Yes
With integrated rod control / 3-point cam:
Yes
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2.50 mm
Locking means key tag:
Insert square, triangular, Daimler Benz, slot, etc.
Locking components:
Rod control
No Specifications
