Escutcheon with rods with insert double bit 3, Polyamide GF black
Escutcheon with rods with insert double bit 3, Polyamide GF black
Escutcheon for rods with insert triangular 8, Polyamide GF black
Escutcheon for rods with insert triangular 8, Polyamide GF black

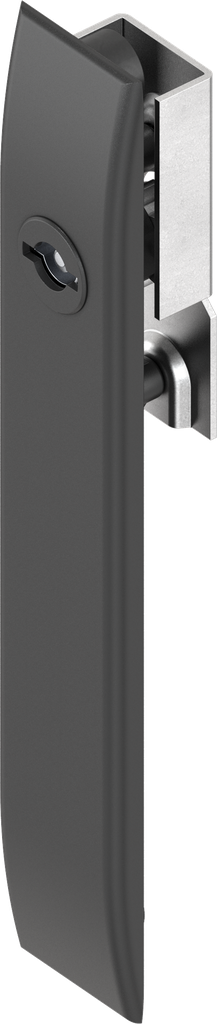

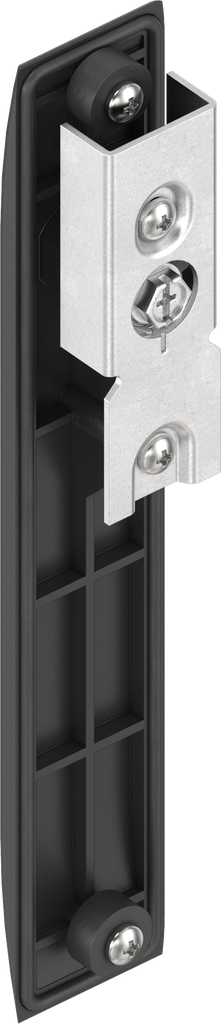

Escutcheon for rods with insert double bit 3 and mask, Polyamide GF black; 1180-U102

https://www.emka.com/products/1180-u102 https://www.emka.com/web/image/product.template/227262/image_1920?unique=4a41d6e

    This combination does not exist.

    Outside the sealing Foamed seal Protection class IP 54
    Contact Us

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1180-U102
    Product Type: Escutcheon
    Program: 1180
    Catalog sheet: 3E-220
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 2 points, 4 point, More than 4 points available on request
    Type of actuation: Double bit 3
    Mounting Positions : Outside the sealing
    Foamed gasket: Yes
    With integrated rod control / 3-point cam: Yes
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2.50 mm
    Locking means key tag: Insert double bit
    Locking components: Rod control
    No Specifications
    View All Products

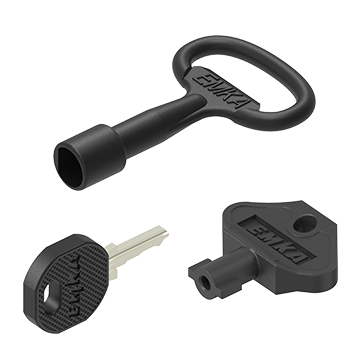

    Keys
    Rod

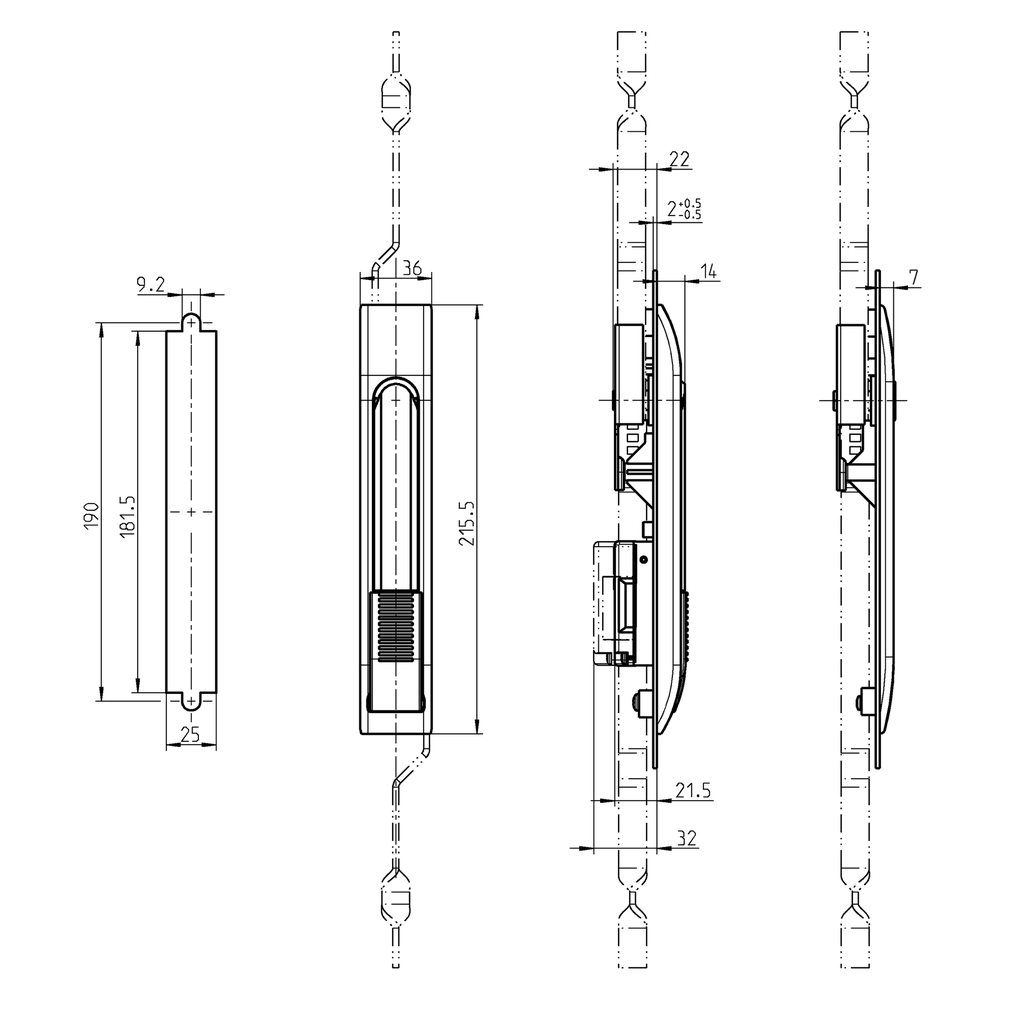

    Here you can find the product data sheets and CAD files of this product
