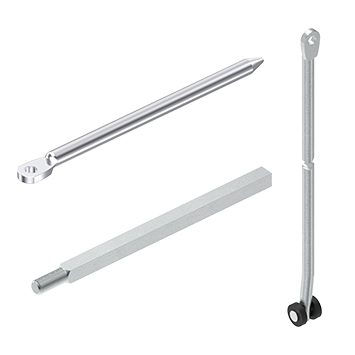

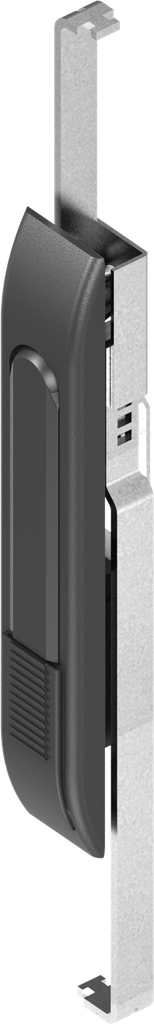

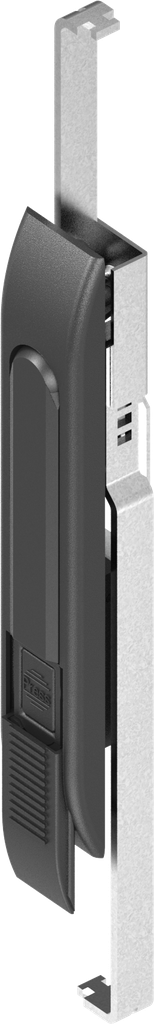

Rod with torsion for bottom, Steel zinc-plated
Escutcheon with rods with insert double bit 5, Polyamide GF black
Function:
Turn 135° = Stroke 23.5 mm
Turn 90° = Stroke 16 mm
Internal Reference:
1180-U1
Product Type:
Swinghandle, Lifthandle
Program:
1180
Catalog sheet:
3E-120
Material of the module :
Polyamide and zinc die
Surface of the module:
black powder-coated
Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
2 points, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Mounting Positions :
Inside the sealing,Outside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
With integrated rod control / 3-point cam:
Yes
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2.50 mm
Locking set modular technology:
Profile half cylinder with cap, A = 30, mounted at the dish,ASSA cylinder with cap, mounted at the dish,Push button without cap, mounted at the dish,Round cylinder without cap, mounted at the dish,Insert without cap, mounted at the dish
locking set cover:
Yes
Swivel Handle:
14 mm
Pan Handle Length:
215 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Rod control
No Specifications
View All Products

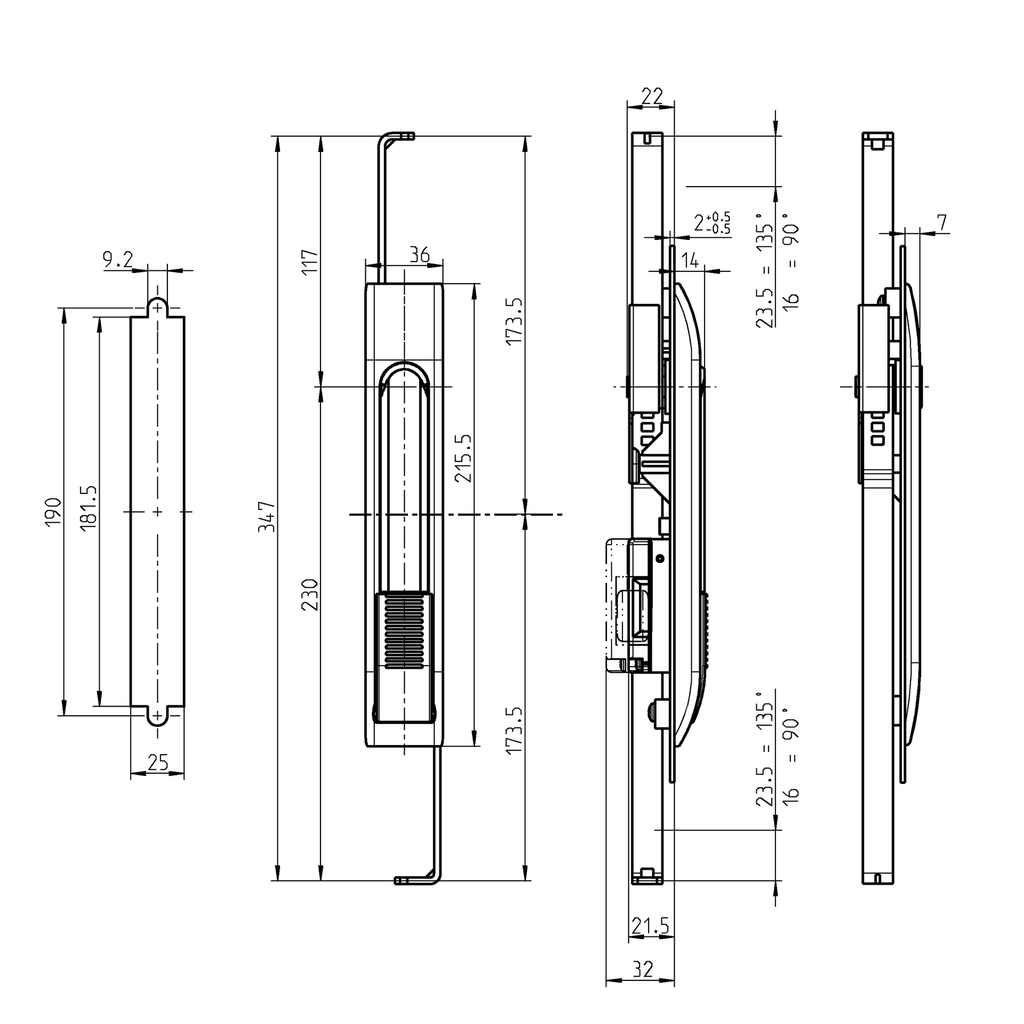

Here you can find the product data sheets and CAD files of this product
