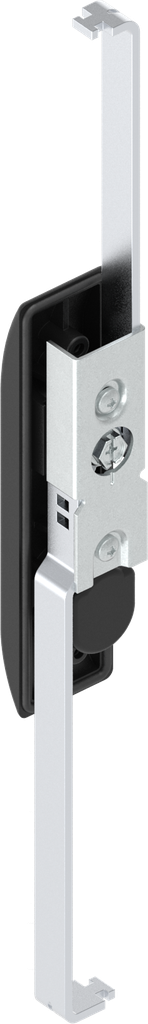

Swinghandle with rods with insert hexagon female SW 8 with pin, Zinc die black powder-coated
Swinghandle with rods with insert triangular 6.5 CNOMO, Zinc die black powder-coated

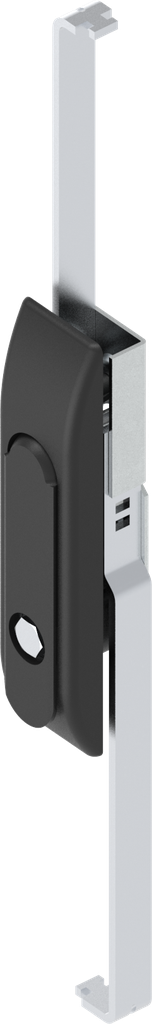

Swinghandle with rods with insert hexagon male SW 11, Zinc die black powder-coated; 1160-U30
No stock item, please ask for availability
Function:
Turn 135° = Stroke 23.5 mmTurn 90° = Stroke 16 mm
Internal Reference:
1160-U30
Standards:
Protection class IP 65
Barcode:
1160-U00030-0000000
Product Type:
Swinghandle, Lifthandle
Program:
1160
Catalog sheet:
3D-120
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
2 points, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Type of actuation:
Hexagon male SW 11
Mounting Positions :
Inside the sealing,Outside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
With integrated rod control / 3-point cam:
Yes
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2.50 mm
Locking set:
Insert
Swivel Handle:
14.5 mm
Pan Handle Length:
148 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Rod control
No Specifications
View All Products

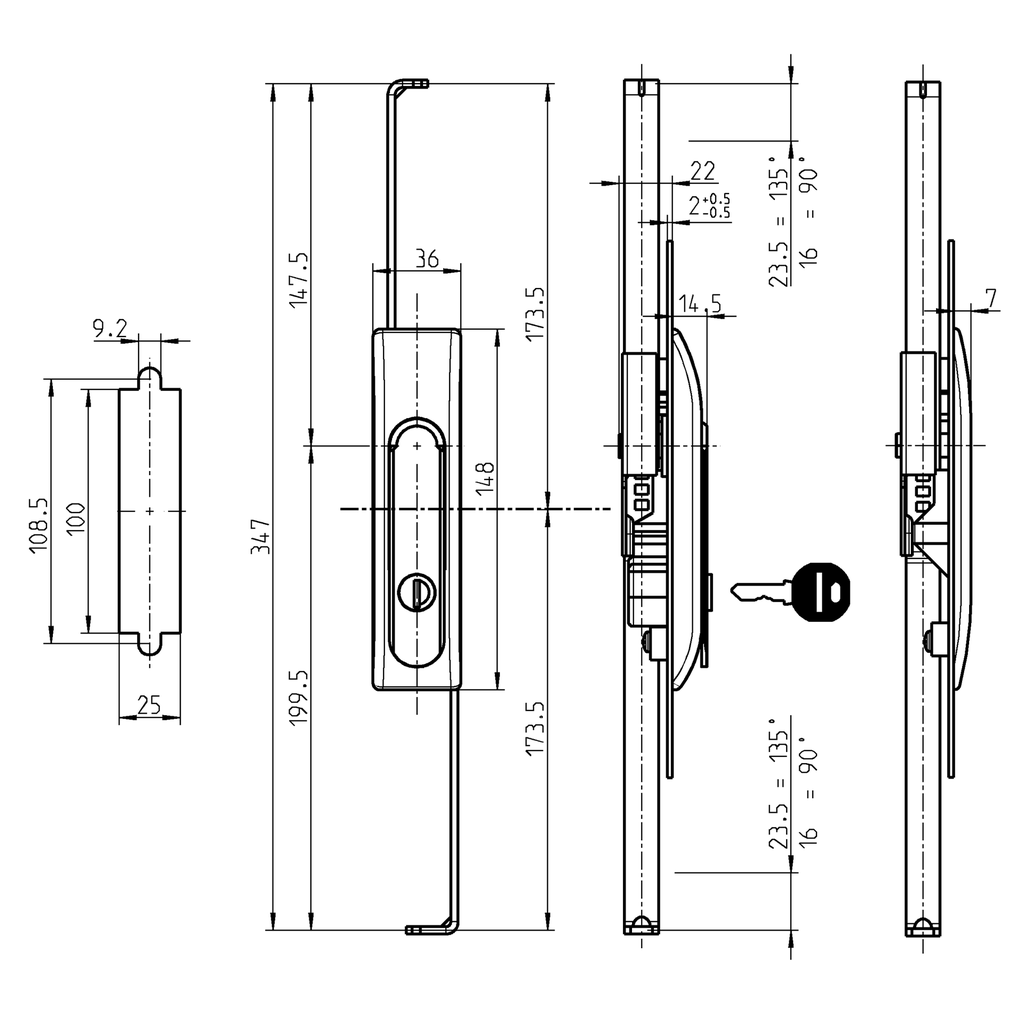

Here you can find the product data sheets and CAD files of this product
