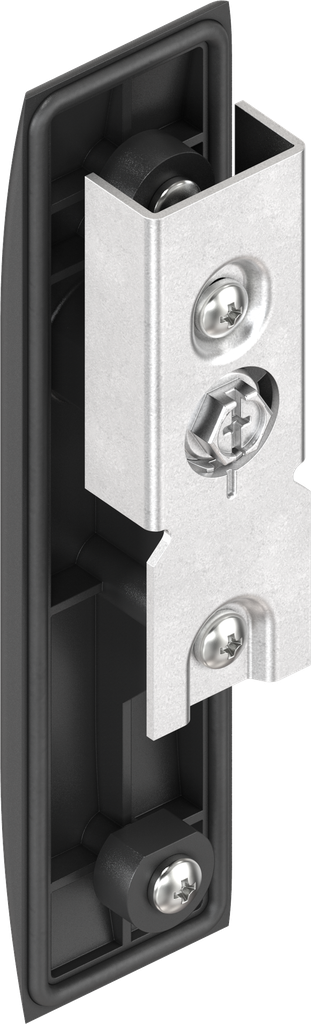

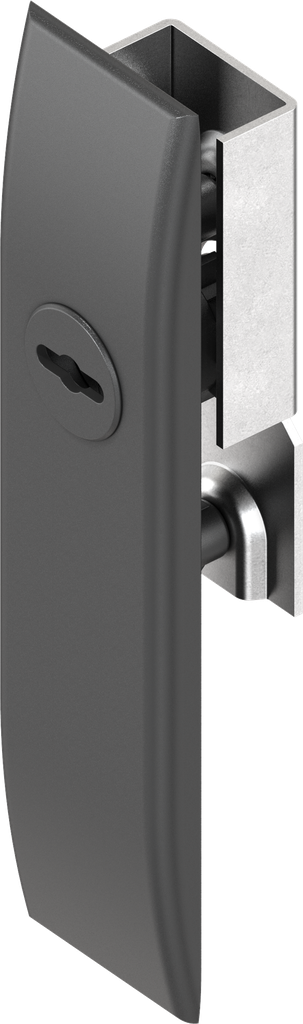

Escutcheon for rods with insert FIAT and mask, Polyamide GF black; 1160-U164

https://www.emka.com/products/1160-u164 https://www.emka.com/web/image/product.template/226984/image_1920?unique=824f0e6

    This combination does not exist.

    Outside the sealing Foamed seal Protection class IP 65
    Contact Us

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1160-U164
    Product Type: Escutcheon
    Program: 1160

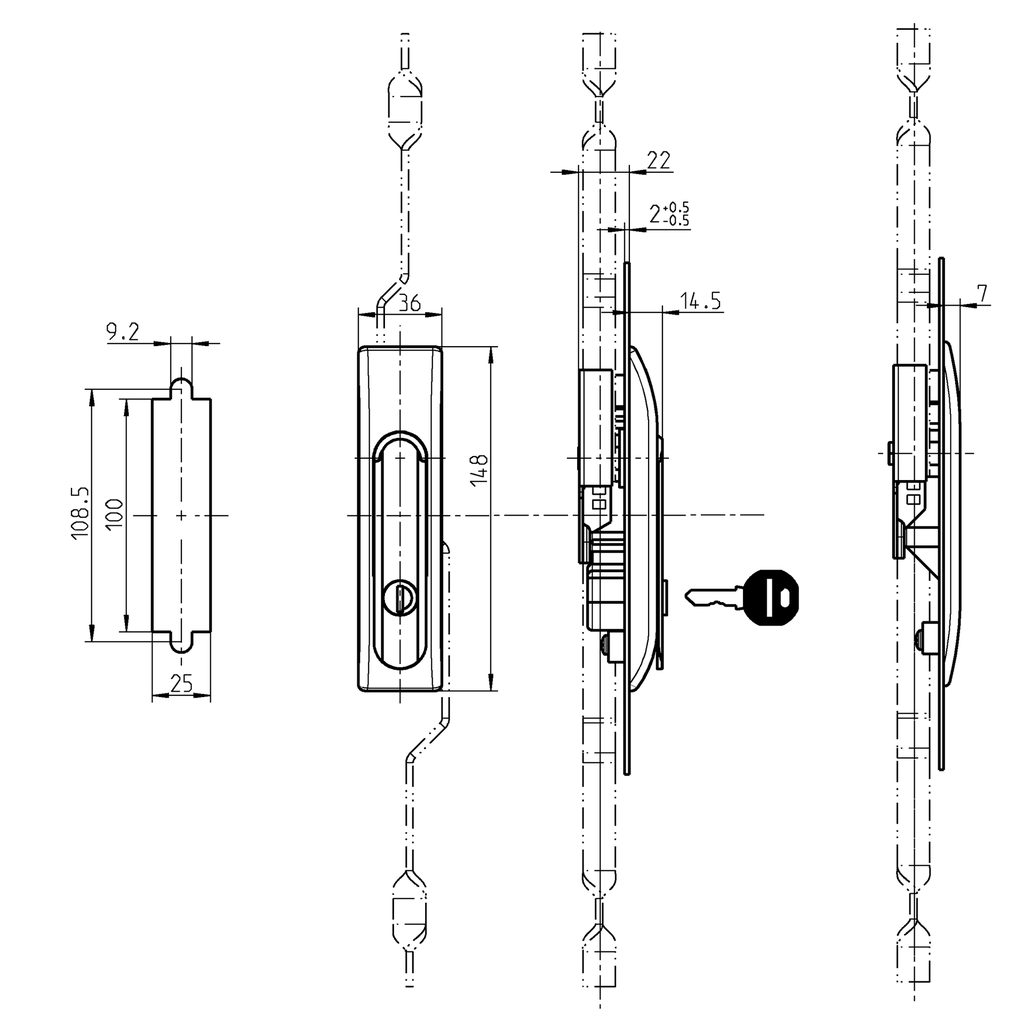

    Catalog sheet: 3D-220
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 2 points, 4 point, More than 4 points available on request
    Type of actuation: Fiat
    Mounting Positions : Outside the sealing
    Foamed gasket: Yes
    With integrated rod control / 3-point cam: Yes
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2.50 mm
    Locking means key tag: Insert FIAT
    Locking components: Rod control
    No Specifications
    View All Products
    Keys
    Rod
    Here you can find the product data sheets and CAD files of this product
