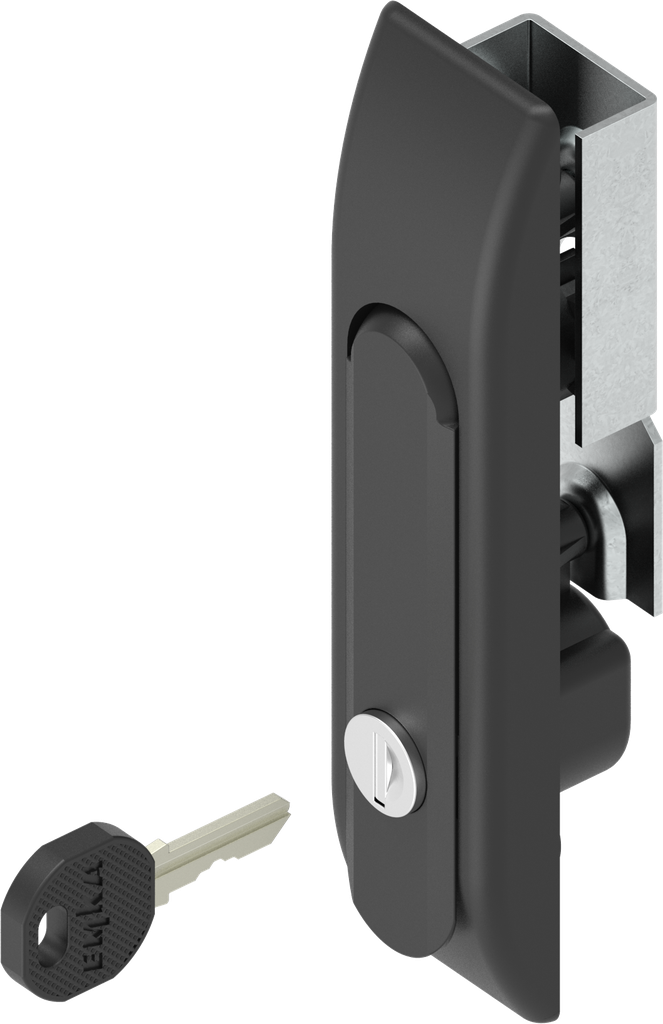

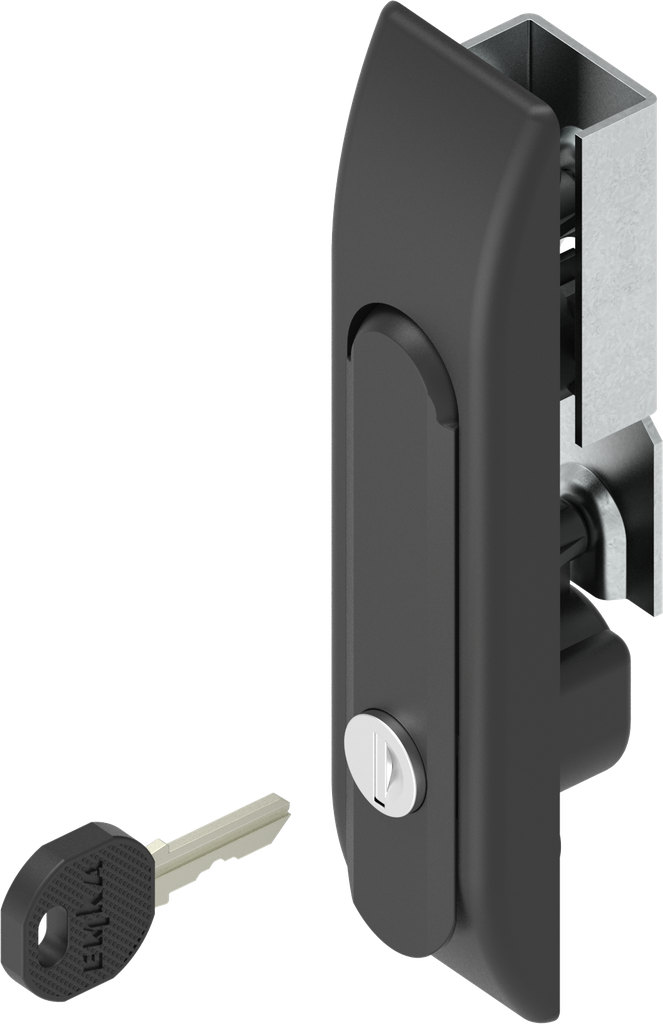

Swinghandle with rods, keyed different, Zinc die black powder-coated
Rod with torsion for top, Steel zinc-plated
Function:
Turn 135° = Stroke 23.5 mm
Turn 90° = Stroke 16 mm
Internal Reference:
1160-U101
Product Type:
Swinghandle, Lifthandle
Program:
1160
Catalog sheet:
3D-220
Material of the module :
Polyamide and zinc die
Surface of the module:
black powder-coated

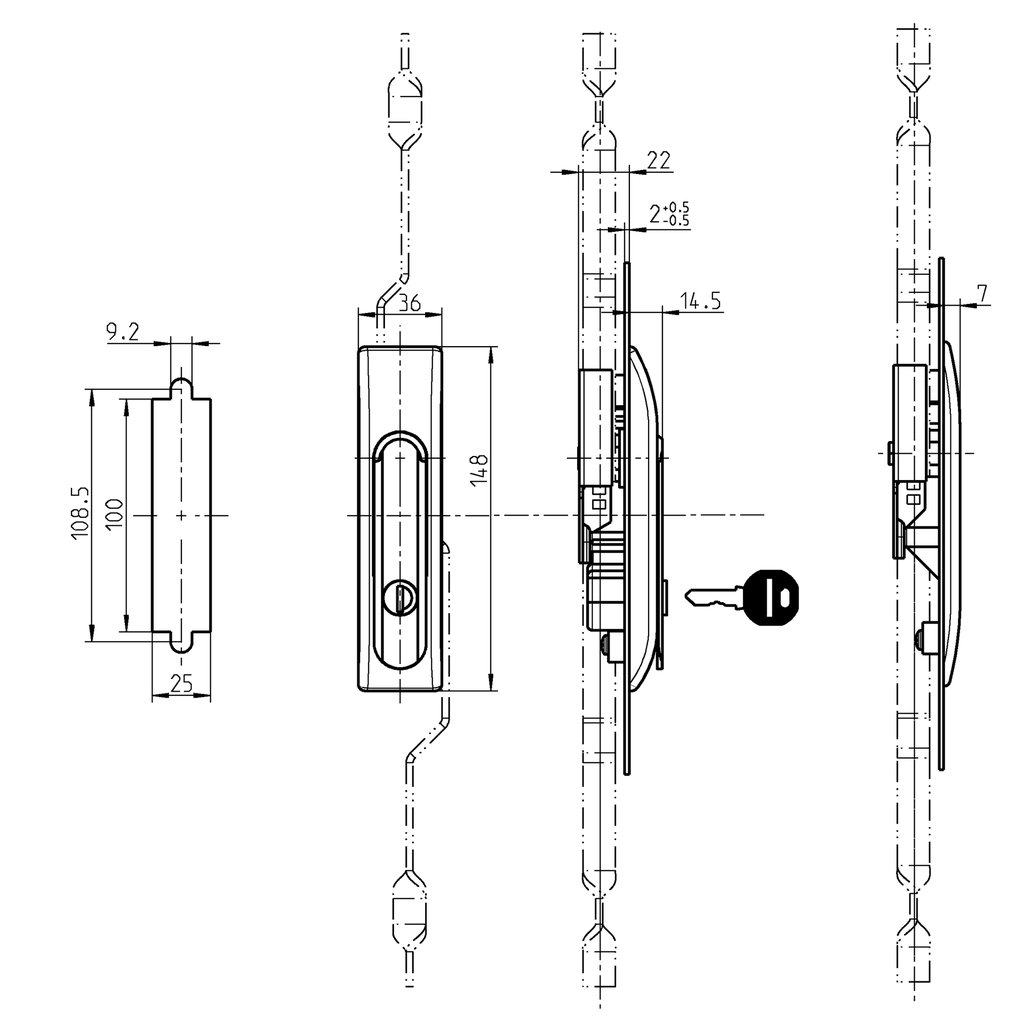

Dimension A, Variable:
25 mm
Number of Possible Locking Points:
2 points, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Mounting Positions :
Outside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
With integrated rod control / 3-point cam:
Yes
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2.50 mm
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking set:
Round cylinder
Swivel Handle:
14.5 mm
Pan Handle Length:
148 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Rod control
