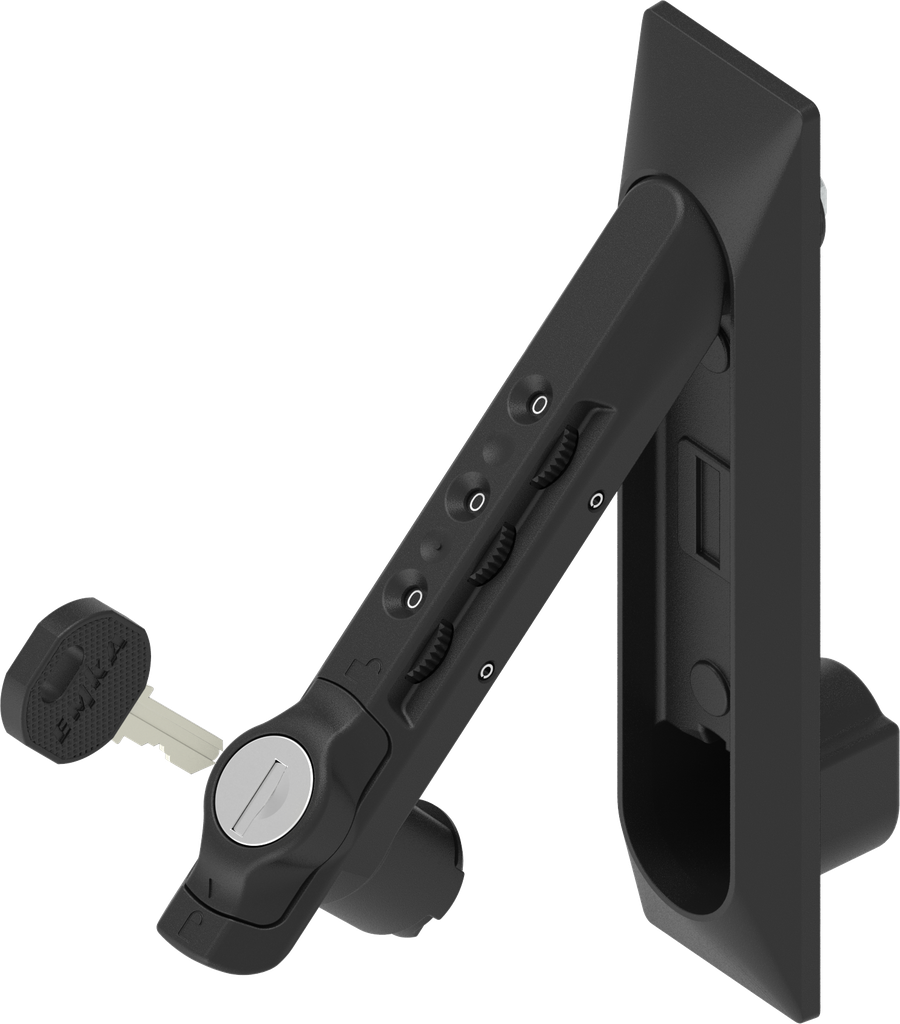

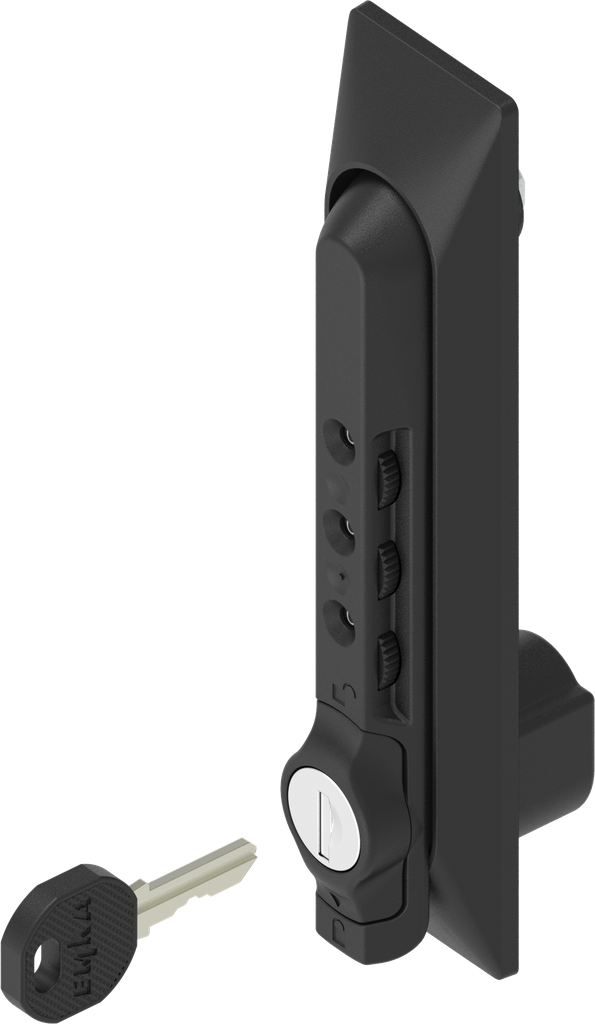

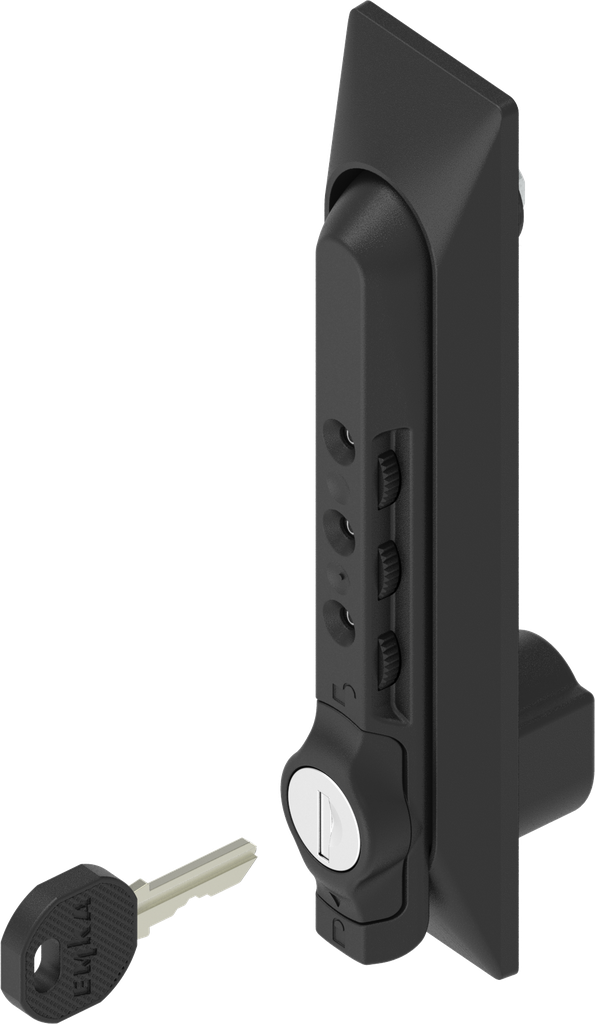

Swinghandle 1155 with universal dish with combination lock and keyed different, Polyamide GF black; 1155-U2-11
Product information:
Swinghandle with two locking sets

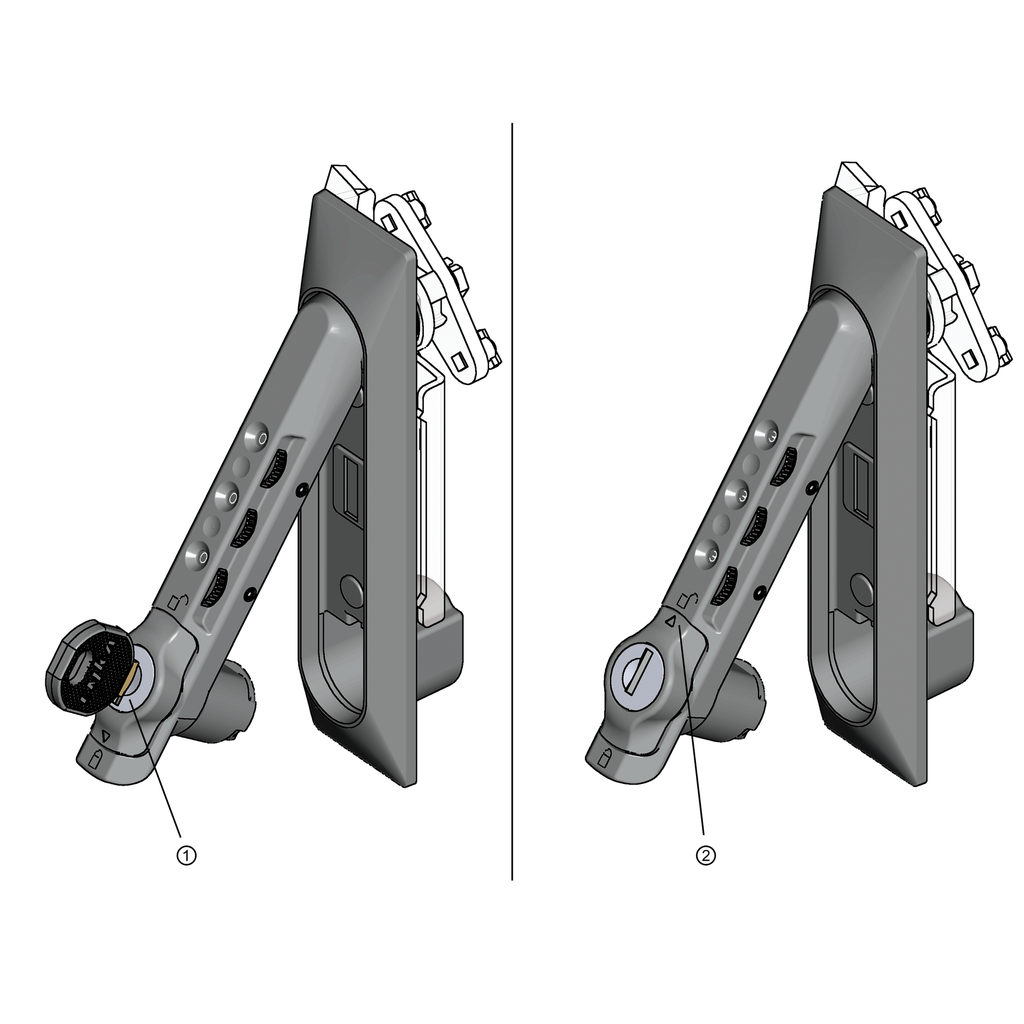

① = Option 1:
Release using round cylinder. Operation as with usual swinghandles of Program 1150. The combination lock remains untouched.
② = Option 2:
Release using combination lock and wing knob.
The round cylinder remains locked. The arrow on the wing knob indicates the open or closed position.
Please order fixing material separately!

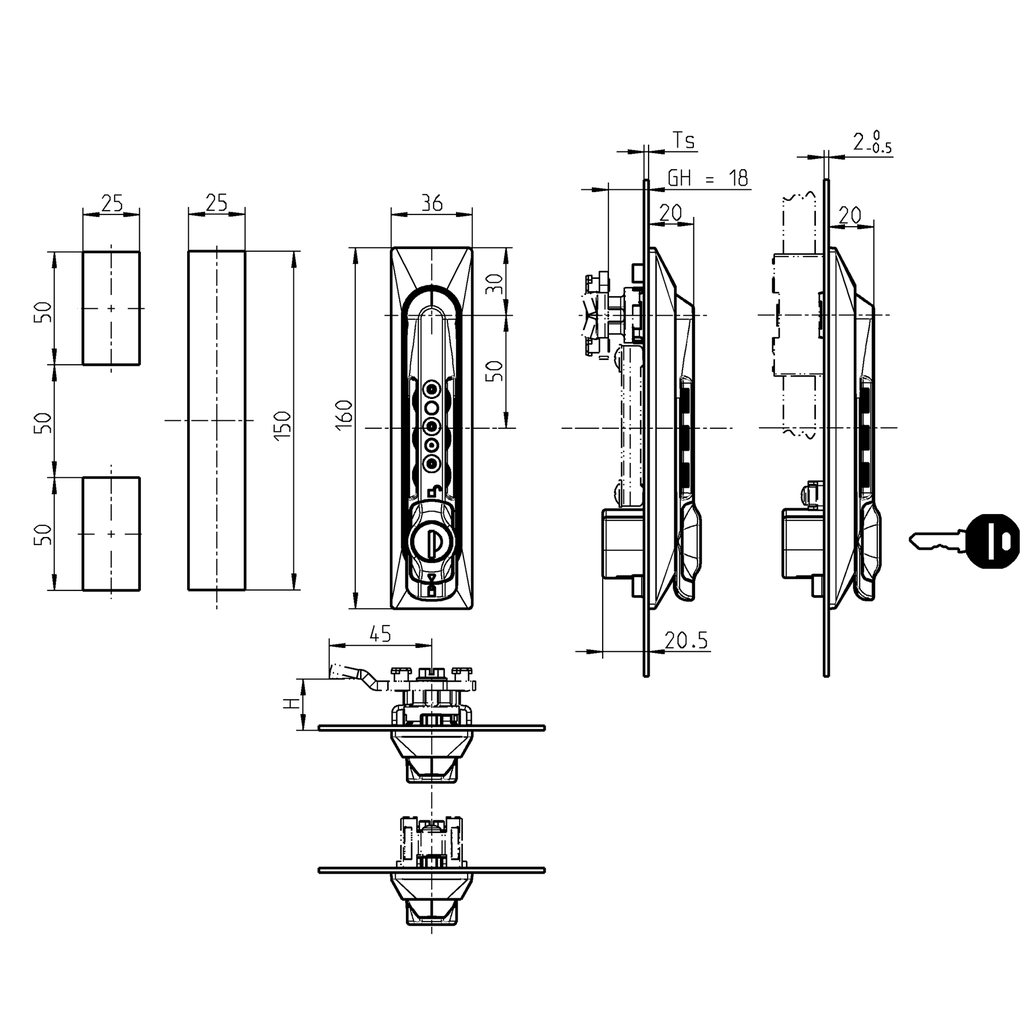

Ts = 1 to 3 mm depending on the fixing material
On request:
- Key of round cylinder not removable in open position
- Other insert
Internal Reference:
1155-U2-11
Product Type:
Swinghandle, Lifthandle
Program:
1155
Catalog sheet:
3C-750
Material of the module :
Polyamide GF
Surface of the module:
black
Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
Two locking sets, 1-key-operation
Article with property rights:
Yes
Mounting Positions :
Inside the sealing,Outside the sealing
Foamed gasket:
Yes
GH Mass:
18 mm
Handle Art(1):
Swinghandle
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
3 mm
Round Cylinder Type:
EMKA EK, differently keyed
Locking set:
Round cylinder,Combination lock
Swivel Handle:
20 mm
Pan Handle Length:
160 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam,Rod control
